12-inch automatic exhaust shutter

12-Inch Automatic Exhaust Shutter

SKU:
WBB484671
Model/MPN:
556-STD-12
Our Price:
$77.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: US
Product Depth: 16
Product Height: 3
Product Type: Louvers & Vents
Product Width: 16.5
Quantity Included: 1
Manufacturer Part Number: 556-STD-12
Inside Width: 12 in
Inside Height: 12 in
Max Pressure In W.G.: 1 in
Max Velocity (per Minute): 2500 ft/min
Rough Opening: 12-1/2 X 12-1/2 in
Brand Name: Air Conditioning Products
Finish: Mill Finish
Flange Style: Rear Flange
Manufacturers Part Number: 556-STD-12
Material: Aluminum/Galvanized Steel
Mounting Location: Vertical
Mounting Position: Vertical
Type: Gravity Shutters
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: US
Product Depth: 16
Product Height: 3
Product Type: Louvers & Vents
Product Width: 16.5
Quantity Included: 1
Manufacturer Part Number: 556-STD-12
Inside Width: 12 in
Inside Height: 12 in
Max Pressure In W.G.: 1 in
Max Velocity (per Minute): 2500 ft/min
Rough Opening: 12-1/2 X 12-1/2 in
Brand Name: Air Conditioning Products
Finish: Mill Finish
Flange Style: Rear Flange
Manufacturers Part Number: 556-STD-12
Material: Aluminum/Galvanized Steel
Mounting Location: Vertical
Mounting Position: Vertical
Type: Gravity Shutters
Shipping Method: Parcel

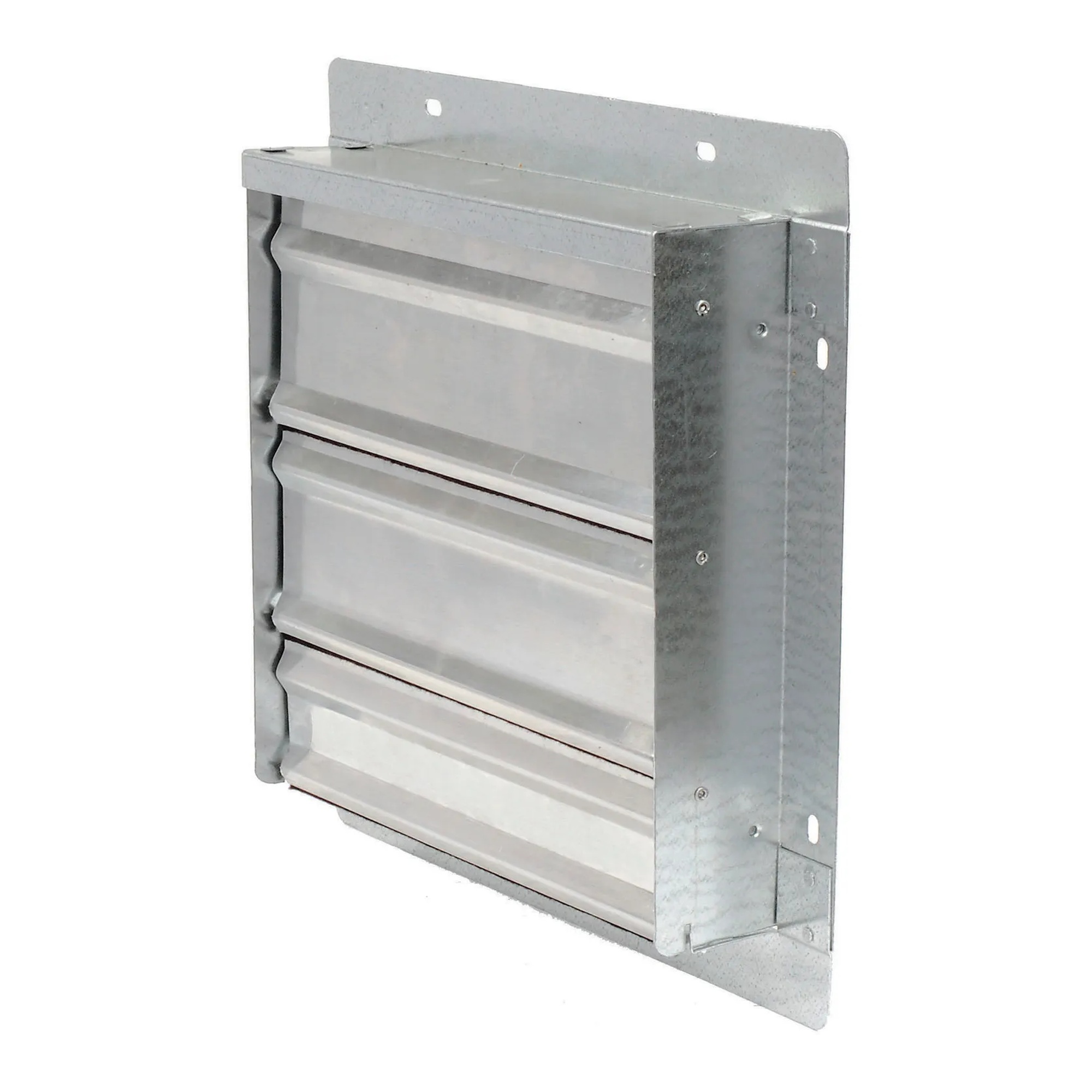

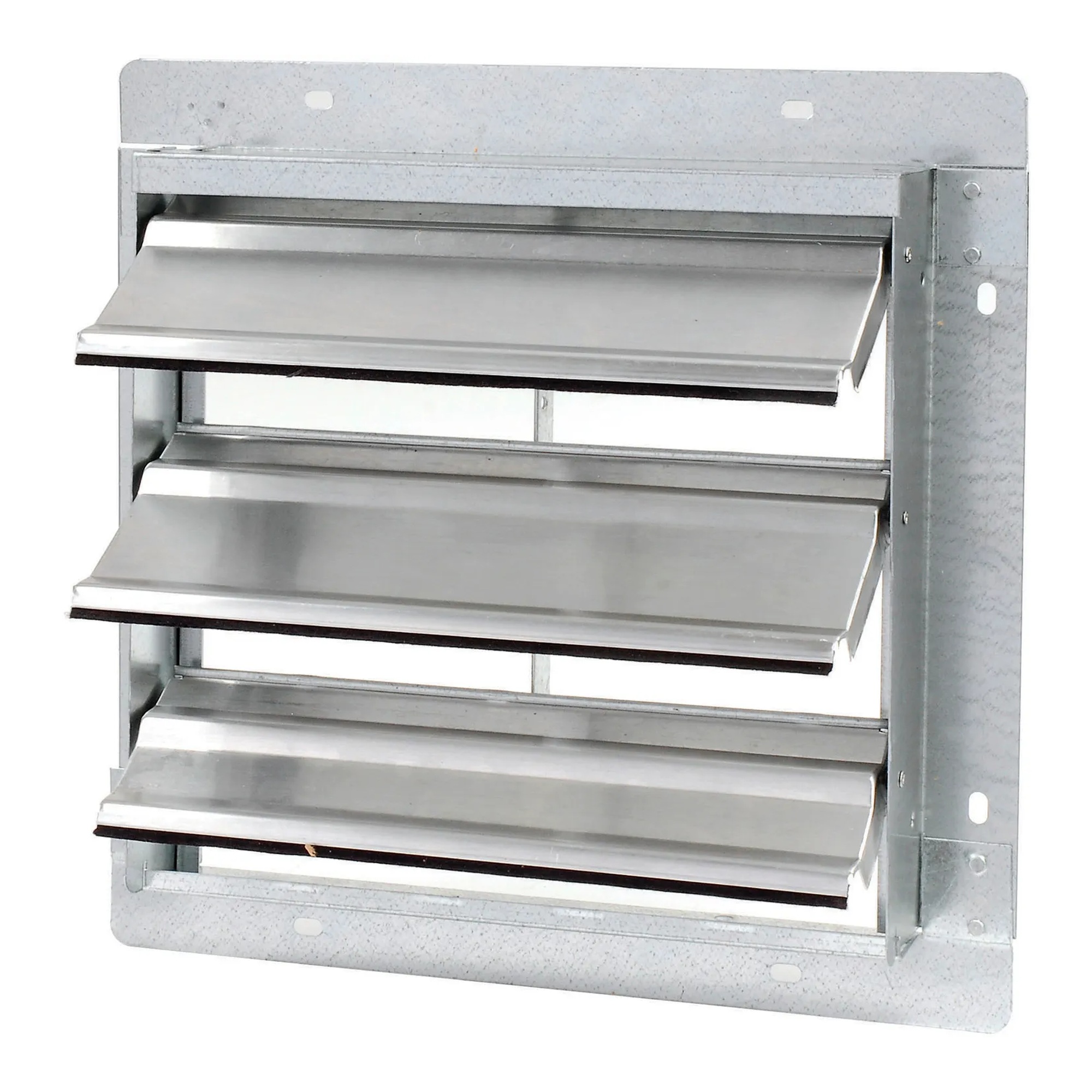

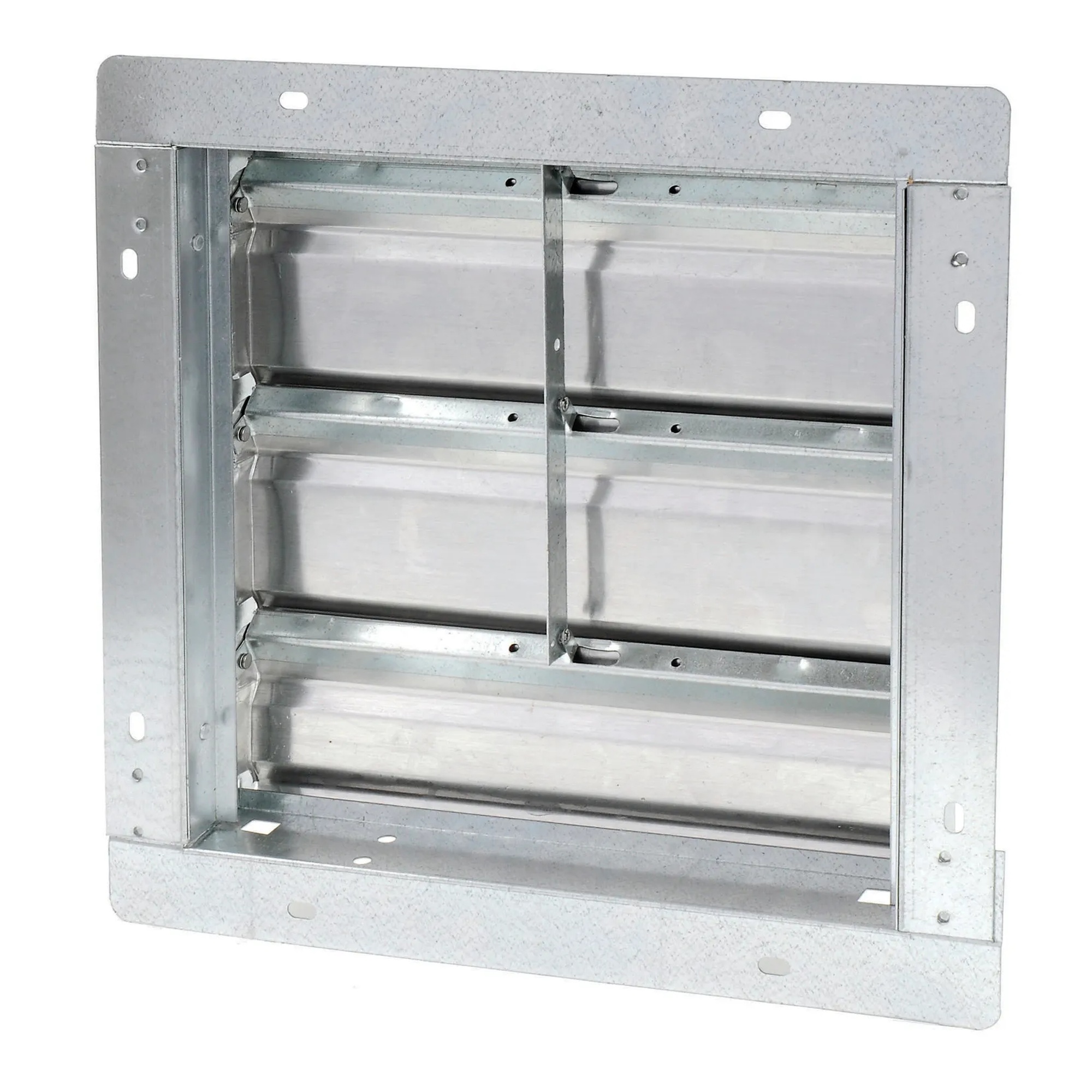

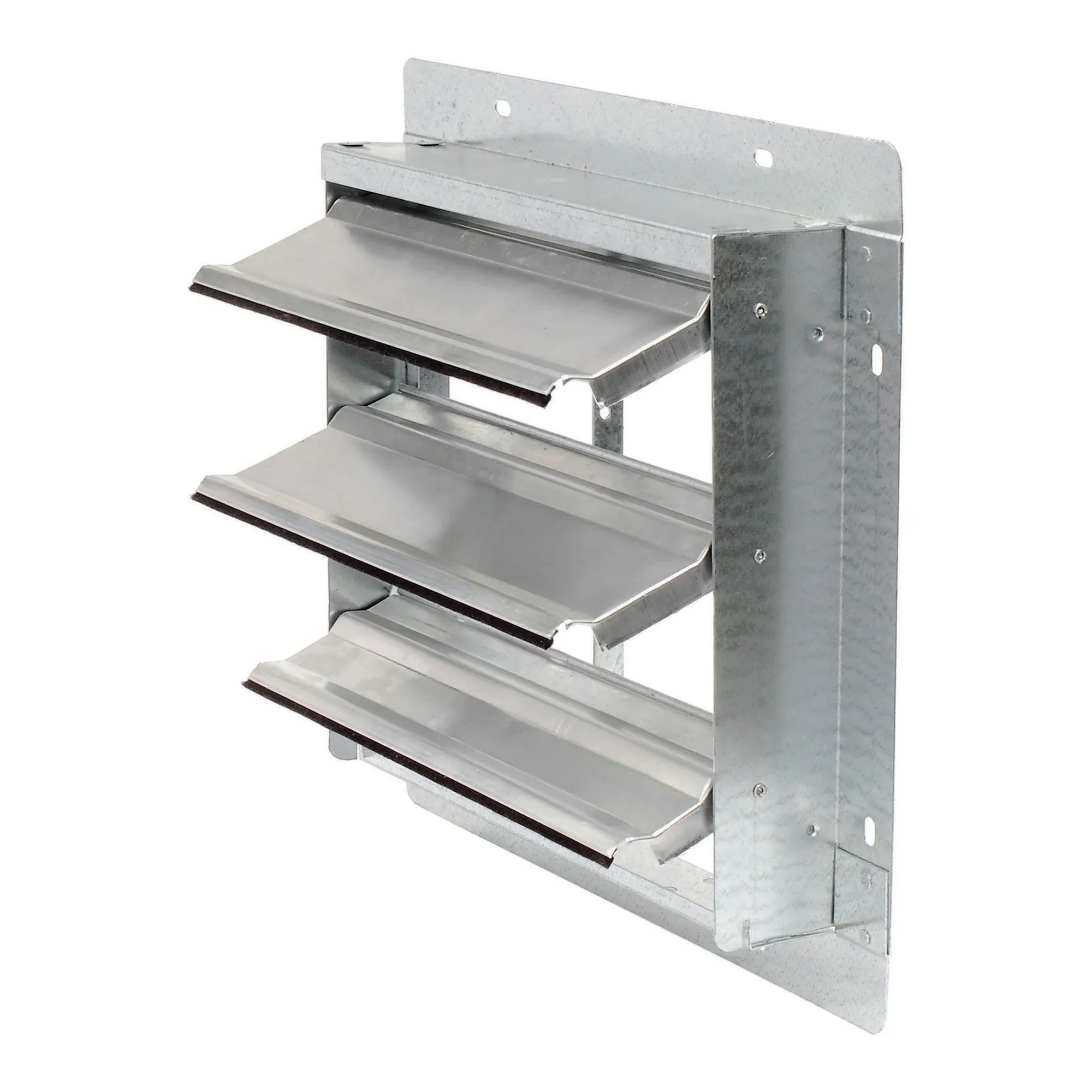

This automatic exhaust shutter is for commercial buyers using compatible exhaust fans to support one-way horizontal airflow. It opens as airflow begins and closes when the fan stops to help block reverse airflow and environmental exposure.

The counterbalanced, rear-flanged shutter has gravity-closing blades and can be mounted vertically at angles up to 45 degrees. Its flanged ends provide added weather protection. Compatible with direct-drive and belt-driven exhaust fans; do not use with vane axial or tube axial fans. Overall dimensions are 16.5 in. W x 16 in. D x 3 in. H.

Key Features:

  • Automatic blade operation: Blades open with airflow and close by gravity after fan shutdown.
  • One-way airflow control: Helps permit horizontal airflow in one direction while limiting reverse airflow.
  • Counterbalanced design: Allows vertical mounting at angles up to 45 degrees.
  • Rear flanges: Adds weather protection at the shutter ends.
  • Exhaust fan compatibility: Works with direct-drive and belt-driven exhaust fans.

Choose this 12-inch automatic shutter for compatible direct-drive or belt-driven exhaust fan installations that need airflow-actuated opening and gravity closure.

Country of Origin: US
Product Depth: 16
Product Height: 3
Product Type: Louvers & Vents
Product Width: 16.5
Quantity Included: 1
Manufacturer Part Number: 556-STD-12
Inside Width: 12 in
Inside Height: 12 in
Max Pressure In W.G.: 1 in
Max Velocity (per Minute): 2500 ft/min
Rough Opening: 12-1/2 X 12-1/2 in
Brand Name: Air Conditioning Products
Finish: Mill Finish
Flange Style: Rear Flange
Manufacturers Part Number: 556-STD-12
Material: Aluminum/Galvanized Steel
Mounting Location: Vertical
Mounting Position: Vertical
Type: Gravity Shutters
Shipping Method: Parcel
Width: 16.00 in
Height: 3.00 in
Depth: 16.50 in
!
