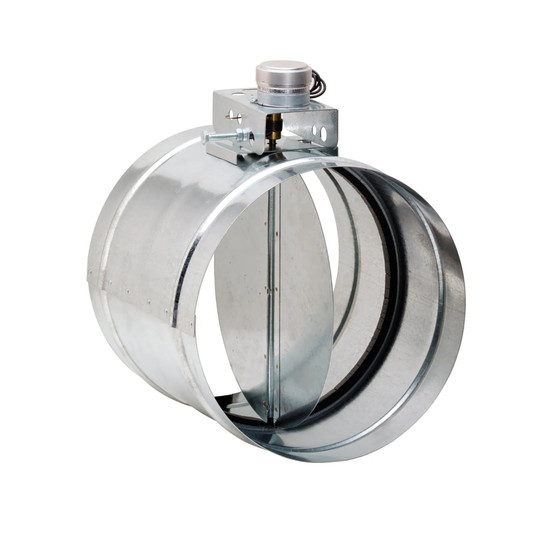

10-Inch 24V Motorized Shut-Off Damper

This 10-inch motorized shut-off damper is designed for ventilation professionals and facility maintenance teams who need to control airflow in compatible duct systems. It opens when powered and returns to a closed position when power is removed to help shut off airflow.

The two-position damper operates on 24V AC and has no end switch. Its motor powers the damper open, while a spring-return mechanism closes it normally. Power wiring connects to lead wires on the damper motor, and a tight seal provides positive closure. The unit measures 12 inches wide, 12 inches deep, and 11 inches high.

Key Features:

• 24V AC operation: Supports operation with a 24V AC power supply.
• Spring-return closing: Returns the damper to its normally closed position when power is removed.
• Two-position design: Provides straightforward open-and-close airflow control.
• Tight-seal closure: Helps provide positive shutoff when the damper is closed.
• Motor lead wires: Provides a direct connection point for power-supply wiring.

Choose this motorized damper for compatible 10-inch ventilation applications requiring powered opening and spring-return closure.
