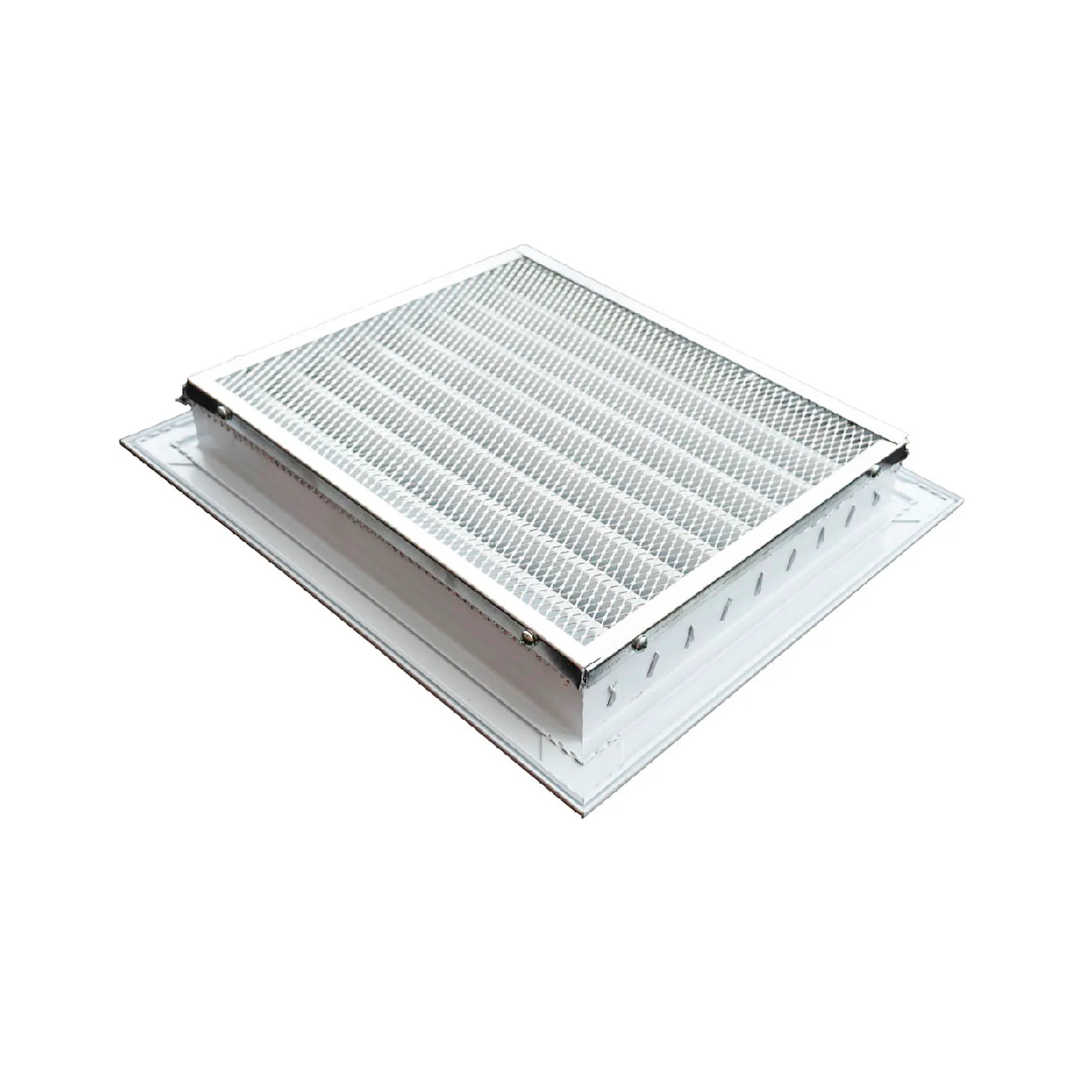

This exterior return air grille is designed for HVAC installers and facility maintenance teams finishing a 32 x 18 inch sidewall duct opening. It provides a louvered outdoor return-air entry point while helping block rain and adding screen-mesh protection.
Built with rust-free extruded aluminum and a high-resistance electrostatic white paint finish, this grille is intended strictly for outdoor sidewall installation. Its louvered blade design is waterproof and rain-blocking, with rear screen mesh included. The grille fits a 32 x 18 inch duct hole, has listed overall dimensions of 34 x 20 x 4 inches, and includes two installation screws.
Key Features:
Choose this white aluminum grille for outdoor sidewall return-air openings sized for a 32 x 18 inch duct hole.
| Color/Finish: | White |
| Country of Origin: | CO |
| Material: | Aluminum |
| Product Depth: | 34" |
| Product Height: | 4" |
| Product Type: | Diffusers, Grilles, & Registers |
| Product Width: | 20" |
| Quantity Included: | 1 |
| Shipping Weight: | 12 lbs |
| Manufacturer Part Number: | L-RA-LP-A BS 32X18 |
| Color: | White |
| Length: | 33-5/8 in |
| Width: | 19-5/8 in |
| Height: | 33-5/8 in |
| Weight: | 10.7 lbs |

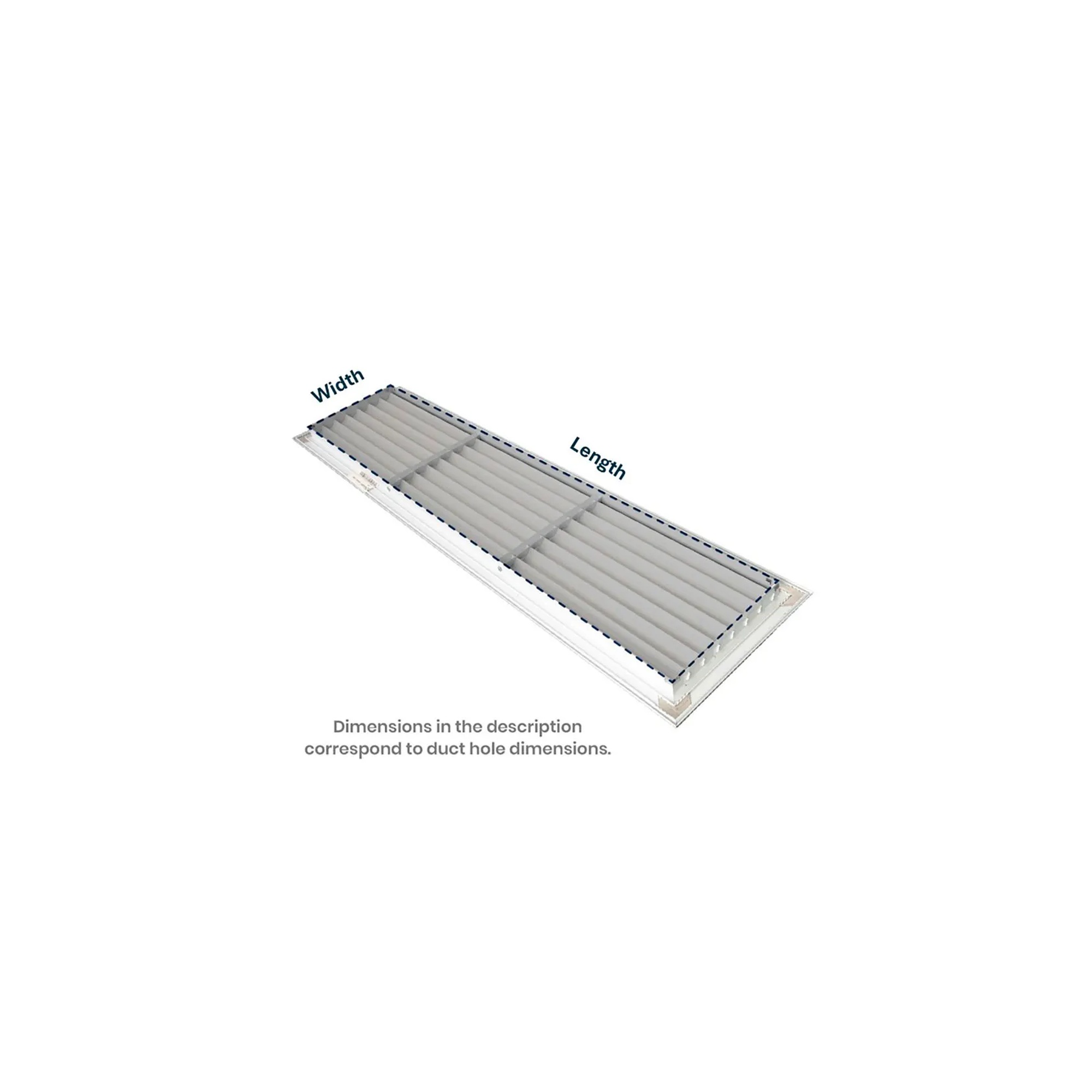

| Max Duct Height: | 32 in |
| Nominal Size: | 32 x 18 in |
| Opening Length: | 32 in |
| Opening Width: | 18 in |
| Outside Thickness: | 1-21/32 in |
| Thickness: | 1-21/32 in |
| Brand: | ACLAMINAIRE |
| Louvers: | Fixed parallel Blades |
| Manufacturers Part Number: | L-RA-LP-A BS 32X18 |
| Package Quantity: | 1 |
| Type: | Grille |
| Width: | 34.00 in |
| Height: | 4.00 in |
| Depth: | 20.00 in |
