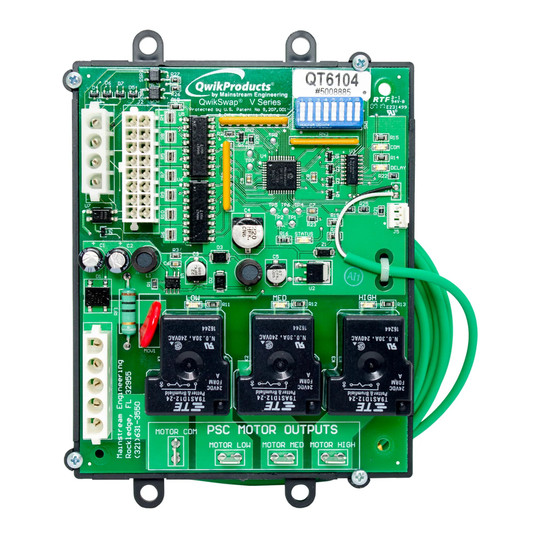

This universal replacement board helps HVAC technicians replace a failed variable-airflow ECM motor with a permanent split capacitor (PSC) motor while retaining variable blower airflow capability.

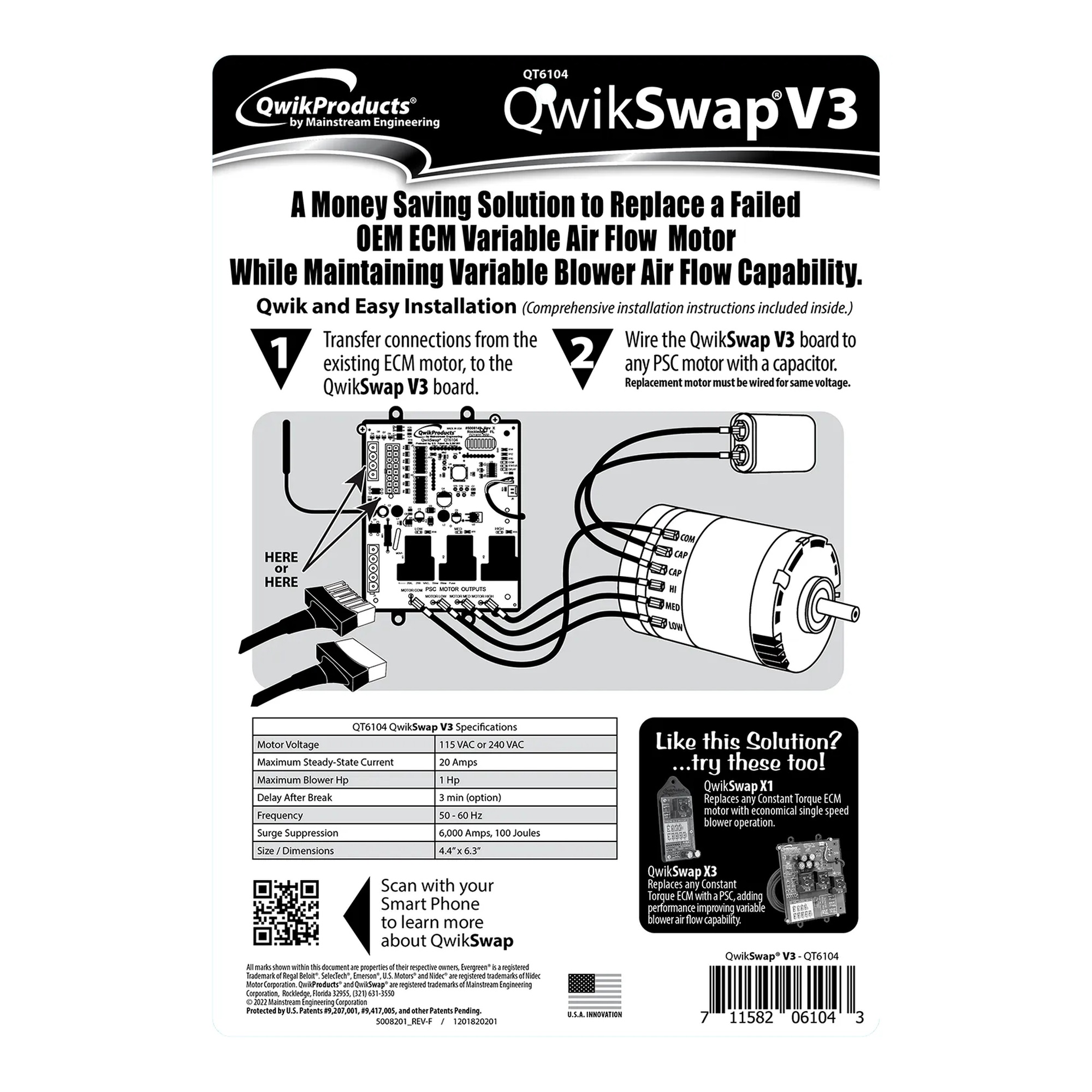

The board is designed for replacing ECM 2.0, 2.3, 2.5, or 3.0 motors. Installation involves transferring wires from the failed ECM motor to the board, then connecting the replacement PSC motor’s common lead, three speed power leads, and a capacitor. It operates with single-phase 120 or 240 VAC PSC motors up to 1 horsepower. Product dimensions are 9 in. W x 13 in. D x 11 in. H.
Key Features:
Choose this replacement board when converting a failed compatible variable-airflow ECM motor to a PSC motor while preserving variable blower airflow operation.
| Country of Origin: | US |
| Phase: | 1 |
| Product Depth: | 9" |
| Product Height: | 11" |
| Product Type: | Fan Controls |
| Product Width: | 13" |
| Quantity Included: | 5 |
| Shipping Weight: | 4 lbs |
| Manufacturer Part Number: | QT6104 |
| Weight: | 2 lbs |
| Brand: | Qwik Products |
| Description: | QwikSwap V3 Universal Variable Airflow ECM replacement board |
| Manufacturers Part Number: | QT6104 |
| Width: | 9.00 in |
| Height: | 11.00 in |
| Depth: | 13.00 in |
No additional information available.
