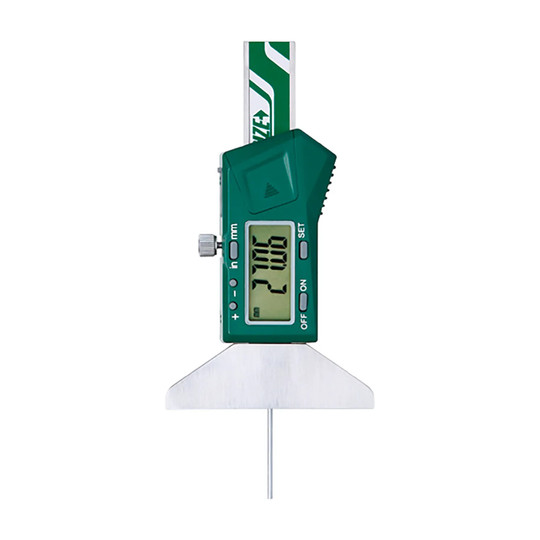

Mini Electronic Depth Gage with Round Bar, 0-1 in./0-25 mm Range

This mini electronic depth gage helps inspection and shop professionals measure the depth of small grooves and holes. Its compact design supports precise depth checks in detailed workpieces.

The stainless steel gage measures from 0 to 1 inch (0 to 25 mm) with a resolution of 0.0005 inch (0.01 mm). It has a round bar, inch/mm conversion, preset capability, and data output. On/off and set controls support operation, while automatic power-off and motion-based power-on help manage battery use. It uses one CR2032 battery.

Key Features:

• Fine resolution: Reads depth measurements in 0.0005 inch or 0.01 mm increments for detailed inspection work.
• Dual-unit display: Lets users switch between inch and metric readings as needed.
• Small-feature measurement: Designed to check the depth of small grooves and holes.
• Preset function: Allows a reference value to be set for repeat measurement tasks.
• Data output: Supports connection to compatible data-output accessories.
• Stainless steel construction: Provides a durable measuring tool for regular shop and inspection use.

Choose this electronic depth gage when compact depth measurement, fine resolution, and inch or metric readouts are needed for small grooves and holes.
