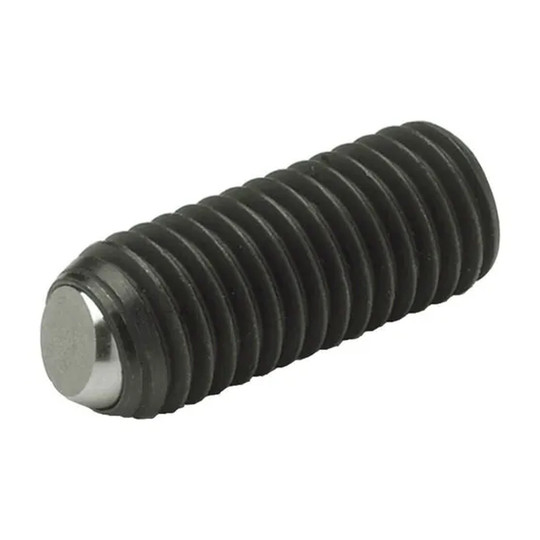

This flat ball set screw is for users who need to clamp or support non-parallel workpiece surfaces. Its movable, flat-faced ball helps hold the workpiece in position during clamping while helping prevent indentation.
The screw has an M8 x 1.25 thread and a 25 mm thread length. A flat-faced movable ball contacts the workpiece, and the screw is driven with an Allen or hex key.
Key Features:
Choose this M8 set screw when a flat movable contact point is needed for clamping or supporting non-parallel workpiece surfaces.
| Country of Origin: | Import |
| Product Depth: | 1" |
| Product Height: | 6" |
| Product Type: | Set Screws |
| Product Width: | 10" |
| Quantity Included: | 1 |
| Shipping Weight: | 11 lbs |
| Manufacturer Part Number: | 605-M8-25-B |
| Length: | 20 mm yd |
| A/F: | 4mm |
| Flat Ball Diameter: | 4.5mm |
| Size: | M8 x 1.25 |
| Thread Length: | 25mm in |
| Unit of Measurement: | Metric |
| Ball Material: | Hardened Steel |
| Brand: | J.W. Winco |
| Finish: | Black Oxide |
| Grade: | Grade 10.9 |
| Manufacturers Part Number: | 605-M8-25-B |
| Material: | Alloy Steel/Hardened Steel |
| Package Quantity: | 1 |
| Set Screw Body Material: | Alloy Steel |
| Type: | Flat Ball Set Screw |
| Certifications: | ASTM A490 |
| Width: | 1.00 in |
| Height: | 6.00 in |
| Depth: | 10.00 in |
No additional information available.
