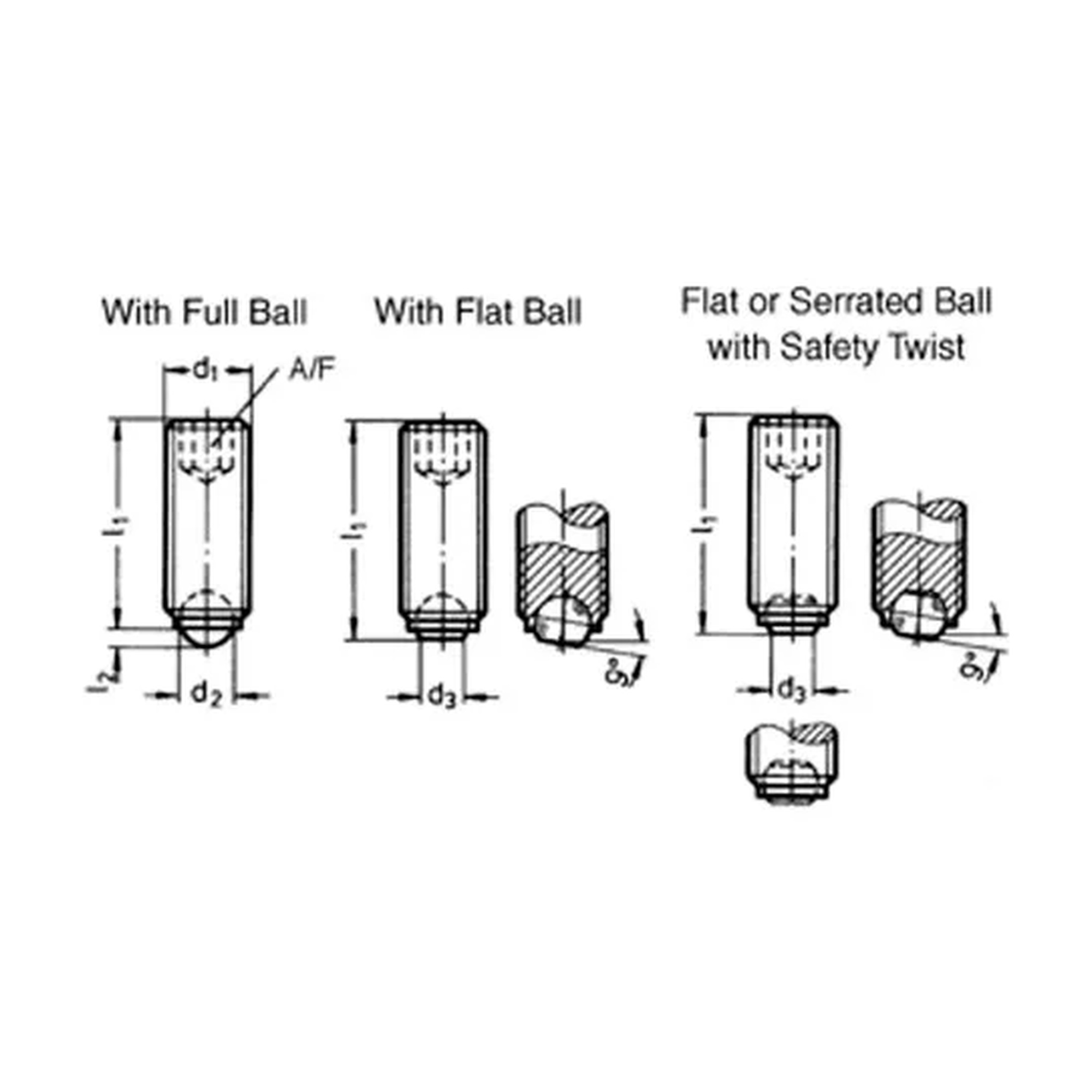

This socket set screw is for commercial buyers and assembly professionals who need to clamp a flat-faced ball while limiting its rotation. Its safety-twist design helps keep the ball positioned for consistent clamping.
The screw has an M10 x 1.5 thread and a 20 mm thread length. Its flat-faced ball is designed to rotate no more than 9 degrees, allowing full clamping of the ball. The screw is driven with an Allen or hex key.
Key Features:
Choose this set screw when an M10 x 1.5 thread, 20 mm thread length, and controlled flat-ball movement are required.
| Country of Origin: | Import |
| Product Depth: | 1 |
| Product Height: | 6 |
| Product Type: | Set Screws |
| Product Width: | 10 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 605-M10-20-V |
| Length: | 20 mm yd |
| A/F: | 5mm |
| Flat Ball Diameter: | 6mm |
| Size: | M10 x 1.5 |
| Thread Length: | 20mm in |
| Unit of Measurement: | Metric |
| Ball Material: | Hardened Steel |
| Brand Name: | J.W. Winco |
| Finish: | Black Oxide |
| Grade: | Grade 10.9 |
| Manufacturers Part Number: | 605-M10-20-V |
| Material: | Alloy Steel/Hardened Steel |
| Package Quantity: | 1 |
| Set Screw Body Material: | Alloy Steel |
| Type: | Flat Ball Set Screw |
| Certifications: | ASTM A490 |
| Shipping Method: | Parcel |
| Width: | 1.00 in |
| Height: | 6.00 in |
| Depth: | 10.00 in |
No additional information available.
