4-Output 0-10 VDC Track-Mount Staging Relay Module

SKU:
FS-GLO-RIBMN24Q4C-PX
Brand:
RIB
Model/MPN:
RIBMN24Q4C-PX
Our Price:
$155.94
Shipping & Availability:
  • Fast Shipping: Lead time: 7 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating

Product Specifications:
Country of Origin: US
Product Depth: 2.75
Product Height: 1.75
Product Type: Panel
Product Width: 4.95
Quantity Included: 1
Length: 4.95 in
Amperage: 15 A
Contact Type: 4 SPDT
Description: Panel I/O Expander
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Number of Relays: 4
Operating Temperature: -30° To 140°F
Voltage: 24VAC/DC, 0-10VDC V
Warranty: 1 yr
Certifications: UL/cUL
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .

Product Specifications:
Country of Origin: US
Product Depth: 2.75
Product Height: 1.75
Product Type: Panel
Product Width: 4.95
Quantity Included: 1
Length: 4.95 in
Amperage: 15 A
Contact Type: 4 SPDT
Description: Panel I/O Expander
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Number of Relays: 4
Operating Temperature: -30° To 140°F
Voltage: 24VAC/DC, 0-10VDC V
Warranty: 1 yr
Certifications: UL/cUL
Shipping Method: Parcel

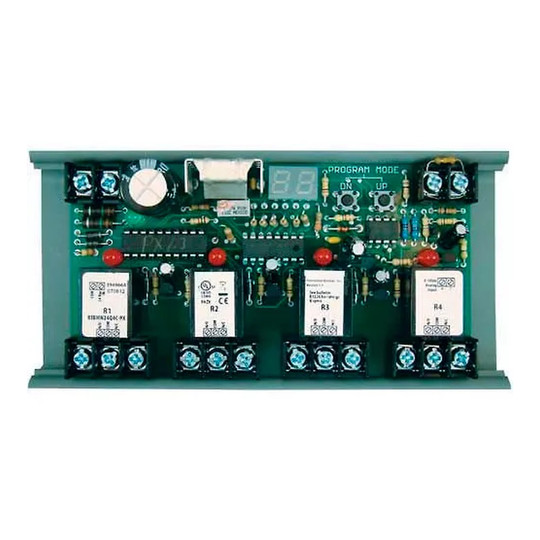

This track-mount relay module is for control professionals using a controller or thermostat to operate four relay outputs from one 0-10 VDC analog signal. It provides adjustable staging thresholds so each relay can be set to turn on and off at selected control voltages.

The module has four SPDT relay outputs and a 15A rating. It accepts 24 VAC/DC power and a 0-10 VDC control input. A field-selectable digital display supports setup without adjustment pots or a voltmeter. It measures 2.75 in. wide, 4.95 in. deep, and 1.75 in. high.


Key Features:

  • Four SPDT outputs: Allows one analog control signal to operate four relay outputs.
  • Adjustable staging thresholds: Lets users set individual on and off voltages for each relay.
  • 24 VAC/DC input: Supports systems with 24 VAC or DC power input.
  • Digital display: Helps simplify field setup without adjustment pots or a voltmeter.
  • Track-mount design: Provides a compact mounting format for control-panel installations.

Choose this module when four relay outputs need to be staged from a single 0-10 VDC controller or thermostat signal with adjustable switching thresholds.

Country of Origin: US
Product Depth: 2.75
Product Height: 1.75
Product Type: Panel
Product Width: 4.95
Quantity Included: 1
Length: 4.95 in
Amperage: 15 A
Contact Type: 4 SPDT
Description: Panel I/O Expander
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Number of Relays: 4
Operating Temperature: -30° To 140°F
Voltage: 24VAC/DC, 0-10VDC V
Warranty: 1 yr
Certifications: UL/cUL
Shipping Method: Parcel
Width: 2.75 in
Height: 1.75 in
Depth: 4.95 in
