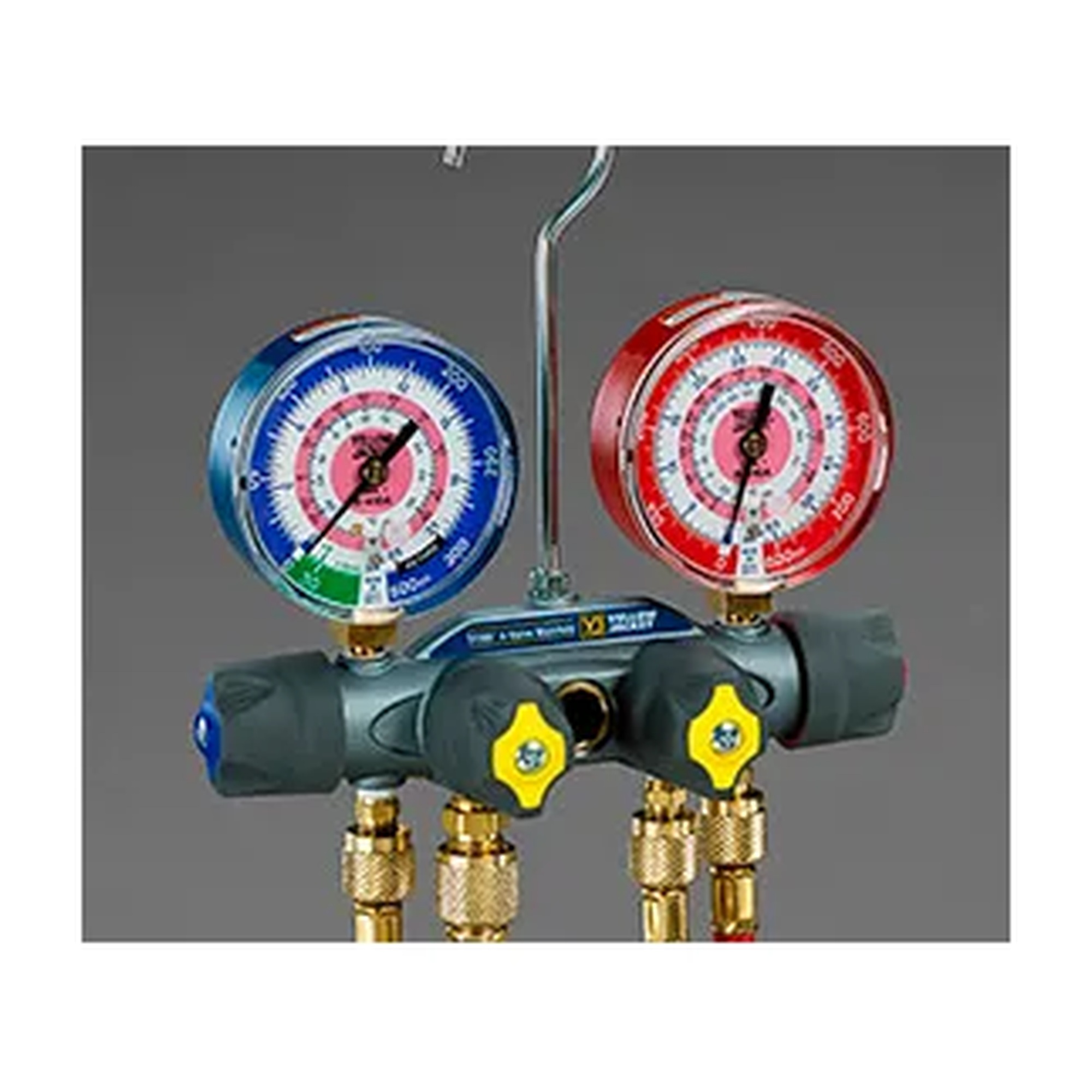

Four-Hose HVAC Manifold with 60 in. RYB Hoses

This HVAC manifold is for service technicians performing refrigerant diagnostics, evacuation, charging, and recovery work. Its four-hose configuration helps connect high- and low-side lines, a refrigerant tank, and a recovery unit or vacuum pump without changing hoses.

The manifold has a forged aluminum alloy body, 60 in. RYB hoses, and a 3/8 in. x 45-degree connection. A 3/8 in. vacuum port accommodates a larger hose, while the remaining fittings are 1/4 in. It includes 3-1/8 in. steel-case red and blue Class 1 gauges, a double O-ring piston, an in-line 100-mesh filter on all flare fittings, a sight glass, color-coded contoured handles, and a heavy-duty hook. Overall dimensions are 12.5 in. W x 13.25 in. D x 6 in. H.

Key Features:

• Four-hose setup: Allows connections for service tasks without switching hoses.
• 3/8 in. vacuum port: Supports use of a larger vacuum hose for evacuation work.
• 3-1/8 in. gauges: Provides large red and blue gauge faces for easier reading.
• In-line 100-mesh filters: Helps keep particulate material out of flare fittings and extend seat life.
• Sight glass: Lets technicians monitor refrigerant movement and condition during charging and recovery.
• Color-coded grip handles: Helps provide positive control and ready identification.

This manifold is suited to HVAC service work that calls for a four-hose arrangement, a larger vacuum port, and clear monitoring of refrigerant flow.
