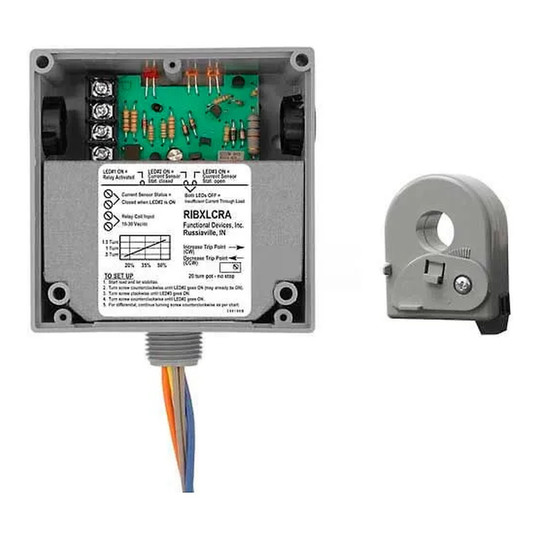

This enclosed solid-core AC current sensor and relay combination is for electrical professionals who need to sense current and control connected loads in one unit. Its integrated design eliminates the need for an external current ring, helping simplify installation.
The unit features an adjustable current-sensing trigger point, a 10A SPDT relay, and a 10–30 VAC/DC rating. It can control and sense loads up to 20 amps and measures 4 inches wide by 4 inches deep by 1.8 inches high.
Key Features:
Choose this enclosed sensor-relay combination when an adjustable solid-core AC sensing solution with integrated relay control is needed.
| Country of Origin: | US |
| Product Depth: | 4" |
| Product Height: | 1.8" |
| Product Type: | Relays |
| Product Width: | 4" |
| Quantity Included: | 1 |
| Shipping Weight: | 827 lbs |
| Manufacturer Part Number: | RIBXLCRA |
| Length: | 4 in |
| Width: | 4 in |
| Height: | 1.8 in |
| Wire Size: | 16 in |
| Amperage: | 10 A |
| Brand: | RIB |
| Contact Type: | SPDT |
| Description: | Enclosed Solid-Core AC Sensor W/Relay |
| Humidity Range: | 5 To 95 Percent (Noncondensing) |
| Manufacturers Part Number: | RIBXLCRA |
| Number of Relays: | 1 |
| Operating Temperature: | -30° To 140°F |
| Threshold: | Adjustable |
| Voltage: | 10-30VAC/DC V |
| Wire Rating: | 600V |
| Warranty: | 1 yr |
| Certifications: | UL/cUL |
| Width: | 4.00 in |
| Height: | 1.80 in |
| Depth: | 4.00 in |
No additional information available.
This enclosed solid-core AC current sensor relay is for electrical professionals who need to monitor AC current and provide SPST switching for connected control circuits. Its adjustable sensing range...
This enclosed solid-core AC current sensor relay is for electrical professionals who need to detect AC current and add a switching function in electrical control work. Its fixed wire leads support...
This enclosed solid-core AC current sensor relay is for electrical control installations that need to detect AC current and provide SPST switching. It helps control-system buyers and installers...
This enclosed solid-core AC current sensor relay is for electrical professionals who need to detect current flow and provide a switching output in control applications. It senses AC current from 0.25...

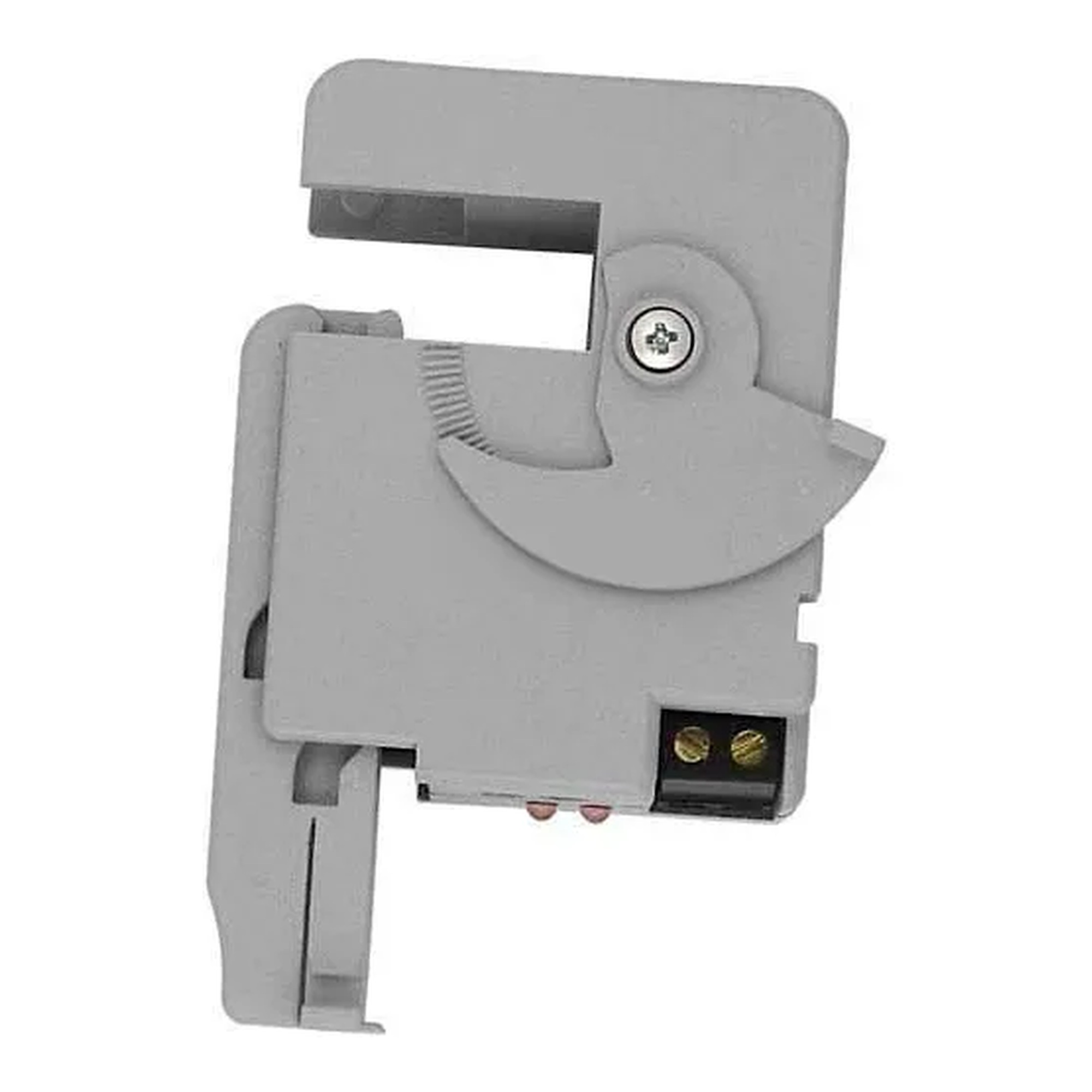

This enclosed split-core AC current sensor is for electrical professionals who need to monitor AC current and provide a control signal for connected equipment. Its adjustable sensing range supports...
