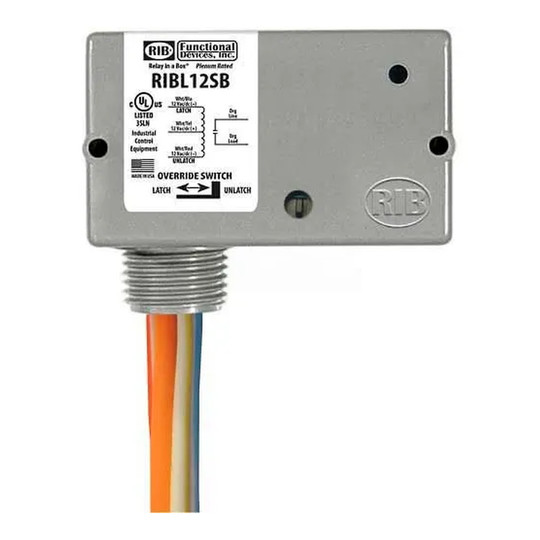

Enclosed 20A 12VAC/DC latching relay with switch

Enclosed 20A 12VAC/DC Latching Relay with Switch

SKU:
WBB1034278
Our Price:
$169.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: US
Material: Plastic
Product Depth: 2.8"
Product Height: 1.5"
Product Type: Relays
Product Width: 1.7"
Quantity Included: 1
Shipping Weight: 42 lbs
Manufacturer Part Number: RIBL12SB
Length: 1.7 in
Width: 2.8 in
Height: 1.5 in
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: US
Material: Plastic
Product Depth: 2.8"
Product Height: 1.5"
Product Type: Relays
Product Width: 1.7"
Quantity Included: 1
Shipping Weight: 42 lbs
Manufacturer Part Number: RIBL12SB
Length: 1.7 in
Width: 2.8 in
Height: 1.5 in

This enclosed latching relay is designed for electrical installers and control-system users who need to switch a load from pulse commands. It provides a mechanically latched closed contact position so the load remains on when a control panel fails.

The relay is rated 20A and operates on 12VAC/DC. It is prewired in a NEMA 1 plastic enclosure with a 1/2-inch mounting nipple, LED indicator, and switch. It measures 2.8 inches wide, 1.7 inches deep, and 1.5 inches high. Pulse commands from a controller or momentary switch closure activate the relay; after a complete power loss, contacts remain in their last state and the load activates when normal or emergency power returns.

Key Features:

  • Mechanical latching contacts: Keeps the contacts closed and the load on if the control panel fails.
  • State retention: Maintains the last contact state through a complete power loss.
  • Prewired enclosure: Helps streamline installation.
  • LED indicator: Provides a visible operating indication.
  • Pulse-command activation: Works with controller pulses or a momentary switch closure.

Choose this relay when a 20A, 12VAC/DC enclosed latching relay with a switch, LED indication, and retained contact state is needed.

Country of Origin: US
Material: Plastic
Product Depth: 2.8"
Product Height: 1.5"
Product Type: Relays
Product Width: 1.7"
Quantity Included: 1
Shipping Weight: 42 lbs
Manufacturer Part Number: RIBL12SB
Length: 1.7 in
Width: 2.8 in
Height: 1.5 in
Wire Size: 16 in
Amperage: 20 A
Brand: RIB
Contact Type: SPST
Description: Enclosed Latching Relay
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Manufacturers Part Number: RIBL12SB
Number of Relays: 1
Operating Temperature: -30° To 140°F
Voltage: 12VAC/DC V
Wire Rating: 600V
Warranty: 1 yr
Certifications: UL/cUL
Width: 2.80 in
Height: 1.50 in
Depth: 1.70 in
!
