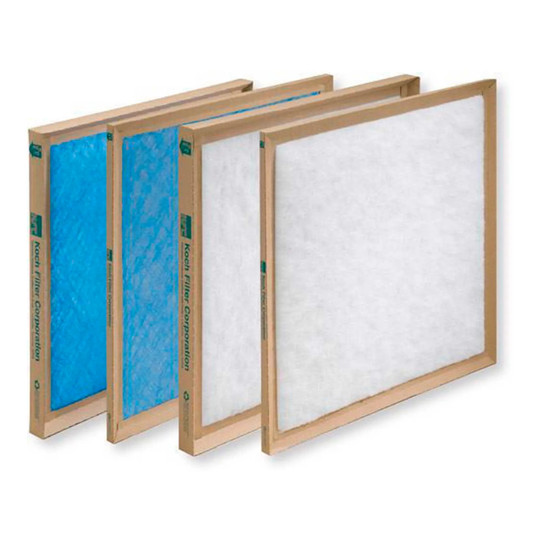

This disposable fiberglass air filter is designed for commercial and industrial users who need a replacement filter for light- to medium-duty air filtration. It helps capture airborne particles while supporting routine HVAC filter changes.
The filter measures 12 x 30 x 1 inches and uses progressively dense glass-fiber media, with coarser fibers on the air-entry side and tighter fibers on the air-exit side. Its media fibers are coated with a non-migrating adhesive. A one-piece moisture-resistant craft board frame features interlocking miter corners, and thermoplastic sealant bonds the media to the frame on both sides to help prevent air bypass.
Key Features:
- Progressive-density media: Uses coarse entry-side fibers and tighter exit-side fibers to support depth loading across the filter media.
- Adhesive-coated fibers: Helps enhance filter performance with a non-migrating adhesive coating.
- One-piece frame: Provides strength and supports easy installation.
- Interlocking miter corners: Adds durability to the filter frame.
- Sealed media-to-frame bond: Helps limit air bypass and adds rigidity.
Choose this 12 x 30 x 1 inch fiberglass filter for commercial or industrial light- to medium-duty filtration needs where a disposable replacement filter is required.
| Country of Origin: |
US |
| Material: |
Plastic |
| Product Depth: |
12" |
| Product Height: |
30" |
| Product Type: |
Fiberglass Air Filters |
| Product Width: |
1" |
| Quantity Included: |
12 |
| Shipping Weight: |
417 lbs |
| Manufacturer Part Number: |
274-120-300 |
| Width: |
12 in |
| Height: |
30 in |
| Nominal Depth: |
1 in |
| Nominal Height: |
30 in |
| Nominal Size: |
12 x 30 x 1 in |
| Nominal Width: |
12 in |
| Resist In. W.G. 300 FPM: |
0.05 |
| Average Arrestance Percent: |
65 - 70% |
| Brand: |
Koch |
| For Use With: |
Light to Medium Duty |
| Frame: |
Moisture Resistant Craft Board |
| MERV: |
5 |
| Manufacturers Part Number: |
274-120-300 |
| Media Type: |
Fiberglass |
| Package Quantity: |
12 |
| Width: |
12.00
in
|
| Height: |
30.00
in
|
| Depth: |
1.00
in
|
