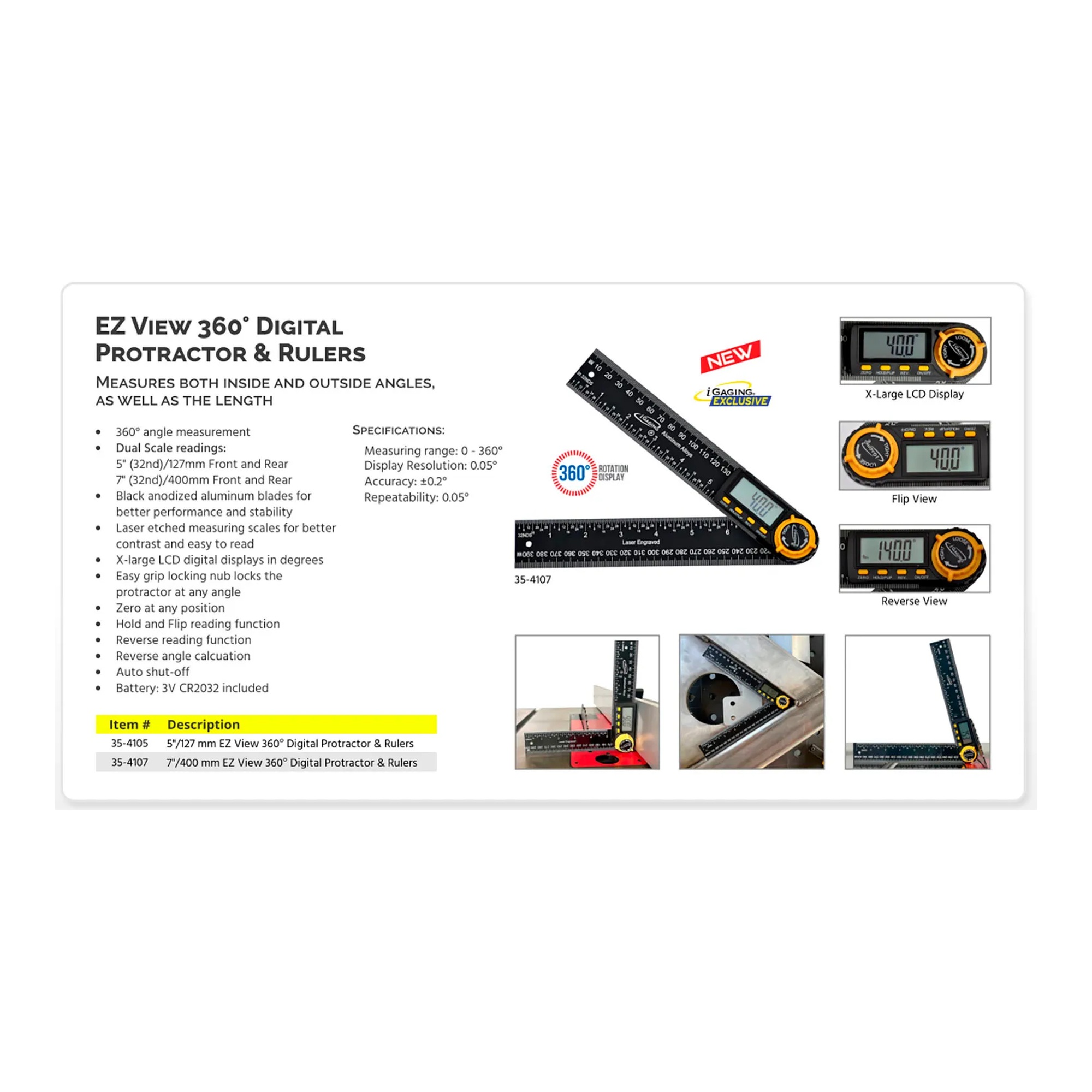

Digital Protractor with Large LCD Display - 1-3/8 in W x 15/16 in H x 10.64 D

This digital protractor helps tradespeople, fabricators, and maintenance teams measure and set angles during layout, fitting, and inspection work. Its large LCD display presents readings in degrees for clear angle checks.

The protractor measures angles from 0 to 360 degrees with 0.05-degree display resolution, ±0.2-degree accuracy, and 0.05-degree repeatability. It has black anodized aluminum blades with laser-etched scales, including 5-inch/125 mm and 7-inch/175 mm front and rear readings. A 3V CR2032 battery is included.

Key Features:

• Full-circle measurement: Measures angles across a 0 to 360-degree range for versatile layout and checking tasks.
• Large digital display: Shows angle readings in degrees for easy viewing.
• Locking angle control: Locks the protractor at a selected angle to help maintain the setting.
• Zero-at-any-position function: Lets users set a new reference point where needed.
• Hold, flip, and reverse functions: Supports reading retention and alternate viewing orientations.
• Laser-etched blade scales: Provides high-contrast markings that are easy to read.

With aluminum blades, digital angle measurement, and flexible reading functions, this protractor is suited to professional measurement and layout tasks requiring adjustable angle references.
