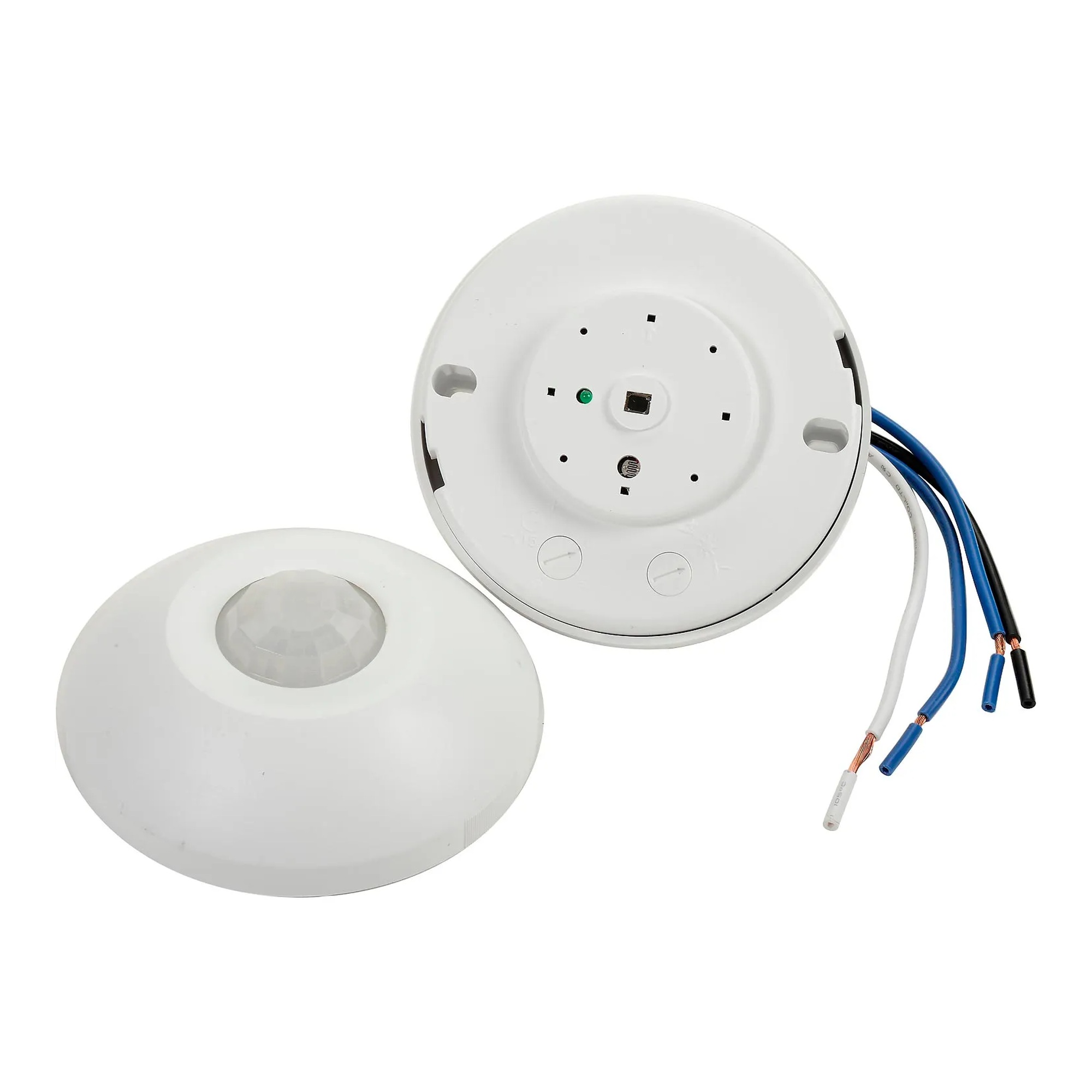

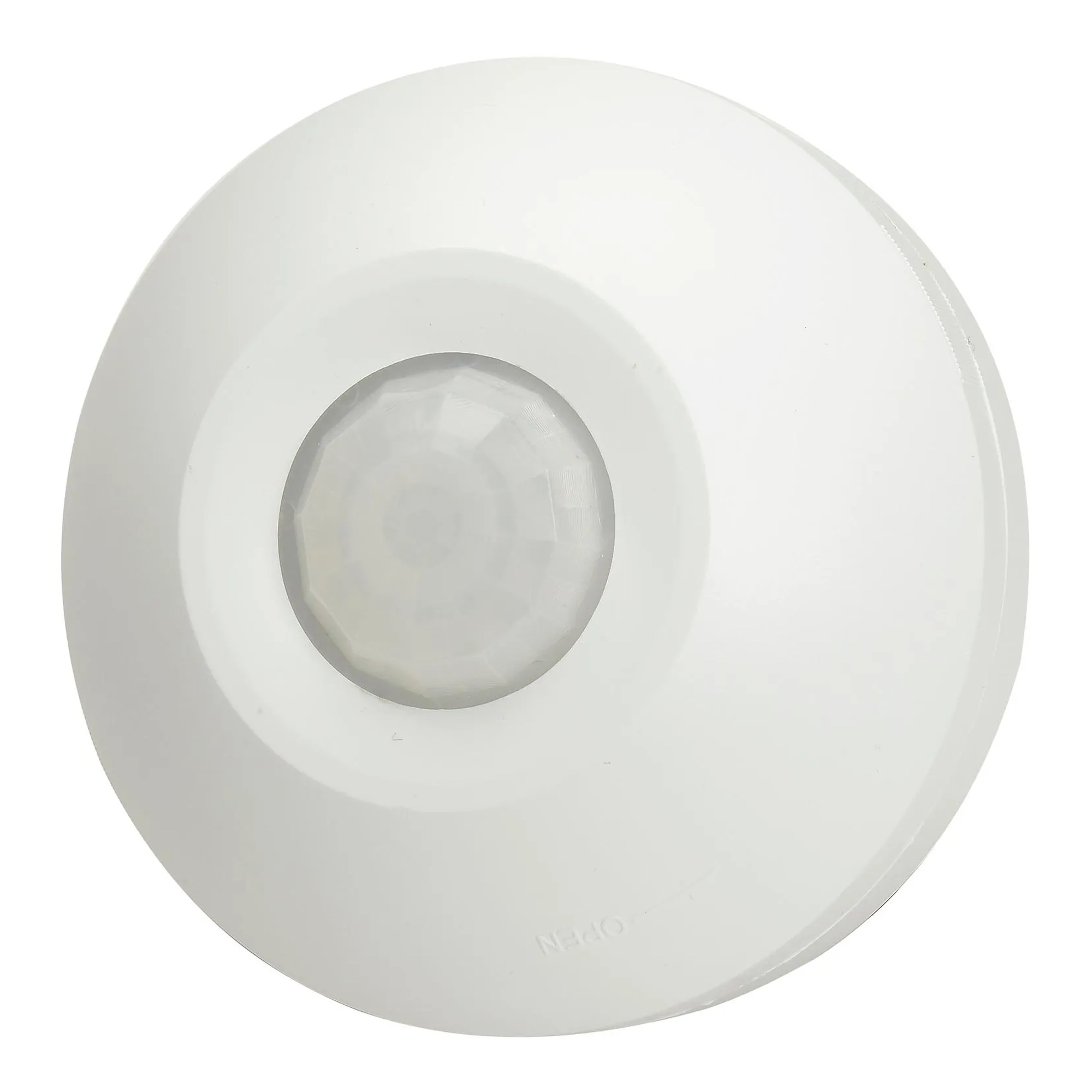

Ceiling-Mount Occupancy Sensor with Integrated Switching Relay

This ceiling-mount occupancy sensor is designed for facilities professionals and electrical installers who need automatic control based on detected motion. It combines motion sensing and a switching relay in one unit to help manage lighting operation in occupied spaces.

The white sensor operates on 120VAC and provides a 360-degree field of view. When mounted at 8 feet, it covers approximately 530 square feet. Its delayed-off setting is adjustable from 20 seconds to 15 minutes. A 79-segment Fresnel lens supports motion detection, and a flashing LED indicates detected motion during installation. The unit measures 3.25 inches wide, 4.625 inches deep, and 6.125 inches high.

Key Features:

• Integrated sensor and relay: Combines occupancy detection and switching control in one ceiling-mounted unit.
• 360-degree field of view: Supports motion detection across the surrounding area from a ceiling installation point.

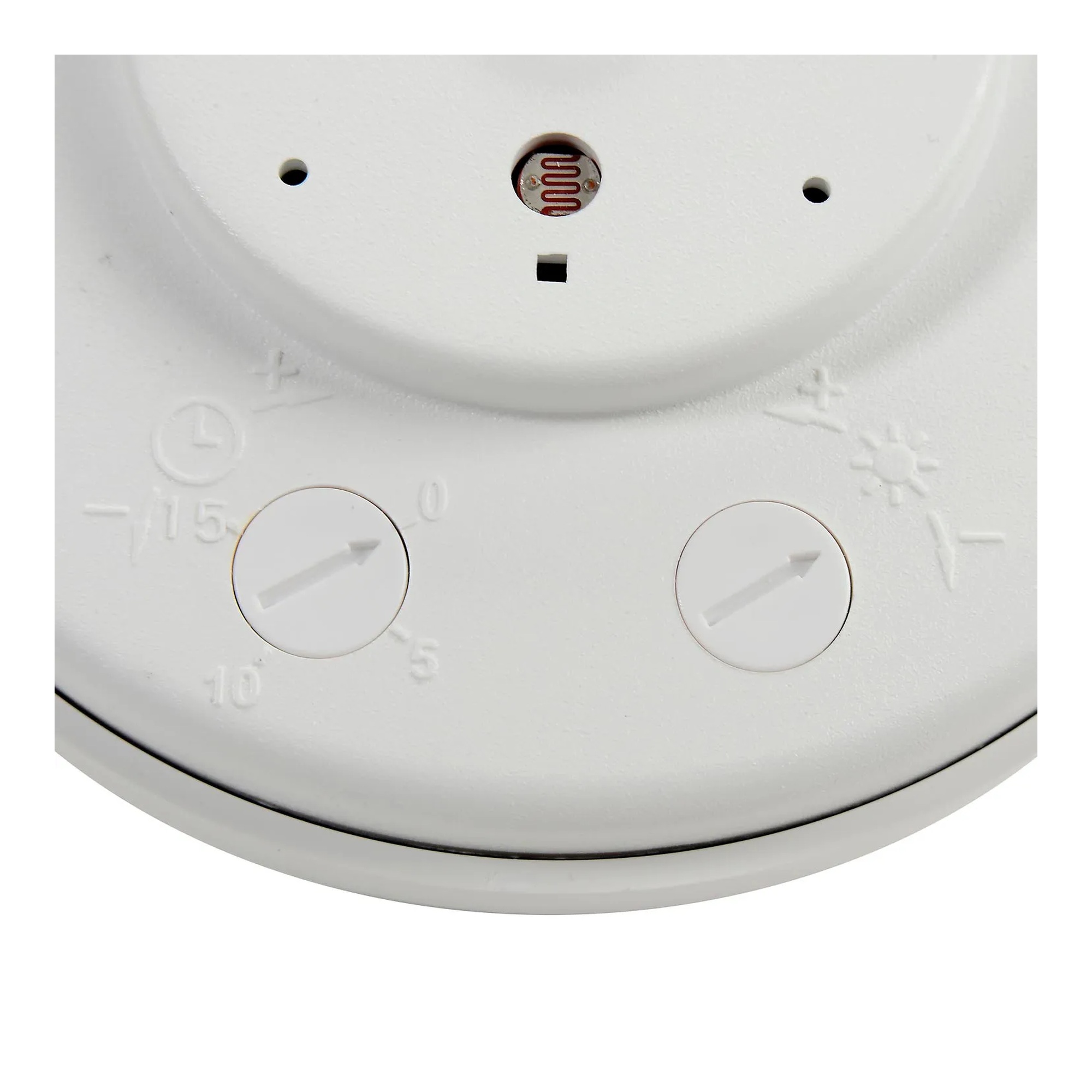

• Adjustable delayed-off timing: Lets installers set shutoff delay from 20 seconds to 15 minutes for the application.
• Flashing LED indicator: Provides visual confirmation of motion detection to assist with placement and functional checks during installation.

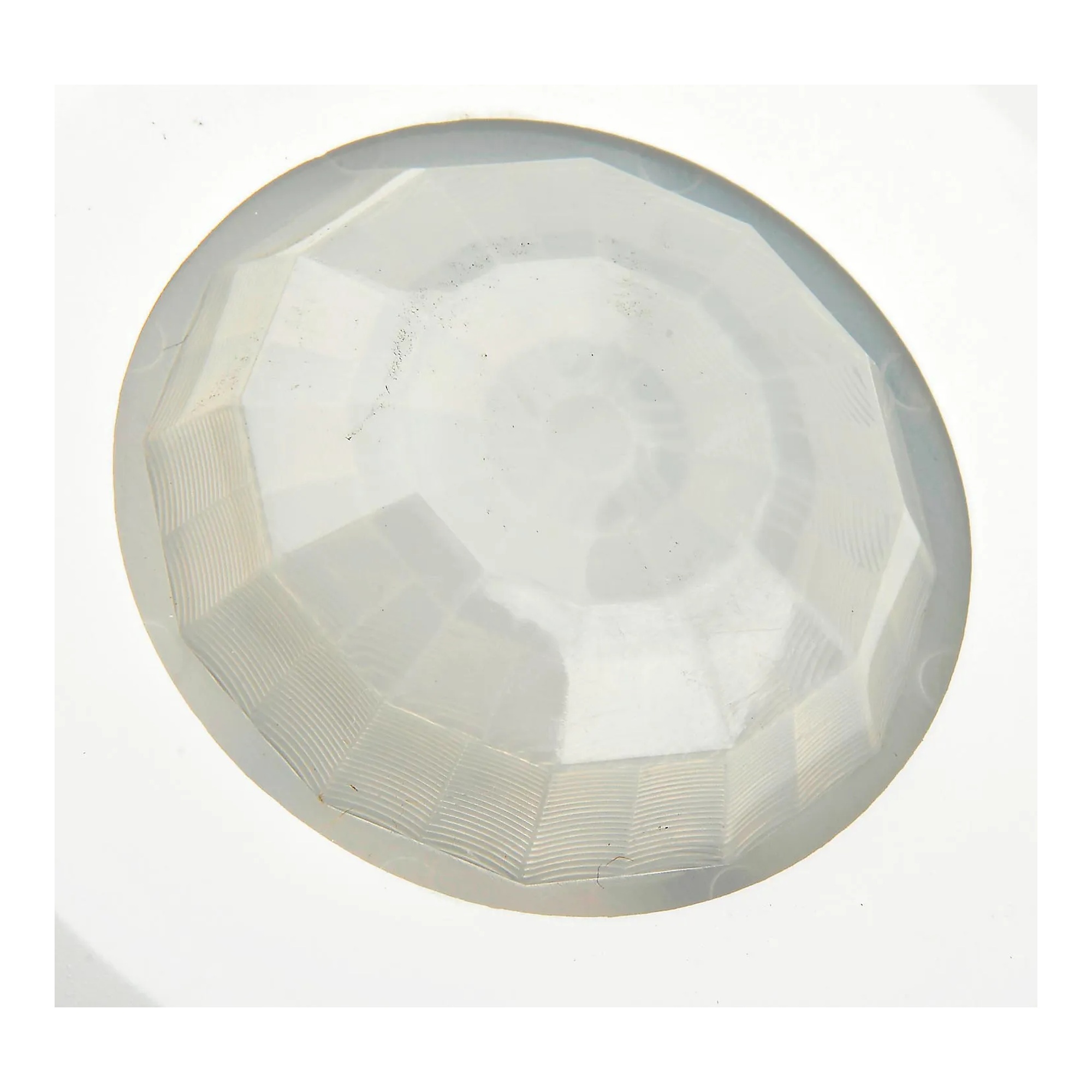

• 79-segment Fresnel lens: Supports sensitivity and detection performance.

Choose this 120VAC ceiling occupancy sensor for installations that need broad-area motion detection, adjustable delayed-off control, and an integrated switching relay in a white housing.
