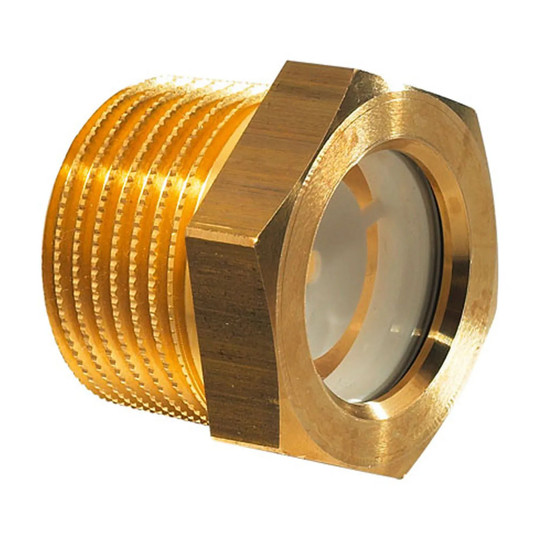

Brass fluid level sight glass with reflector and 1 inch NPT thread

Brass Fluid Level Sight Glass with Reflector, 1 in. NPT Thread

SKU:
WBB2225537
Model/MPN:
1PTK3
Our Price:
$27.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Import
Product Depth: 6
Product Height: 0.31
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 1PTK3
Across Flats: 1.37" (35mm)
Diameter: .94"
Point to Point: 1.59"
Thread Length: .87 in
Thread Size: 1 NPT (Male/Female) in
Useable Thread: .66"
Female Thread: 1" NPT
Male Thread: 1" NPT
Manufacturers Part Number: 1PTK3
O-Ring Material: NBR Rubber (Perbunan)
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Series: GN743.7
Sight Glass Body Material: Brass
Sight Glass Material: Natural Glass
Thread Pitch: 0.091 TPI
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Import
Product Depth: 6
Product Height: 0.31
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 1PTK3
Across Flats: 1.37" (35mm)
Diameter: .94"
Point to Point: 1.59"
Thread Length: .87 in
Thread Size: 1 NPT (Male/Female) in
Useable Thread: .66"
Female Thread: 1" NPT
Male Thread: 1" NPT
Manufacturers Part Number: 1PTK3
O-Ring Material: NBR Rubber (Perbunan)
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Series: GN743.7
Sight Glass Body Material: Brass
Sight Glass Material: Natural Glass
Thread Pitch: 0.091 TPI
Shipping Method: Parcel

This brass fluid level sight glass helps maintenance and equipment personnel visually monitor fluid levels in pressurized oil tanks. Its reflector supports clearer level viewing, while the threaded design installs into a compatible tank opening.

The sight glass has a 1 in. NPT conical male thread designed to wedge into the matching female thread for a metallic seal. The thread can be started by hand and tightened with a tool to increase thread engagement. Its roughened thread helps keep added fibrous or PTFE thread sealant in place during installation. It is temperature resistant to 230°F (110°C).

Key Features:

  • Reflector: Helps make the fluid level easier to see during equipment checks.
  • 1 in. NPT conical thread: Fits compatible female-threaded openings and supports a wedging metal-to-metal connection.
  • Tool-tightened installation: Allows increased thread engagement for a secure screw connection.
  • Roughened thread surface: Helps prevent added thread sealant from shifting while tightening.
  • 230°F temperature resistance: Supports use in applications operating up to 230°F (110°C).

Choose this sight glass for visual fluid-level monitoring in compatible pressurized oil tank installations requiring a 1 in. NPT threaded connection.

Country of Origin: Import
Product Depth: 6
Product Height: 0.31
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 1PTK3
Across Flats: 1.37" (35mm)
Diameter: .94"
Point to Point: 1.59"
Thread Length: .87 in
Thread Size: 1 NPT (Male/Female) in
Useable Thread: .66"
Female Thread: 1" NPT
Male Thread: 1" NPT
Manufacturers Part Number: 1PTK3
O-Ring Material: NBR Rubber (Perbunan)
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Series: GN743.7
Sight Glass Body Material: Brass
Sight Glass Material: Natural Glass
Thread Pitch: 0.091 TPI
Shipping Method: Parcel
Width: 6.00 in
Height: 4.00 in
Depth: 6.00 in
!
