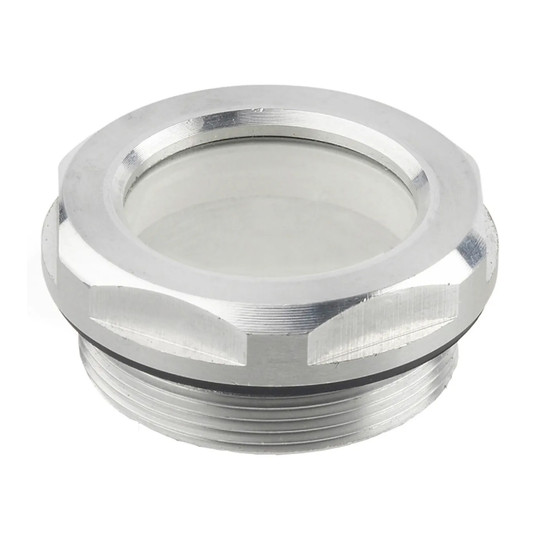

Aluminum fluid level sight glass with G 1-1/4 inch pipe thread

Aluminum Fluid Level Sight Glass with G 1-1/4 in. Pipe Thread

SKU:
WBB2225456
Model/MPN:
743.1-32-G11/4-B
Our Price:
$25.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 0.35
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743.1-32-G11/4-B
Across Flats: 1.81" (46mm)
Diameter: 1.97"
Inner Diameter: 1.26"
Thread Length: .47 in
Thread Size: G 1-1/4 in
Manufacturers Part Number: 743.1-32-G11/4-B
Max Pressure @ 70°F: 180 psi
Seal Material: FPM Rubber (Viton®)
Series: GN743.1
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: ESG Glass
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 0.35
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743.1-32-G11/4-B
Across Flats: 1.81" (46mm)
Diameter: 1.97"
Inner Diameter: 1.26"
Thread Length: .47 in
Thread Size: G 1-1/4 in
Manufacturers Part Number: 743.1-32-G11/4-B
Max Pressure @ 70°F: 180 psi
Seal Material: FPM Rubber (Viton®)
Series: GN743.1
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: ESG Glass
Shipping Method: Parcel

This aluminum fluid level sight glass helps maintenance and equipment teams visually check fluid levels in pressurized oil tanks. It provides a direct viewing point for monitoring oil without opening the tank.

The sight glass features stable, scratch-resistant glass and a G 1-1/4 in. pipe thread. Its O-ring seals around the glass perimeter rather than the glass face edge. The seal sits in a groove to help retain it and reduce extrusion during tightening. The Viton seal is rated for maximum heat resistance of 356°F (180°C). For installation on walls thinner than 4 mm, use a compatible mounting nut.

Key Features:

  • Aluminum body: Provides a metal construction for fluid-level viewing installations.
  • Scratch-resistant glass: Helps preserve a clear viewing surface for fluid monitoring.
  • Perimeter O-ring seal: Helps maintain sealing performance when axial pressure is present.
  • Retained seal groove: Helps keep the seal positioned during installation and tightening.
  • G 1-1/4 in. pipe thread: Supports matching threaded oil-tank connections.

Choose this fluid level sight glass for pressurized oil-tank applications requiring threaded installation, clear level visibility, and a perimeter-sealed glass design.

Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 0.35
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743.1-32-G11/4-B
Across Flats: 1.81" (46mm)
Diameter: 1.97"
Inner Diameter: 1.26"
Thread Length: .47 in
Thread Size: G 1-1/4 in
Manufacturers Part Number: 743.1-32-G11/4-B
Max Pressure @ 70°F: 180 psi
Seal Material: FPM Rubber (Viton®)
Series: GN743.1
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: ESG Glass
Shipping Method: Parcel
Width: 6.00 in
Height: 4.00 in
Depth: 6.00 in
!
