6 x 36 fixed-bar aluminum supply and return air vent grille

6 in. x 36 in. Fixed-Bar Supply/Return Air Vent Grille

SKU:
WBB1651631
Our Price:
$315.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Color/Finish: Gray
Country of Origin: US
Material: Aluminum
Product Depth: 8"
Product Height: 2"
Product Type: Diffusers, Grilles, & Registers
Product Width: 38"
Quantity Included: 1
Shipping Weight: 8 lbs
Manufacturer Part Number: 200063601
Color: Gray
Length: 37-1/4 in
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Color/Finish: Gray
Country of Origin: US
Material: Aluminum
Product Depth: 8"
Product Height: 2"
Product Type: Diffusers, Grilles, & Registers
Product Width: 38"
Quantity Included: 1
Shipping Weight: 8 lbs
Manufacturer Part Number: 200063601
Color: Gray
Length: 37-1/4 in

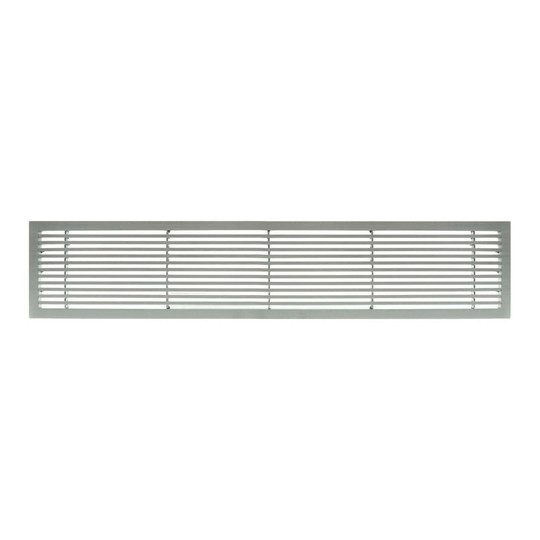

This fixed-bar air vent grille is designed for residential and commercial HVAC users who need to cover a supply or return opening. Its drop-in design provides a straightforward way to finish heating and ventilation openings while allowing air to pass through.

The grille has a 6 in. x 36 in. opening size and fixed aluminum bars set at a 45-degree deflection angle. Extruded solid aluminum bars use weld-lock construction, with 1/4 in. spacing between bars. The grille is made with 90% post-consumer recycled solid aluminum and has a brushed satin gray finish. Installation is drop-in and requires no tools.

Key Features:

  • Fixed 45-degree bars: Directs airflow through a consistent angled opening.
  • Drop-in installation: Allows placement without tools.
  • Weld-lock construction: Provides securely joined grille bars.
  • 1/4 in. bar spacing: Creates a pencil-proof grille opening.
  • Recycled aluminum construction: Uses solid aluminum made with 90% post-consumer recycled content.

Choose this 6 in. x 36 in. grille for supply or return air openings where a fixed-bar, drop-in aluminum design is needed.

Color/Finish: Gray
Country of Origin: US
Material: Aluminum
Product Depth: 8"
Product Height: 2"
Product Type: Diffusers, Grilles, & Registers
Product Width: 38"
Quantity Included: 1
Shipping Weight: 8 lbs
Manufacturer Part Number: 200063601
Color: Gray
Length: 37-1/4 in
Width: 7-1/4 in
Height: 3/4 in
Weight: 6 lbs
Nominal Size: 6 x 36 in
Opening Length: 36 in
Opening Width: 6 in
Brand: Architectural Grille
Manufacturers Part Number: 200063601
Type: Supply/Return Grille
Width: 8.00 in
Height: 2.00 in
Depth: 38.00 in
!
