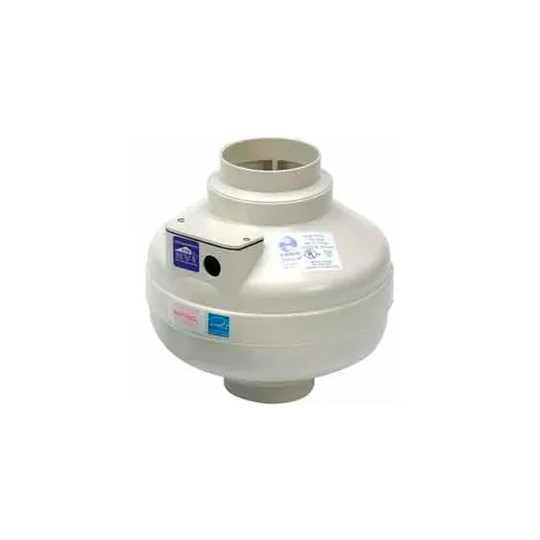

6-Inch Inline Centrifugal Duct Fan with Molded Housing, 289 CFM

SKU:
FS-GLO-FR160
Brand:
Fantech
Model/MPN:
FR160
Our Price:
$319.94
Shipping & Availability:
  • Fast Shipping: Lead time: 2 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating

Product Specifications:
Airflow (CFM): 289 CFM
Color/Finish: White
Country of Origin: US
Material: Thermoplastic
Product Depth: 13
Product Height: 11
Product Type: Duct Fans
Product Width: 13
Quantity Included: 1
Color: White
Length: 11-3/4 in
Duct Size: 6 in
Inlet/Outlet Diameter: 5-7/8 in
Amperage: 1.14 A
Amps Range: 1-2 A
CFM: 289 CFM
CFM High: 289 CFM
Indoor/Outdoor: Outdoor
Max Static Pressure: 2.32
Motor Type: External Rotor Motor
Package Quantity: 1
RPM: 2750 rpm
Voltage: 115 V
Voltage Range: 115-120 V
Wattage: 129 W
Warranty: 5 yr
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .

Product Specifications:
Airflow (CFM): 289 CFM
Color/Finish: White
Country of Origin: US
Material: Thermoplastic
Product Depth: 13
Product Height: 11
Product Type: Duct Fans
Product Width: 13
Quantity Included: 1
Color: White
Length: 11-3/4 in
Duct Size: 6 in
Inlet/Outlet Diameter: 5-7/8 in
Amperage: 1.14 A
Amps Range: 1-2 A
CFM: 289 CFM
CFM High: 289 CFM
Indoor/Outdoor: Outdoor
Max Static Pressure: 2.32
Motor Type: External Rotor Motor
Package Quantity: 1
RPM: 2750 rpm
Voltage: 115 V
Voltage Range: 115-120 V
Wattage: 129 W
Warranty: 5 yr
Shipping Method: Parcel

This 6-inch inline centrifugal duct fan is for ventilation installers and facility teams that need to move air through ductwork. It delivers 289 CFM and is suited for wet locations and outdoor use.

The fan has a molded engineered thermoplastic resin housing in white and includes a mounting bracket. It measures 13 inches wide by 13 inches deep by 11 inches high and is designed for 6-inch duct applications.


Key Features:

  • 289 CFM Airflow: Provides airflow capacity for ducted ventilation needs.
  • 6-Inch Duct Size: Fits 6-inch duct applications.
  • Engineered Thermoplastic Housing: Supports use in wet locations and outdoor settings.
  • Mounting Bracket Included: Provides the included hardware component for mounting the fan.
  • Compact 13 x 13 x 11 Inch Size: Helps buyers plan installation space.

Choose this inline centrifugal fan when a 6-inch duct fan with 289 CFM airflow, a molded housing, and an included mounting bracket fits the installation requirements.

Airflow (CFM): 289 CFM
Color/Finish: White
Country of Origin: US
Material: Thermoplastic
Product Depth: 13
Product Height: 11
Product Type: Duct Fans
Product Width: 13
Quantity Included: 1
Color: White
Length: 11-3/4 in
Duct Size: 6 in
Inlet/Outlet Diameter: 5-7/8 in
Amperage: 1.14 A
Amps Range: 1-2 A
CFM: 289 CFM
CFM High: 289 CFM
Indoor/Outdoor: Outdoor
Max Static Pressure: 2.32
Motor Type: External Rotor Motor
Package Quantity: 1
RPM: 2750 rpm
Voltage: 115 V
Voltage Range: 115-120 V
Wattage: 129 W
Warranty: 5 yr
Shipping Method: Parcel
Width: 13.00 in
Height: 11.00 in
Depth: 13.00 in
