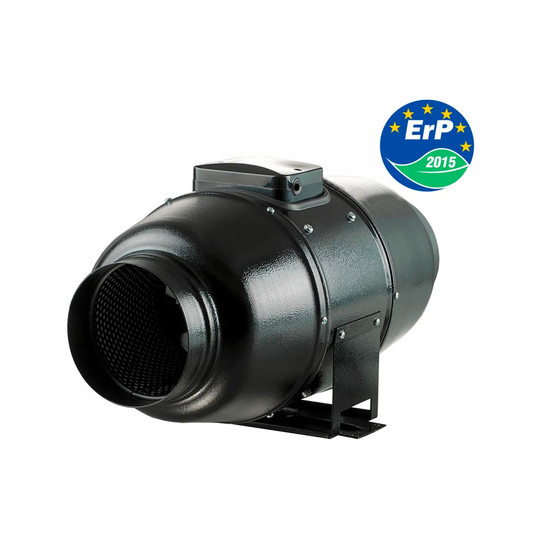

This 5 in. inline mixed-flow duct fan helps ventilation professionals and facility teams move air through duct systems. It delivers 188 CFM airflow and is designed for quiet operation, including systems with higher pressure.
The fan operates on 120V power and uses a two-speed capacitor motor with thermal overload protection. Its aerodynamic mixed-flow impeller and noise-absorbing metal case support airflow and reduced noise. A built-in speed control switch and power cord are included. The central body rotates and can be removed for installation and maintenance. Overall dimensions are 11 in. wide x 22 in. deep x 12 in. high.
Key Features:
Choose this compact 5 in. inline duct fan when you need 120V, two-speed airflow performance in a space-conscious ventilation installation.
| Airflow (CFM): | 188 CFM |
| Color/Finish: | Black |
| Country of Origin: | PL |
| Product Depth: | 11" |
| Product Height: | 12" |
| Product Type: | Duct Fans |
| Product Width: | 22" |
| Quantity Included: | 1 |
| Shipping Weight: | 13 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | TTSilentM125 |
| Color: | Black |
| Length: | 18-11/16 in |
| Width: | 8-9/16 in |
| Height: | 9-3/8 in |
| Weight: | 13 lbs |
| Duct Size: | 5 in |
| Fan Diameter: | 5 in |
| Inlet/Outlet Diameter: | 5 in |
| Amperage: | 0.3 A |
| Assembly Required: | No |
| Brand: | Canarm |
| CFM: | 188 CFM |
| CFM High: | 188 CFM |
| Description: | Inline Mixed Flow Duct Fan |
| Hertz: | 60 Hz |
| Indoor/Outdoor: | Indoor |
| Manufacturers Part Number: | TTSilentM125 |
| Material: | Metal |
| Motor Type: | Double Speed Capacitor Motor |
| Phase: | 1 |
| RPM: | 2303 rpm |
| Wattage: | 35 W |
| Warranty: | 1 yr |
| Width: | 11.00 in |
| Height: | 12.00 in |
| Depth: | 22.00 in |
No additional information available.
