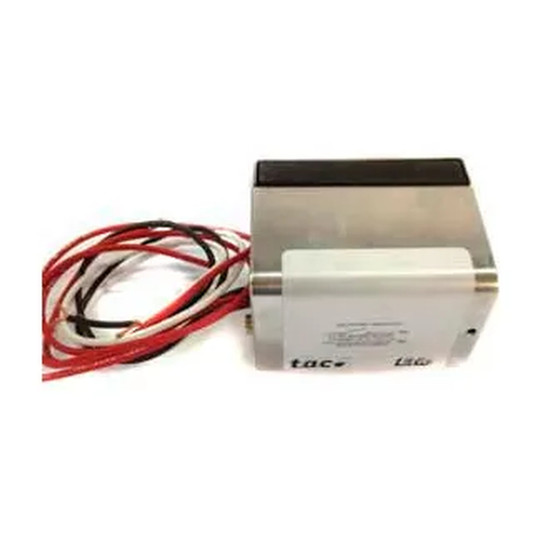

24V Normally Open Steam Actuator with End Switch

This 24V normally open steam actuator with an end switch is for HVAC professionals and building maintenance teams working on heating and cooling systems. It mounts to a valve body to provide two-position, on/off control.

The spring-return actuator operates on 24 VAC, 50/60 Hz and draws 6.5 watts or 7.5 VA. It has 18-inch leads for end-switch models, a stainless steel base plate, and an aluminum cover. The actuator mounts without linkages or calibration and is designed for temperatures from 32 to 250°F and pressure differential close-off up to 60 psi. Overall dimensions are 7.125 inches wide, 9.25 inches deep, and 5.5 inches high.

Key Features:

• Normally open operation: Supports normally open valve control in two-position HVAC systems.
• End switch: Provides end-switch functionality for connected control arrangements.
• Spring-return design: Delivers two-position on/off operation with spring return.
• Quick actuator attachment: Allows the actuator to be attached after the valve body is installed, without linkages or calibration.
• Durable exterior components: Combines a stainless steel base plate with an aluminum cover.

Choose this actuator for compatible steam valve assemblies requiring 24 VAC, normally open, spring-return operation and an end switch.
