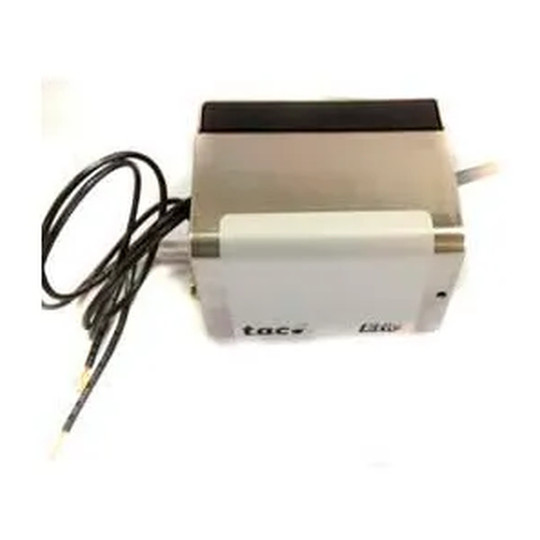

24V Normally Closed Steam Valve Actuator Without End Switch - Model AG14A020

This 24V normally closed steam valve actuator is for HVAC professionals and facility maintenance teams who need to operate compatible valve bodies in heating and cooling systems. It provides two-position, on/off control and installs after the valve body is in place.

The spring-return actuator operates on 24 VAC, 50/60 Hz, with 6.5-watt and 7.5 VA power requirements. It uses a stainless steel base plate and aluminum cover, has a silver finish, and measures 7.125 in. wide by 9.25 in. deep by 5.5 in. high. The actuator attaches to the valve body without linkages or calibration and does not include an end switch.

Key Features:

• 24 VAC operation: Supports 24 VAC control systems operating at 50/60 Hz.
• Normally closed spring return: Provides two-position on/off valve control with a normally closed position.
• Tool-free actuator engagement: Allows the actuator to be removed from or attached to the valve body with a push-button action.
• No linkage or calibration: Simplifies actuator mounting after the valve body is installed.
• Stainless steel and aluminum construction: Combines a stainless steel base plate with an aluminum cover.

Choose this actuator for compatible steam valve assemblies requiring 24 VAC, normally closed, two-position spring-return operation without an end switch.
