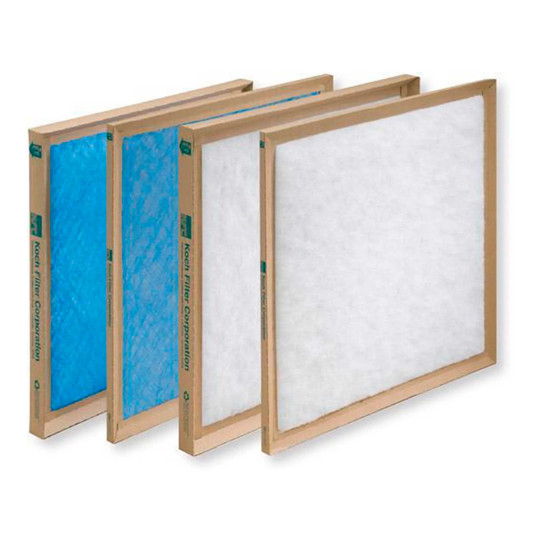

This disposable fiberglass air filter is designed for commercial and industrial users needing filtration for light- to medium-duty applications. It helps support routine air-quality maintenance by capturing airborne contaminants as air moves through compatible filter openings.
Measuring 18 x 36 x 1 inches, this filter uses progressively dense glass-fiber media, with coarser fibers on the air-entry side and tighter fibers on the air-exit side to promote depth loading across the media. A non-migrating adhesive coats the fibers. The media is secured on both sides to a one-piece moisture-resistant craft-board frame with thermoplastic sealant, while interlocking mitered corners add strength. No additional metal support is used.
Key Features:
- Progressive-density media: Uses coarse-to-tight glass fibers to support depth loading and fuller use of the filter media.
- Adhesive-coated fibers: A non-migrating adhesive helps enhance filter performance.
- One-piece frame: The moisture-resistant craft-board frame provides strength and supports installation.
- Mitered frame corners: Interlocking corners add durability for commercial and industrial handling.
- Sealed media-to-frame bond: Thermoplastic sealant on both sides helps prevent air from bypassing the media and adds rigidity.
Choose this 18 x 36 x 1 inch disposable fiberglass filter for light- to medium-duty commercial or industrial filtration needs where a framed, easy-to-install replacement filter is required.
| Country of Origin: |
US |
| Material: |
Plastic |
| Product Depth: |
18" |
| Product Height: |
36" |
| Product Type: |
Fiberglass Air Filters |
| Product Width: |
1" |
| Quantity Included: |
12 |
| Shipping Weight: |
667 lbs |
| Manufacturer Part Number: |
274-180-360 |
| Width: |
18 in |
| Height: |
36 in |
| Nominal Depth: |
1 in |
| Nominal Height: |
36 in |
| Nominal Size: |
18 x 36 x 1 in |
| Nominal Width: |
18 in |
| Resist In. W.G. 300 FPM: |
0.05 |
| Average Arrestance Percent: |
65 - 70% |
| Brand: |
Koch |
| For Use With: |
Light to Medium Duty |
| Frame: |
Moisture Resistant Craft Board |
| MERV: |
5 |
| Manufacturers Part Number: |
274-180-360 |
| Media Type: |
Fiberglass |
| Package Quantity: |
12 |
| Width: |
18.00
in
|
| Height: |
36.00
in
|
| Depth: |
1.00
in
|
