16-inch galvanized shutter wall exhaust fan with aluminum shutters

16-Inch Galvanized Shutter Wall Exhaust Fan with Thermostat

SKU:
WBB3192129
Our Price:
$209.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Airflow (CFM): 1,200 CFM
Color/Finish: Silver
Country of Origin: CN
Material: Aluminum
Number of Speeds: 3
Phase: 1
Product Depth: 22"
Product Height: 11"
Product Type: Shutter & Guard Mount Fans
Product Width: 22"
Quantity Included: 1
Shipping Weight: 15 lbs
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Airflow (CFM): 1,200 CFM
Color/Finish: Silver
Country of Origin: CN
Material: Aluminum
Number of Speeds: 3
Phase: 1
Product Depth: 22"
Product Height: 11"
Product Type: Shutter & Guard Mount Fans
Product Width: 22"
Quantity Included: 1
Shipping Weight: 15 lbs

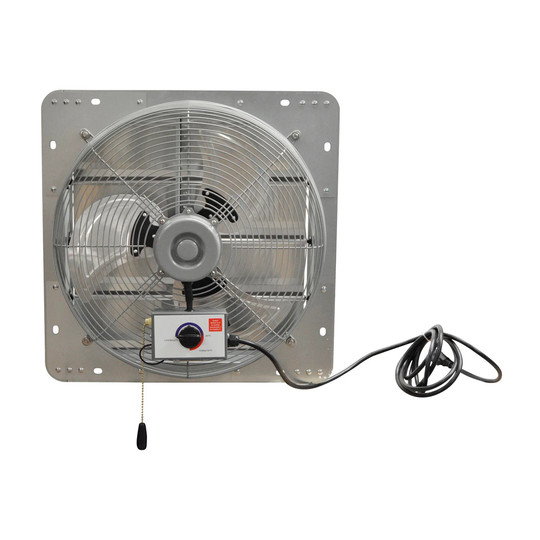

This 16-inch shutter wall exhaust fan is designed for light commercial users who need to move air out of a space. It provides 1,200 CFM of exhaust airflow and uses a shuttered wall-mounted design for ventilation applications.

The fan has a galvanized frame with aluminum shutters and measures 22 x 22 x 11 inches. Its 120V, single-phase motor is totally enclosed, thermally protected, and has Class B insulation. A 3-speed pull chain, 25-inch pull chain, and 6-foot cord with plug are included. The adjustable thermostat has a bypass and a 32°F to 130°F temperature range.

Key Features:

  • 1,200 CFM airflow: Provides substantial exhaust airflow for light commercial ventilation needs.
  • Three-speed pull chain: Lets users select from three fan speeds at the unit.
  • Adjustable thermostat: Supports temperature-based control from 32°F to 130°F and includes a bypass.
  • Galvanized frame and aluminum shutters: Combines a galvanized fan frame with aluminum shutters.
  • Cord-and-plug connection: Includes a 6-foot cord and plug for power connection.

Choose this shutter exhaust fan for light commercial wall ventilation where 1,200 CFM airflow, three-speed pull-chain operation, and adjustable thermostat control fit the application.

Airflow (CFM): 1,200 CFM
Color/Finish: Silver
Country of Origin: CN
Material: Aluminum
Number of Speeds: 3
Phase: 1
Product Depth: 22"
Product Height: 11"
Product Type: Shutter & Guard Mount Fans
Product Width: 22"
Quantity Included: 1
Shipping Weight: 15 lbs
Voltage: 120 V
Manufacturer Part Number: GSF3-16A
Color: Silver
Length: 18-29/32 in
Width: 10-3/8 in
Weight: 15 lbs
Cord Length: 6 ft
Fan Diameter: 16 in
Rough Opening: 16-1/4 x 16-1/4 in
Amperage: 0.83 A
Assembly Required: No
Brand: Canarm
CFM: 1200 CFM
Drive Type: Direct Drive
Fan Type: Exhaust Shutter
Hertz: 60 Hz
Horsepower: 1/20 HP
Housing Material: Steel
Manufacturers Part Number: GSF3-16A
Max Temperature: 130˚° F °F
Motor Type: Totally Enclosed
Mounting Location: Wall
Number of Blades: 4
Power Cord Type: 6' Long Cord and Plug
RPM: 1580 rpm
Warranty: 1 yr
Certifications: cULus
Width: 22.00 in
Height: 11.00 in
Depth: 22.00 in
!
