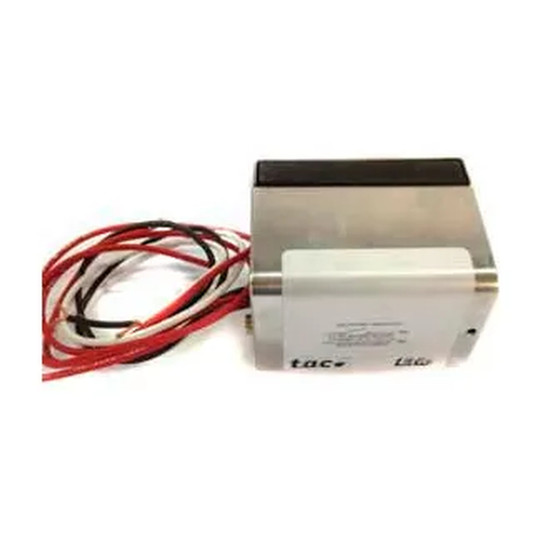

120V Normally Closed Steam Valve Actuator with End Switch

This 120V normally closed steam valve actuator is for HVAC professionals working on heating and cooling systems. It mounts to a valve body to provide two-position, spring-return on/off control and includes an end switch for system control connections.

The actuator operates on 120 VAC, 60 Hz and uses a two-position, spring-return on/off control signal. It has 18-inch leads for end-switch models, requires 6.5 watts and 7.5 VA, and is rated for up to 60 psi pressure differential close-off. The stainless steel base plate and aluminum cover support quick attachment to the valve body without linkages or calibration. Overall dimensions are 7.125 inches wide, 9.25 inches deep, and 5.5 inches high.

Key Features:

• Normally Closed Operation: Provides a closed valve position when the actuator is not energized.
• End Switch: Supports connection to related system controls.
• Spring-Return Design: Delivers two-position on/off operation.
• Quick Actuator Attachment: Allows the actuator to be installed or removed from the valve body with one-handed engagement.
• No Linkages or Calibration: Helps simplify actuator mounting after the valve body is installed.
• 18-Inch Leads: Provides lead length for end-switch wiring connections.

Choose this actuator for compatible steam valve installations requiring 120V, normally closed, two-position spring-return control with an end switch.
