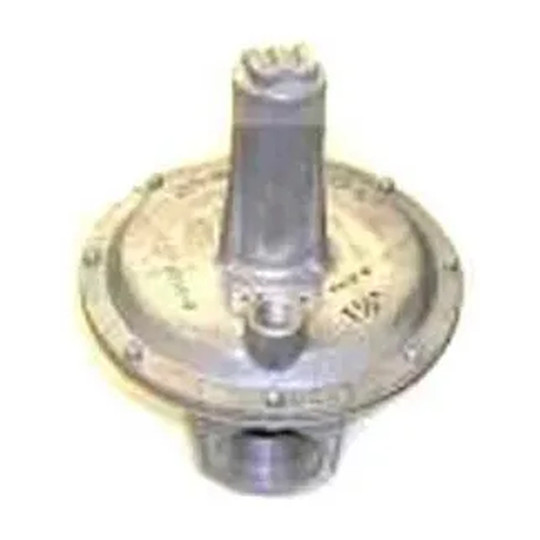

This straight-through gas regulator is for commercial buyers maintaining main-burner gas systems. It is designed to support high-capacity gas flow at low inlet pressures where downstream controls can operate at line pressure.
The regulator has a 1-1/4 inch size and a straight-through-flow design. It is rated for 1/2 psi pressure and capacities up to 4,500,000 BTU. This is a main-burner-only, non-lockup regulator. Product dimensions are 8 inches wide, 12 inches deep, and 8 inches high, with a listed weight of 5 lb. The finish is silver.
Key Features:
Choose this 1-1/4 inch regulator for main-burner systems requiring straight-through flow, high capacity, and downstream controls that operate at line pressure.
| Color/Finish: | Silver |
| Country of Origin: | US |
| Product Depth: | 8" |
| Product Height: | 8" |
| Product Type: | Gas Regulators |
| Product Width: | 12" |
| Quantity Included: | 1 |
| Shipping Weight: | 5 lbs |
| Manufacturer Part Number: | RV81-1 1/4 |
| Color: | Silver |
| Width: | 7 in |
| Height: | 8-2/5 in |
| Weight: | 5 lbs |
| Outlet Pressure in W.C. Inches: | 3 - 6 in |
| Pipe Size: | 1-1/4 in |
| BTU: | 4500000 |
| Brand: | Maxitrol |
| Capacity: | 4500 ft³/hr |
| Manufacturers Part Number: | RV81-1 1/4 |
| Max Inlet Pressure: | 1 psi |
| Warranty: | 1 yr |
| Certifications: | cCSAus |
| Width: | 8.00 in |
| Height: | 8.00 in |
| Depth: | 12.00 in |
