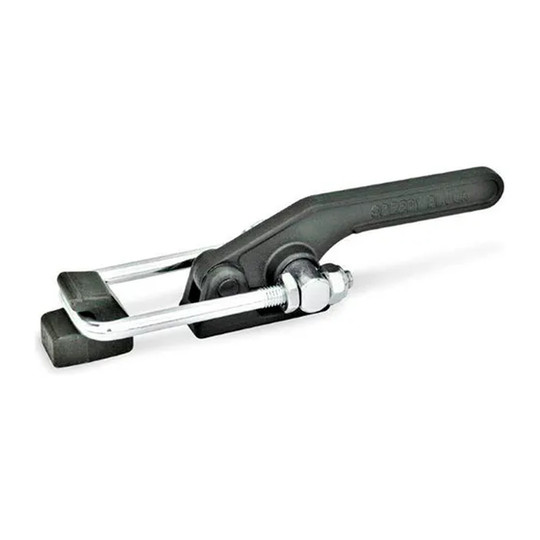

Weld-On Latch-Type Toggle Clamp with Pull Latch

This latch-type toggle clamp is designed for fabricators and shop users who need to secure and release fixtures or workholding setups. Its pull-latch operation provides a practical way to hold mating components together during welding applications.

The clamp is configured for welding and includes a pull latch with latch bracket. Its forged steel base and fixed catch have a chemically blackened finish, while the forged steel clamping lever has a black powder-coated finish. The latch bolt and bearing bolt are zinc plated with blue passivation, and the mobile sections are lubricated with special grease. Overall dimensions are 6 in. wide, 6 in. deep, and 2 in. high.

Key Features:

• Weld-On Configuration: Supports welding-based installation in fixtures and fabricated assemblies.
• Pull Latch: Helps users draw components together for secure latching.
• Forged Steel Components: Provides durable construction for shop and fabrication work.
• Lubricated Mobile Sections: Helps promote smooth clamp movement during repeated operation.
• Protective Finishes: Chemically blackened, powder-coated, and zinc-plated components help protect different clamp parts.

Choose this weld-on latch-type toggle clamp when your fixture or assembly requires a pull-latch closure with forged steel components and a compact 6 x 6 x 2 in. overall size.
