Strip Heaters

Strip heaters are compact electric heating components used in commercial and industrial equipment, assemblies, and process-heating setups. The available selection includes channel-style and finned strip heaters for adding heat within compatible installations, with options to match 120V or 240V electrical requirements, heating output needs, and available mounting space.

Product Display:
Helpful Buying Guide

Choose a Strip Heater That Matches Your Equipment

Selecting a strip heater starts with the electrical and physical requirements of the equipment or assembly. Compare the heater style, voltage, wattage, length, mounting slots, and listed termination or design configuration where provided before choosing a compatible replacement or component.

Visual Guide

Popular examples in this category

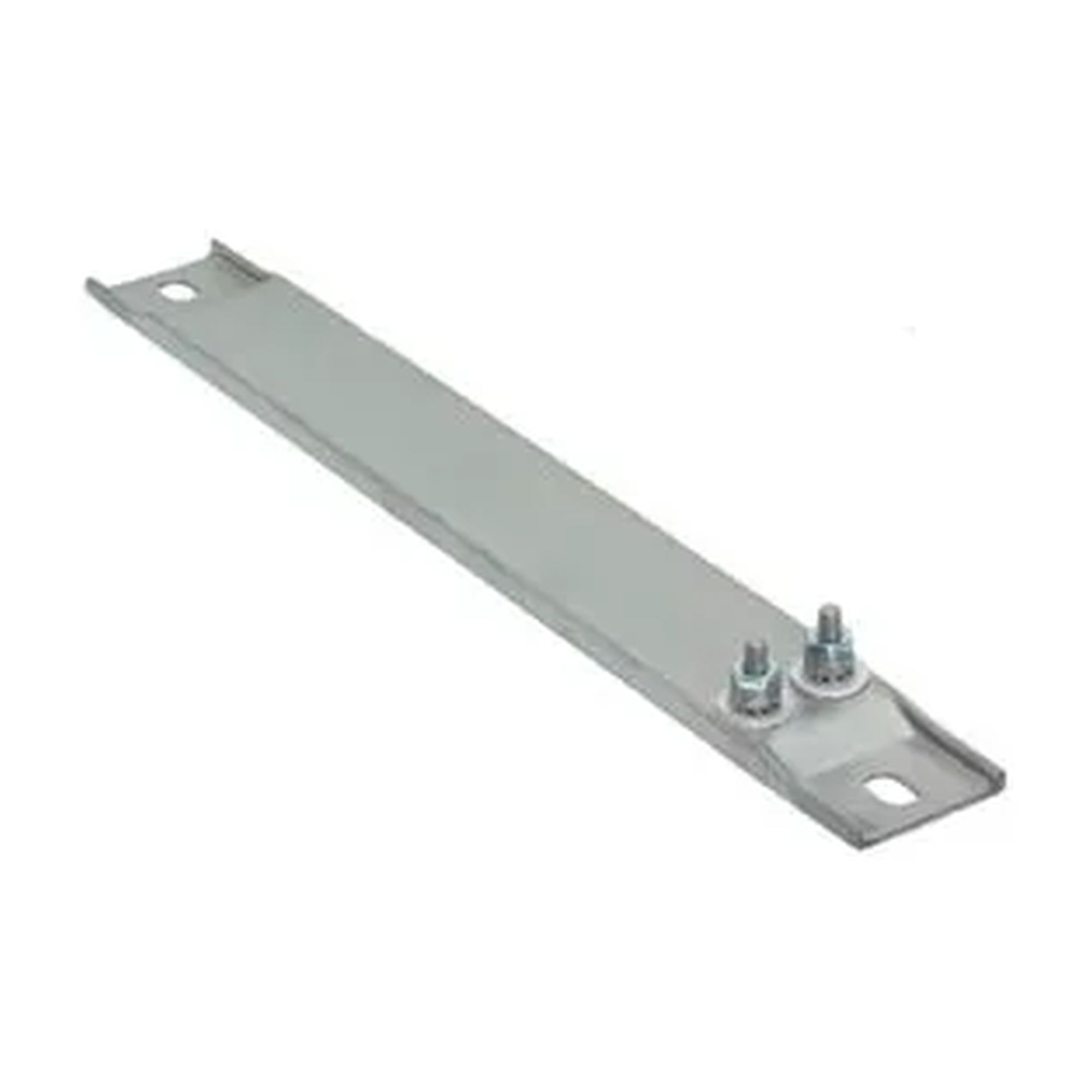

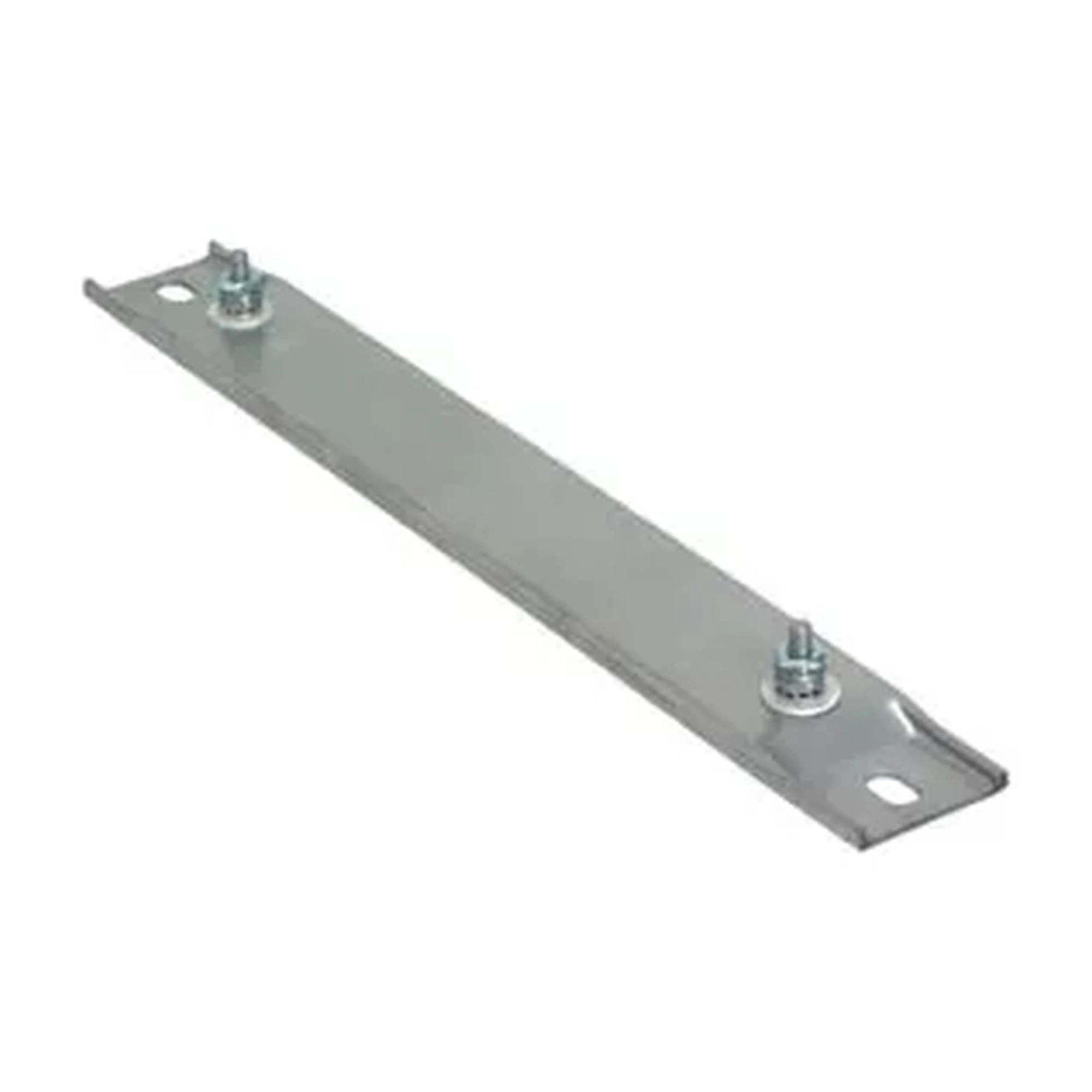

12-Inch 250W Channel Strip Heater, 240V12-Inch 250W Channel Strip Heater, 240VWBB382911240V Stainless Steel Channel Strip Heater, 19-1/2 in. Length, 350W240V Stainless Steel Channel Strip Heater, 19-1/2 in. Length, 350WWBB382965240V Channel Strip Heater, 34-5/8 in. Length, 1000W240V Channel Strip Heater, 34-5/8 in. Length, 1000WWBB383002120V Stainless Steel Channel Strip Heater, 750W, 23-3/4 in. Length - 1-1/2 in W x 1.2 H x 23.9 D120V Stainless Steel Channel Strip Heater, 750W, 23-3/4 in. Length - 1-1/2 in W x 1.2 H x 23.9 DWBB382974
Use Cases

Add electric heat to compatible equipment

Channel strip heaters are designed for equipment, heating assemblies, and process-heating setups that need a compact, linear electric heating component. Compact lengths can suit tighter installations, while longer strip formats fit equipment with more available installation space.

How to Choose

Match voltage, output, and dimensions

First match the heater to the required 120V or 240V electrical service. Then compare the specified wattage and heater length, along with the channel or finned style and the listed mounting-hole details.

Applications

Fit the heater to the assembly layout

The represented channel strip heaters range from 6 to 34-5/8 inches in length and include outputs from 150W to 1200W. A finned 120V strip heater is also represented for compatible heating equipment.

Additional Information

Review construction and connection details

The listed products use stainless steel sheaths, and the finned model includes nickel-plated steel fins. Where stated, compare T1 or T3 design or termination details and the specified 10-32 screw compatibility.

120V & 240VVoltage options

Match the heater to compatible electrical requirements.

150W–1200WHeating outputs

Compare the stated wattage required by the assembly.

6–34-5/8 in.Channel lengths

Select a linear format that fits the available space.

Channel & finnedHeater styles

Choose from represented channel strip and finned strip formats.

Comparison Guide

Compare the Represented Strip Heater Types

Use this overview to narrow the selection by construction, electrical options, and fit details listed for each product type.

Product typeAvailable characteristicsWhat to compare
Channel strip heatersStainless steel sheath; 120V or 240V options; 150W to 1200W represented; 6 to 34-5/8 in. lengths representedVoltage, wattage, overall heater length, slotted mounting holes, and listed T1 or T3 details.
Compact channel strip heaters6, 8, 10-1/2, and 12 in. lengths represented; 120V and 240V options; 150W or 250W examples representedAvailable installation space, required voltage, heating output, and mounting-slot fit.
Finned strip heater120V operation; stainless steel sheath; nickel-plated steel fins; 17-7/8 in. fin lengthWhether a finned format, listed voltage, fin length, and slotted mounting details match the equipment.
Planning Guide

Plan the right fit before choosing

Start With Electrical Requirements

Choose the correct voltage and heating output

The available heaters are offered in 120V and 240V versions. Heating outputs represented in this selection range from 150W to 1200W, so buyers can compare the rated output with the requirements of their compatible equipment or assembly.

  • 120V options include 150W, 250W, 750W, and 1000W channel heaters.
  • 240V options include 250W, 350W, 500W, 1000W, and 1200W channel heaters.
  • Match the heater voltage to the electrical service specified for the installation.
Compare Heater Form and Fit

Select a channel or finned strip style for the available space

Most represented products are stainless steel channel strip heaters with a long, narrow format. Listed channel-heater lengths range from 6 inches to 34-5/8 inches. One 120V finned strip heater is also available, featuring nickel-plated steel fins and a 17-7/8-inch fin length.

  • Compact channel heater lengths include 6, 8, 10-1/2, and 12 inches.
  • Longer channel formats include 19-1/2, 21, 23-3/4, and 34-5/8 inches.
  • Compare the heater length with the installation space in the equipment or assembly.
Confirm Mounting and Listed Configuration

Check mounting slots and applicable design details

The represented heaters include slotted mounting holes to support positioning during installation. Several listings specify 1/2-inch-long by 5/16-inch-wide slots, and certain models identify use with 10-32 screws. Some channel heaters also list a T1 design or T3 termination configuration.

  • Review slotted-hole dimensions when they are specified.
  • Check whether the installation uses the stated 10-32 screw size.
  • Match a listed T1 or T3 configuration when applicable to the equipment.
FAQ

Common questions before buying

What voltages are available for these strip heaters?

The represented selection includes 120V and 240V strip heaters.

What heater outputs are represented?

Listed channel strip heater outputs range from 150W to 1200W.

Are these heaters available in different lengths?

Yes. Represented channel heater lengths range from 6 inches to 34-5/8 inches, and the finned heater has a 17-7/8-inch fin length.

What mounting features are listed?

The products include slotted mounting holes. Several listings specify 1/2-inch by 5/16-inch slots, with certain models listing 10-32 screw compatibility.

!
