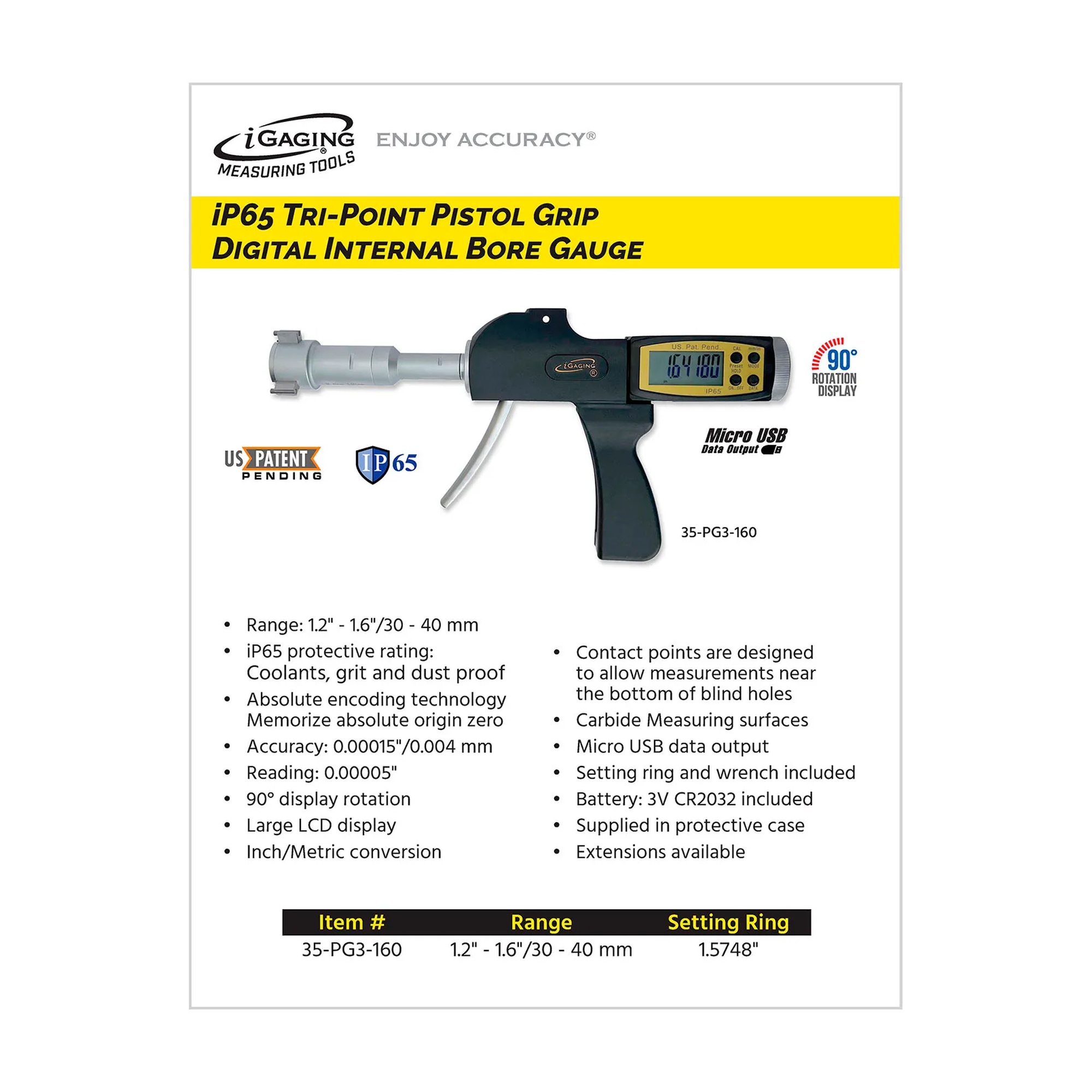

IP65 Digital Pistol-Grip Three-Point Internal Micrometer, 1.2–1.6 in. Range

This digital pistol-grip internal micrometer is designed for machinists and inspection professionals measuring bore diameters from 1.2 to 1.6 inches. Its three-point contact design supports internal measurement work, including measurements near the bottom of blind holes.

The gauge has an IP65 protective rating for resistance to coolants, grit, and dust. Absolute encoding allows the origin to be memorized, while the large LCD provides inch/metric readings with 0.00005-inch resolution. The display rotates 90 degrees, and a micro USB data output is provided. A setting ring, wrench, 3V CR2032 battery, and protective case are included.

Key Features:

• Three-point internal contact: Helps provide stable bore measurements across the 1.2 to 1.6 inch range.
• IP65 protection: Supports use around coolants, grit, and dust.
• Absolute origin memory: Retains the set origin for repeat measurement work.
• Rotating LCD display: Lets users reposition the display up to 90 degrees for easier viewing.
• Inch/metric readings: Allows measurement units to be switched as needed.
• Micro USB data output: Provides a connection point for transferring measurement data.

Choose this internal micrometer for digital bore measurement where a pistol-grip form, three-point contact, and a 1.2 to 1.6 inch measuring range fit the inspection task.
