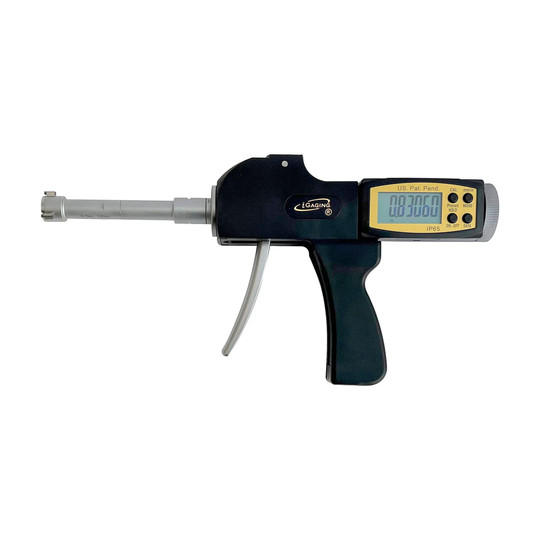

IP65 Digital Pistol-Grip Three-Point Internal Micrometer, 0.65–0.80 in. Range

This digital pistol-grip internal micrometer helps machinists and inspection teams measure bore diameters from 0.65 to 0.80 inches. Its three-point contact design supports consistent internal measurements, including measurements near the bottom of blind holes.

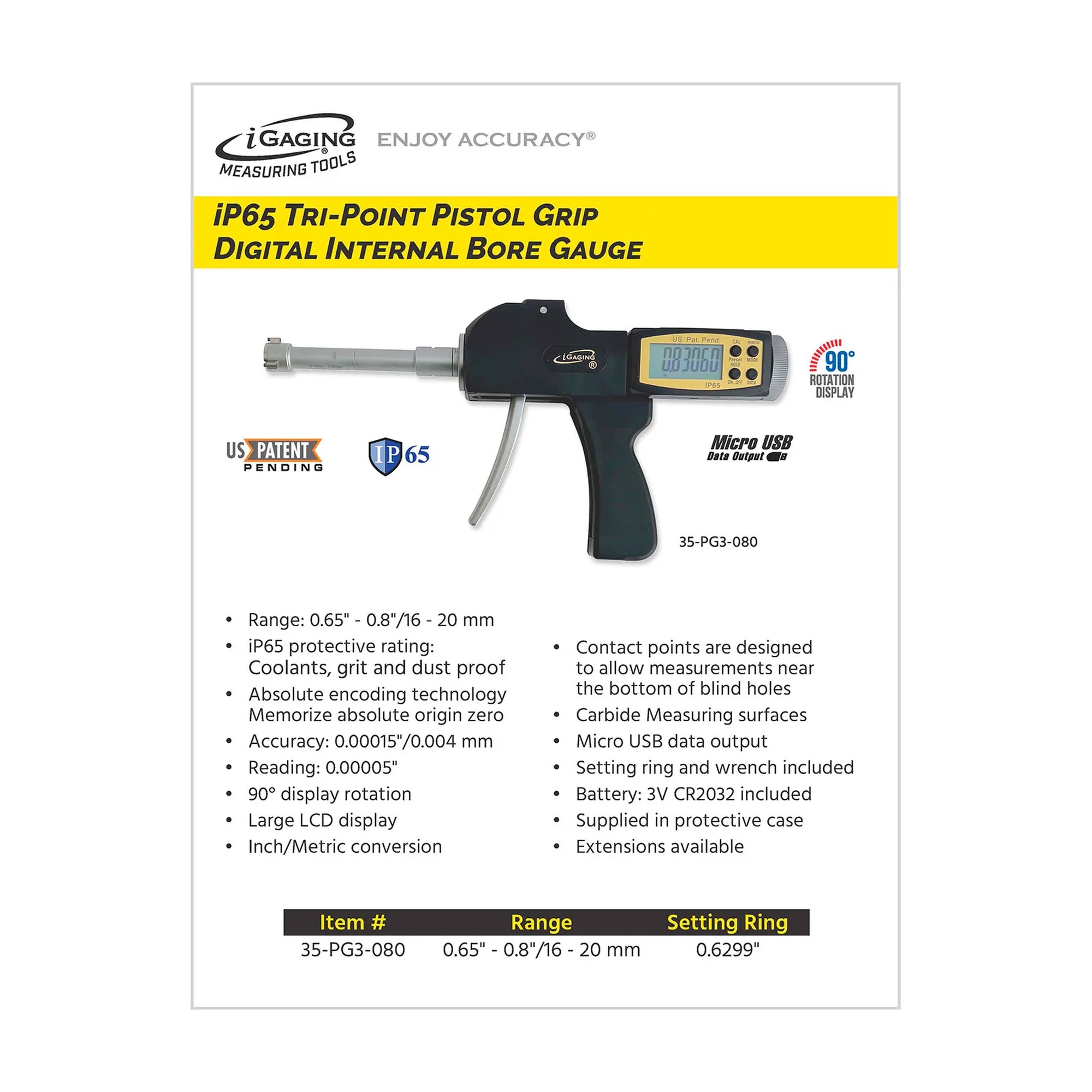

The gauge has an IP65 protective rating for resistance to coolants, grit, and dust. It uses absolute encoding with a memorized origin zero, a large LCD with 90-degree display rotation, inch/metric conversion, and a 0.00005-inch reading. Carbide measuring surfaces are used on the contact points, and a micro USB data output is provided. A setting ring, wrench, 3V CR2032 battery, and protective case are included.

Key Features:

• Three-point internal measurement: Supports bore diameter checks across the 0.65 to 0.80 inch range.
• IP65 protection: Helps protect the gauge from coolants, grit, and dust in shop environments.
• Absolute origin setting: Lets users retain a zero reference for efficient repeat measurements.
• Rotating LCD display: Allows the display to be positioned for easier viewing during measurement.
• Carbide contact points: Provides durable measuring surfaces for internal measurement work.
• Micro USB data output: Enables transfer of measurement data through a micro USB connection.

Choose this digital internal micrometer for bore measurement tasks that benefit from a pistol-grip format, three-point contact, digital readout, and protected operation in shop conditions.
