Digital Machine Fence Readout with 12 in. Range

This digital readout helps machine operators monitor linear movement on milling machines, router tables, planers, and table saw fences. It provides a clear digital reference for setting positions and controlling depth during adjustments.

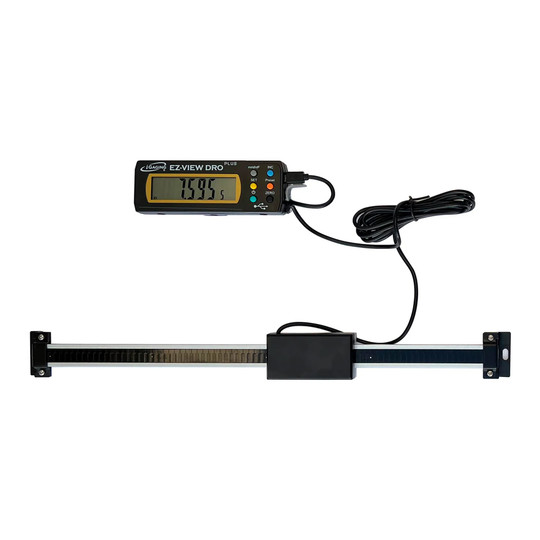

The black readout measures from 0 to 12 inches with 0.001 inch accuracy and offers 0.001 inch, 0.01 mm, 1/64 inch, decimal inch, fractional inch, and metric readings. A magnetic remote display connects with a 50-inch cord, and the floating-zero function lets the user reset the reference point anywhere within the operating range. Mounting brackets support vertical or horizontal installation, and the rule can be cut to suit a specific application.

Key Features:

• Multiple reading formats: Lets users view measurements in decimal, fractional, or metric formats.
• Floating zero: Allows a new zero reference point to be set with the push of a button.
• Magnetic remote display: Supports accessible display placement during installation and operation.
• Flexible mounting: Includes brackets for vertical or horizontal positioning.
• Cut-to-fit rule: Allows the rule length to be tailored to the installation.

Choose this digital readout for machine-table and fence setups that need a visible linear measurement reference, flexible display placement, and selectable measurement formats.
