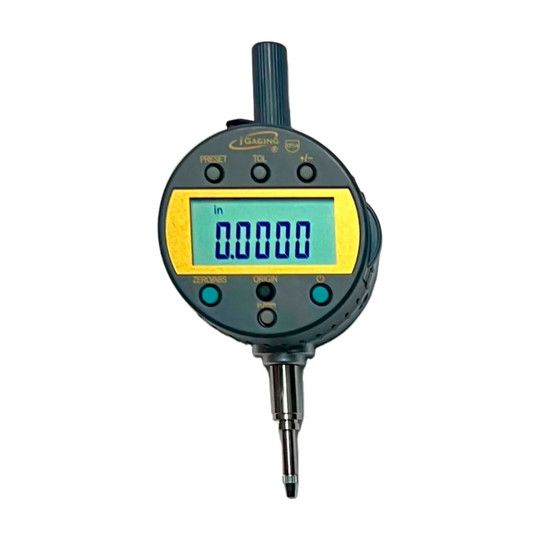

Absolute Digital Test Indicator with USB Data Output

This absolute digital test indicator helps inspectors, machinists, and quality-control teams measure small variations during precision setup and inspection work. Its digital display supports clear readings while the rotating display helps users position the readout for viewing.

The indicator has a 0 to 0.5 inch measuring range and 0.0005 inch (0.01 mm) resolution. Absolute encoding retains the selected origin, and inch/metric conversion, preset, and tolerance functions support measurement workflows. It features an IP54 protective rating, high-contrast LCD, 330-degree display rotation, 3/8 inch stem diameter, #4-48 thread size, ceramic contact point, lug back, flat back, SPC/USB data output, smart wireless data output for Bluetooth devices, and an included 3V CR2032 battery.

Key Features:

• Absolute encoding: Memorizes the absolute origin to support consistent reference measurements.
• Fine resolution: Provides 0.0005 inch or 0.01 mm resolution for detailed measurement readings.
• Rotating LCD: Turns up to 330 degrees to help users view measurements from different working positions.
• IP54 protection: Offers resistance to moisture and dust in inspection environments.
• Data output options: Supports SPC/USB output and smart wireless output for transferring measurement data.

A practical choice for precision inspection tasks requiring an absolute digital reading, fine resolution, selectable measurement units, and data-output capability.
