This articulating arm magnetic base supports test indicators and dial gauges during measurement and inspection work. It helps machinists and inspectors position a gauge securely on ferrous workpieces or machine tables.
The arm has three articulating joints controlled by a single locking knob and a 150° working range. Its magnetic base is switched on or off with a rotary knob and provides 132 lb (60 kg) of magnetic pull when engaged. The base measures 60 x 50 x 55 mm and includes precision contact surfaces with a bottom V. It accepts dovetail-clamp test indicators and holds dial gauges by a 3/8 in. or 8 mm stem or by a lug back plate.
Key Features:
A practical choice for positioning compatible indicators and dial gauges where a magnetic attachment point is available.
| Country of Origin: | CN |
| Product Depth: | 2.75 |
| Product Height: | 3.5 |
| Product Type: | Test Indicators |
| Product Width: | 11 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 7602021 |
| Min Outside Diameter: | None in |
| Slot Size: | 6.5mm |
| Data Output: | No |
| Description: | Magnetic Base |
| Fraction Option: | No |
| Manufacturers Part Number: | 7602021 |
| Power Source: | None |
| Style: | General Purpose |
| Type: | Magnetic Base |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 2.75 in |
| Height: | 3.50 in |
| Depth: | 11.00 in |
No additional information available.
Fowler
This electronic test indicator set helps machinists and inspection professionals position an indicator for measurement and alignment work. It combines an electronic indicator with a flexible magnetic...
iGAGING
This mini magnetic-base test indicator is designed for inspection and measurement work where users need to position an indicator securely on a metal surface. Its adjustable arm and fine adjustment...
iGAGING
This digital dial indicator helps inspection and maintenance professionals measure small changes in position or movement. It is suited for test and inspection tasks that require a readable digital...
Mitutoyo
This dial indicator and magnetic base set supports inspection and measurement work for machinists, quality-control teams, and maintenance professionals. It provides a stable setup for positioning the...
InSize

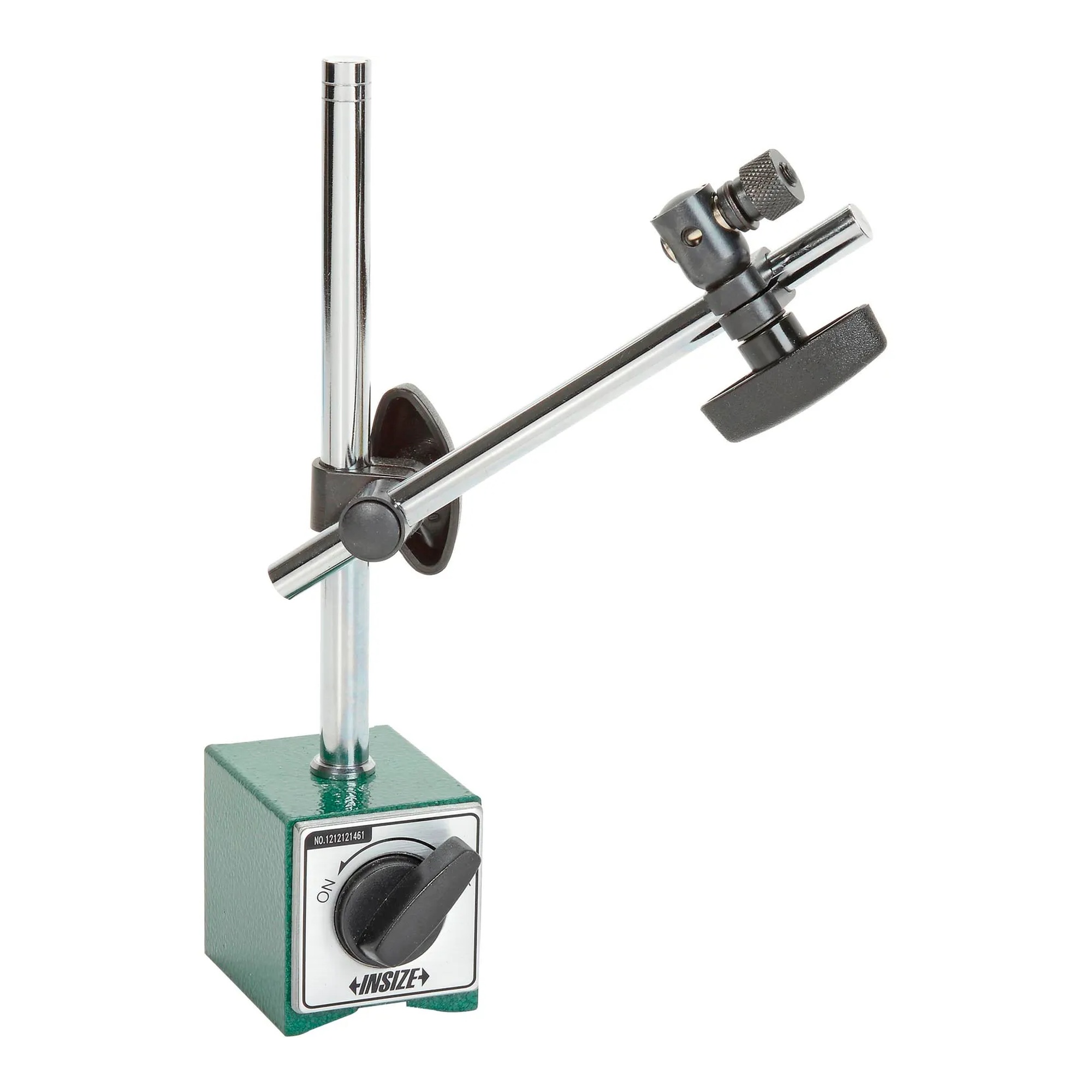

This universal magnetic stand is designed for users working with electronic, dial, and dial test indicators. It provides a dedicated mounting option for indicator-based measurement and inspection...
