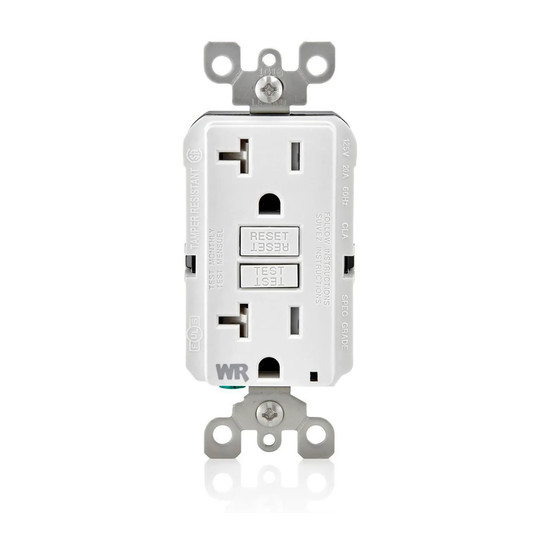

20A Self-Test Weather-Resistant Tamper-Resistant GFCI Duplex Receptacle, White

This 20A self-test GFCI duplex receptacle is for electricians and facility teams who need ground-fault protection at receptacle locations. Its weather-resistant and tamper-resistant design supports dependable power access while helping protect against ground faults.

The white duplex receptacle periodically performs an automatic internal test and checks itself within 3 seconds of initial power-up. It continues to detect and trip on an actual ground fault during a self-test. A status indicator communicates power and protection status and can indicate a line/load reversal. Its reset lockout prevents resetting when the device is not wired or operating correctly. The receptacle measures 1.69 in. wide, 4.21 in. deep, and 1.4 in. high.

Key Features:

• Automatic self-test: Periodically verifies the device's ability to respond to a ground fault.
• Ground-fault response: Detects and trips on an actual ground fault, including while a self-test is underway.
• Status indicator: Provides visible feedback on power and protection status, including line/load reversal indication.
• Reset lockout: Prevents reset when the receptacle is not wired or operating correctly.
• Weather- and tamper-resistant design: Provides a receptacle configuration suited to applications requiring these protective features.

Choose this white 20A duplex GFCI receptacle when a self-testing, weather-resistant, tamper-resistant device with visible status feedback and reset lockout is required.
