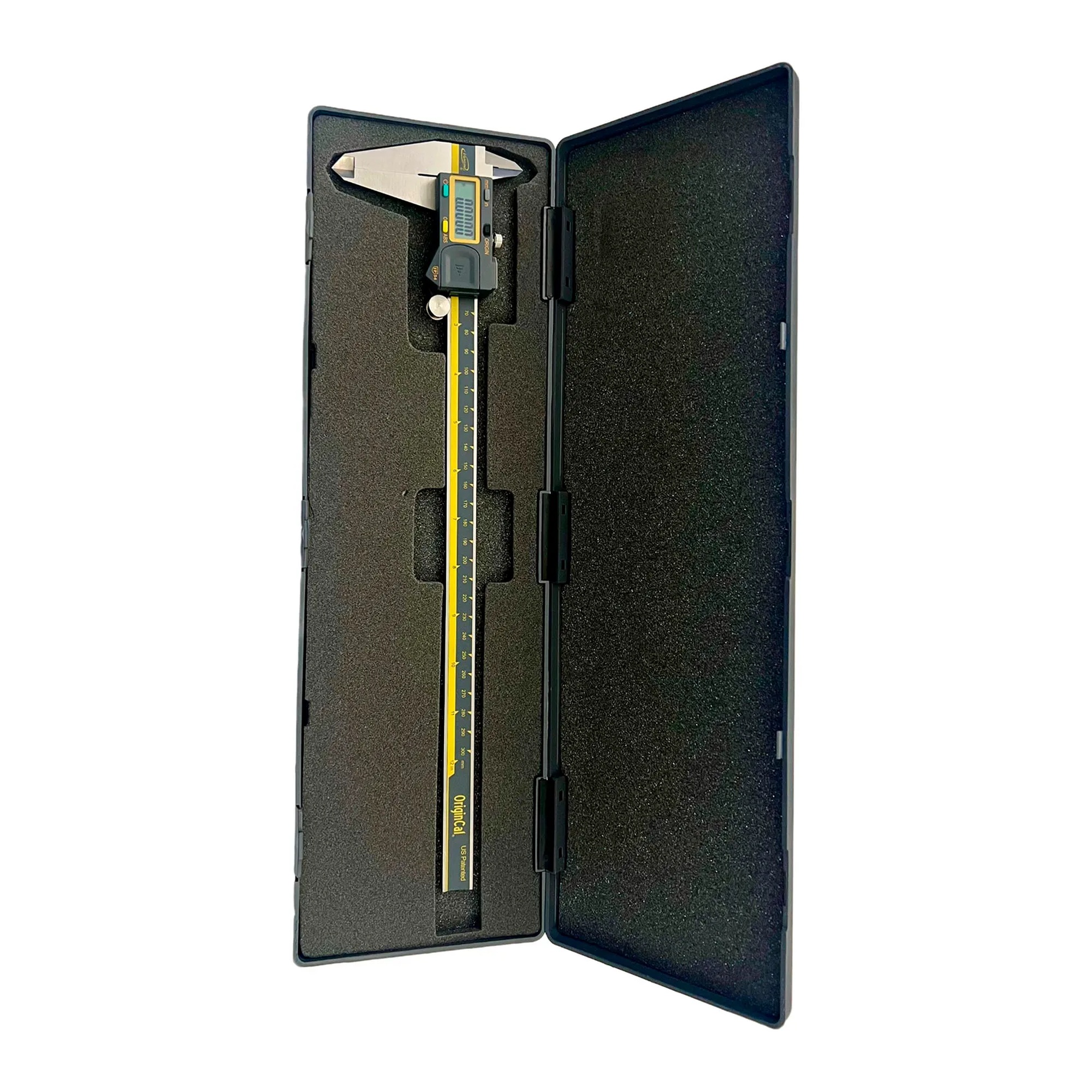

This digital caliper is designed for measurement professionals who need to check dimensions with a clear electronic readout. It provides inch, metric, and fractional measurement options for routine inspection and measurement tasks.
The caliper measures from 0 to 12 inches (0 to 300 mm) and uses absolute encoding to retain the selected origin zero. Its stainless steel frame has an IP54 protective rating for moisture and dust resistance. The high-contrast LCD supports inch, metric, and fractional conversion, with 0.0005 in./0.01 mm/1/128 in. resolution and 0.001 in./0.02 mm accuracy. SPC/USB data output is provided, and a 3V CR2032 battery and protective case are supplied.
Key Features:
Choose this digital caliper when a 12-inch measuring range, absolute-origin operation, and multiple display units are needed in a moisture- and dust-resistant design.
| Country of Origin: | CN |
| Material: | Stainless Steel |
| Product Depth: | 5 |
| Product Height: | 1.14 |
| Product Type: | Calipers |
| Product Width: | 16.69 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 100-700-12 |
| Depth Rod Shape: | Rectangular |
| Max Measurement: | 12 in/300 mm |
| Metric or Inch: | Inch, Metric in |
| Resolution/Graduation: | 0.0005 |
| Battery Type: | CR2032 |
| Case: | Yes |
| Data Output: | Yes |
| Digital: | Yes |
| Fraction Option: | Yes |
| Frame Material: | Stainless Steel |
| IP Rating: | IP54 |
| Inside Diameter Contact Point Material: | Stainless Steel |
| Manufacturers Part Number: | 100-700-12 |
| Measuring Face Material: | Hardened Stainless Steel |
| Mechanical Or Digital: | Digital |
| Power Source: | 3V Lithium Battery |
| Style: | General Purpose |
| Thumb Roller: | Yes |
| Type: | Digital Caliper |
| Long Form Calibration Certificate Included: | Yes |
| Shipping Method: | Parcel |
| Width: | 5.00 in |
| Height: | 1.14 in |
| Depth: | 16.69 in |
No additional information available.
