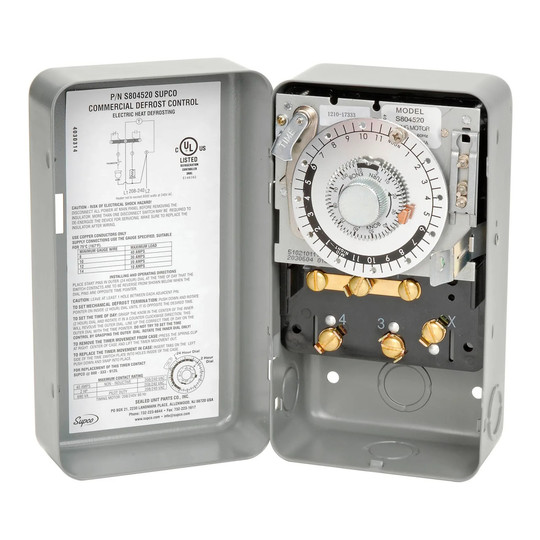

Time-Initiated, Time-Terminated Defrost Control

This electromechanical defrost control is for refrigeration professionals who need to schedule and end defrost cycles. It supports adjustable timing for electric heat, hot gas, or off-cycle defrost arrangements.

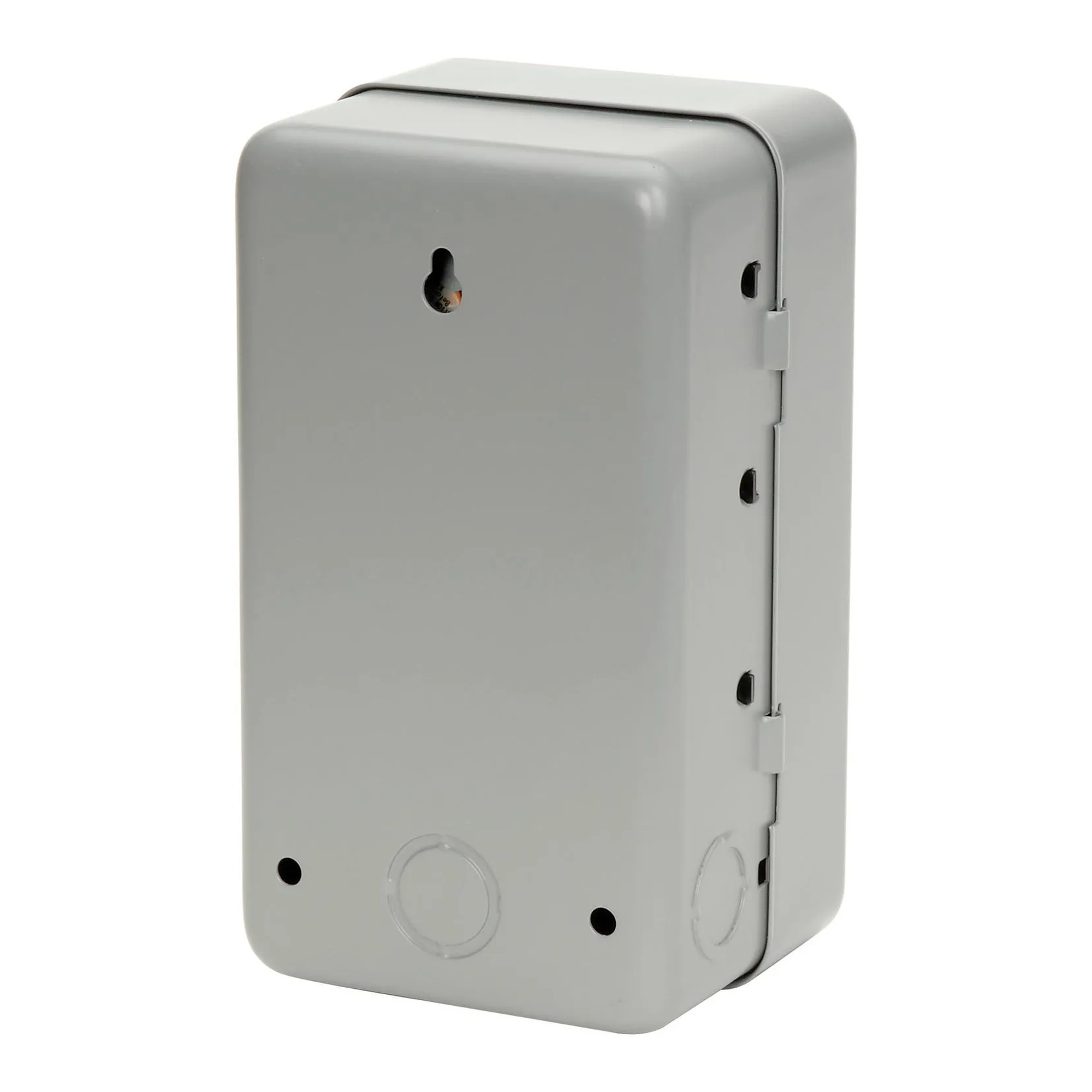

A heavy-duty synchronous motor drives the control. Defrost initiation can be adjusted from one to six times daily, and cycle duration is adjustable from 4 to 110 minutes in 2-minute increments. The heavy-duty steel case includes electrical knockouts on the sides, back, and bottom and measures 4.875 in. wide, 9.125 in. deep, and 4.625 in. high.

Key Features:

• Adjustable daily scheduling: Set defrost initiation from one to six times per day to match operating requirements.
• Adjustable cycle duration: Select a defrost period from 4 to 110 minutes in 2-minute increments.
• Multiple defrost arrangements: Supports electric heat, hot gas, and off-cycle defrost contact arrangements.
• Steel enclosure: Provides a heavy-duty case with electrical knockouts on the sides, back, and bottom.
• Synchronous motor: Provides the timing operation for scheduled defrost cycles.

Choose this control when adjustable defrost frequency and duration are needed for compatible electric heat, hot gas, or off-cycle defrost arrangements.
