Test Indicators

Test indicators help machinists, inspectors, quality-control teams, and maintenance professionals monitor small dimensional variations, movement, and position changes. Used in setup, alignment, surface inspection, and precision checking tasks, this category includes dial and digital indicator options along with magnetic bases, flex-arm holders, and dedicated stands for positioning an indicator at the work area.

Product Display:
Helpful Buying Guide

How to Choose a Test Indicator

Start with the measurement style, range, reading format, and mounting arrangement that fit the work. The available options include dial test indicators for close comparative readings, dial and digital indicators with up to 1 inch of travel, and magnetic supports for stable positioning.

Visual Guide

Popular examples in this category

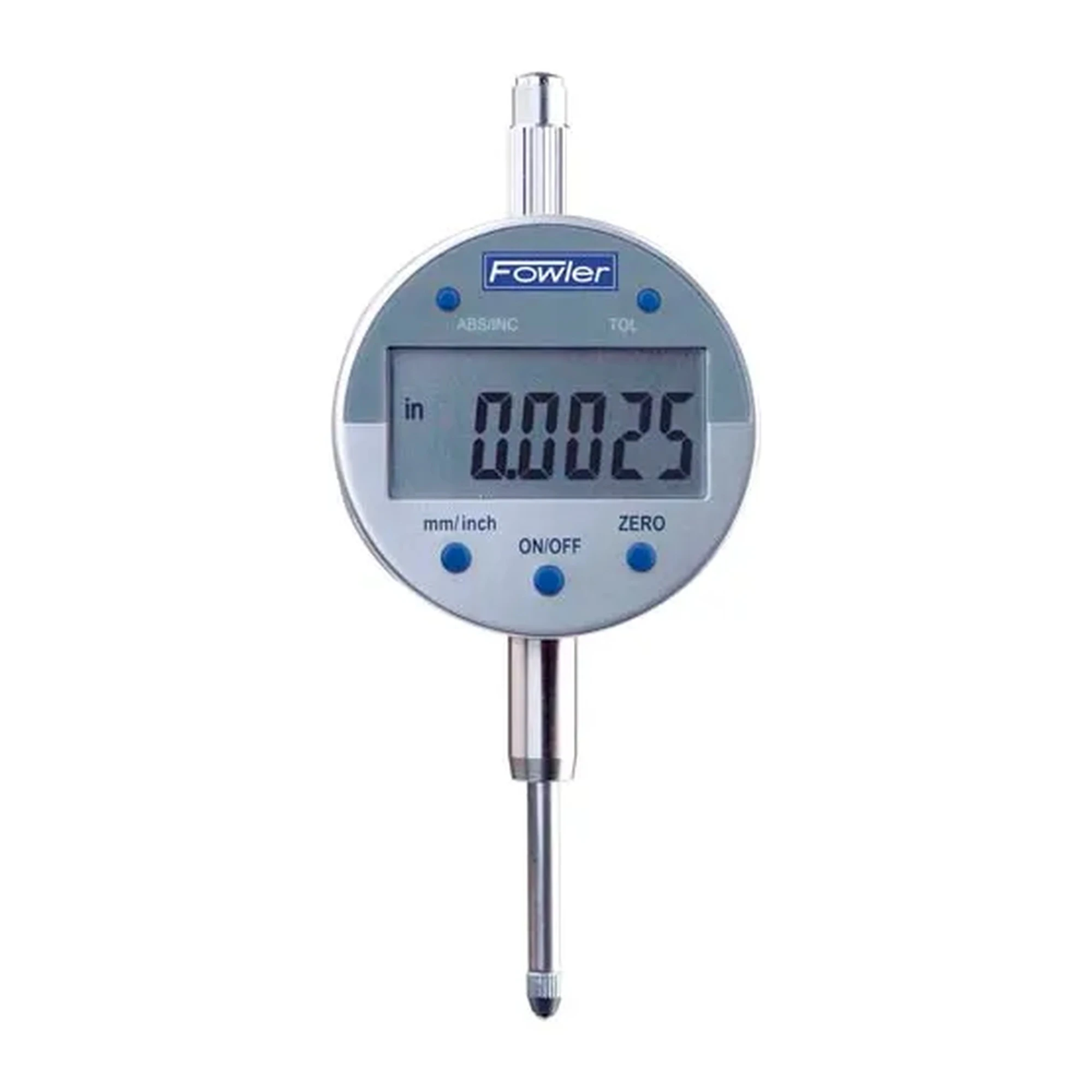

Electronic Test Indicator with Lug Back, 0–1 in./0–25 mm RangeElectronic Test Indicator with Lug Back, 0–1 in./0–25 mm RangeWBB228474Electronic Test Indicator with Lug Back, 0.5 in / 12.5 mmElectronic Test Indicator with Lug Back, 0.5 in / 12.5 mmWBB228475Dial Indicator with Magnetic BaseDial Indicator with Magnetic BaseWBB611905Water-Resistant Dial Indicator with Magnetic BaseWater-Resistant Dial Indicator with Magnetic BaseWBB880303
Use Cases

Check small changes during setup and inspection

Test indicators are used to observe displacement, positional changes, dimensional variation, and alignment during machining, maintenance, quality-control, and inspection work.

How to Choose

Match range, graduations, and display type

Choose a 0.060 inch test-indicator range for close comparative movement checks, or a 0 to 1 inch range where that travel capacity is needed. Consider dial graduations or digital resolutions based on the readings required.

Applications

Position the indicator for the work area

Magnetic bases, V-grooved bases, swivel clamps, flex arms, lug backs, stems, and dovetail mounts support different compatible measurement setups and viewing positions.

Additional Information

Consider reference, protection, and data needs

Available features include absolute and incremental modes, floating zero, repositionable reference points, moisture and dust protection, rotating displays, tolerance markers, and data output on select digital models.

0.060 in.Test-indicator range

Available on dial test indicator options for comparative displacement readings.

0–1 in.Indicator travel range

Represented across dial and digital indicator options.

0.0005 in.Fine increment

Available on select dial test indicators and digital models.

330°LCD rotation

Available on an absolute digital test indicator for viewing adjustment.

Comparison Guide

Compare Test Indicator Types and Supports

Use this overview to compare the product types and features represented in the category.

Product typeBest suited forRepresented features
Dial test indicatorComparative checks of small movement, variation, alignment, and surface inspection0.060 inch range, 0.0005 inch graduations, 0-15-0 dial, adjustable dial positioning, carbide contact options
Dial or digital indicatorMonitoring position changes and dimensional variation across up to 1 inch of travelDial or digital readings, 0.001 inch graduations or 0.0005 inch/0.01 mm resolution, reference features, selected protection and data-output options
Magnetic base, flex arm, or standPositioning compatible indicators at the work areaV-grooved or magnetic bases, on/off switches, swivel clamps, fine adjustment, flex arms, and universal indicator support
Planning Guide

Plan the right fit before choosing

Select the indicator style

Choose dial or digital readings for your workflow

Dial test indicators provide direct visual readings and are represented with 0-15-0 dial layouts for reading deviations from a center position. Dial indicators are available with 0 to 1 inch travel and 0.001 inch graduations. Digital and electronic indicators offer clear electronic readings; select models provide inch/metric conversion, fractional-inch readings, absolute and incremental modes, or a floating zero reference.

  • Use a dial test indicator for 0.060 inch comparative measurement tasks.
  • Choose a dial indicator for 1 inch travel options with dial-based readings.
  • Choose digital or electronic models when direct unit switching, digital modes, or data output is needed.
Plan the mounting setup

Match the holder, base, and mounting features to the workspace

Indicator positioning options range from lug back, stem, and two-sided dovetail mounting to magnetic bases and flexible arms. Magnetic base options include V-grooved designs for flat or round surfaces, on/off switches, swivel clamps, fine adjustment, and flex arms with cam locks. A universal magnetic stand is also available for electronic, dial, and dial test indicators.

  • Check compatibility with lug back, 3/8 inch stem, or dovetail mounting arrangements.
  • Use a magnetic base or stand when a dedicated indicator support is required.
  • Consider a flex arm or swivel clamp when the indicator must be positioned at different angles.
Compare work-environment features

Look for contact, visibility, and protection details

Contact points include carbide, tungsten carbide, ball-point, small-flat, and large-flat options on represented products. Viewing and comparison features include tilted dials, swivel arcs, a rotating LCD, tolerance markers, and reference points. Select indicators add IP54 or IP65 protection, while a water-resistant dial model uses rubber bellows, O-rings, and a sealed back plate to help protect key areas.

  • Match the contact style to the measurement surface where interchangeable options are needed.
  • Consider adjustable displays or dials for easier viewing.
  • Choose a protected model when dust or moisture resistance is an important factor.
FAQ

Common questions before buying

What is the difference between a dial test indicator and a dial indicator?

The represented dial test indicators have a 0.060 inch range and 0.0005 inch graduations for comparative movement checks. Represented dial indicators offer up to 1 inch of travel and 0.001 inch graduations.

Are digital test indicators available in inch and metric units?

Select electronic and digital models provide direct inch/metric readings, with stated resolutions of 0.0005 inch or 0.01 mm. One digital model also displays fractional-inch increments.

What mounting options are available?

Available arrangements include lug back, 3/8 inch stem, two-sided dovetail mounting, magnetic bases, flex arms, swivel clamps, and a universal magnetic stand.

Which options offer dust or moisture protection?

One dial indicator is rated IP65, one absolute digital test indicator is rated IP54, and a water-resistant dial indicator includes rubber bellows, O-rings, and a sealed back plate.

!
