Storage near the task
Plan where this cabinet will travel and where it will stand during work. Check the route, floor transitions, and turning space against its dimensions and caster specifications.
Save 10% On Your First Order! Coupon Code: NEWCUSTOMER10
Dimensions on this L-Series 6-Drawer Compact Mobile Cabinet 18'' W come in at 18"W x 21"D x 35.125"H. Designed for secure, customizable storage, each drawer handles up to 100 lbs and runs on 100% full-extension slides fitted with ergonomic handles. An Econo Locking System with a keyed locking mechanism and 4'' casters round out the build.
Key Features:
A lifetime warranty covers drawer rolling mechanisms, while a one-year limited warranty applies to the cabinet itself, making this a dependable choice for high-demand workspaces. Shop with confidence at FilingSupplies.
| Documentation: | Documentation |
| Documentation: | Drawer Configuration |
| Product Width: | 1' 6'' (18'') |
| Product Depth: | 1' 9'' (21'') |
| Product Height: | 2' 11-1/8'' (35.125'') |
| Core Material: | Steel |
| Core Type: | Compact Mobile Cabinet |
| Number of Drawers: | 6 |
| Drawer Count & Height: | Two 3'' H, Four 5'' H |
| Drawer Dividers: | Yes |
| Bank Configuration: | Single Bank |
| Caster Type: | 4'' - 2 Rigid 2 Swivel Casters With Brakes |
| Material: | Steel |
| Assembly: | Assembled |
| Warranty: | 1-Year Manufacturers Limited |
| Availability: | Ships in 20-30 Business Days |
| Drawer Height - # of Compartments: | 3''H-9 / 5''H-9 |
| Width: | 18.00 in |
| Height: | 35.13 in |
| Depth: | 21.00 in |
No additional information available.
The L3BBD-3001L3B provides 6 drawers for organizing tools and parts. Use its specific drawer arrangement and included accessories to plan where each item belongs, with regularly used items in a consistent location.
Plan where this cabinet will travel and where it will stand during work. Check the route, floor transitions, and turning space against its dimensions and caster specifications.

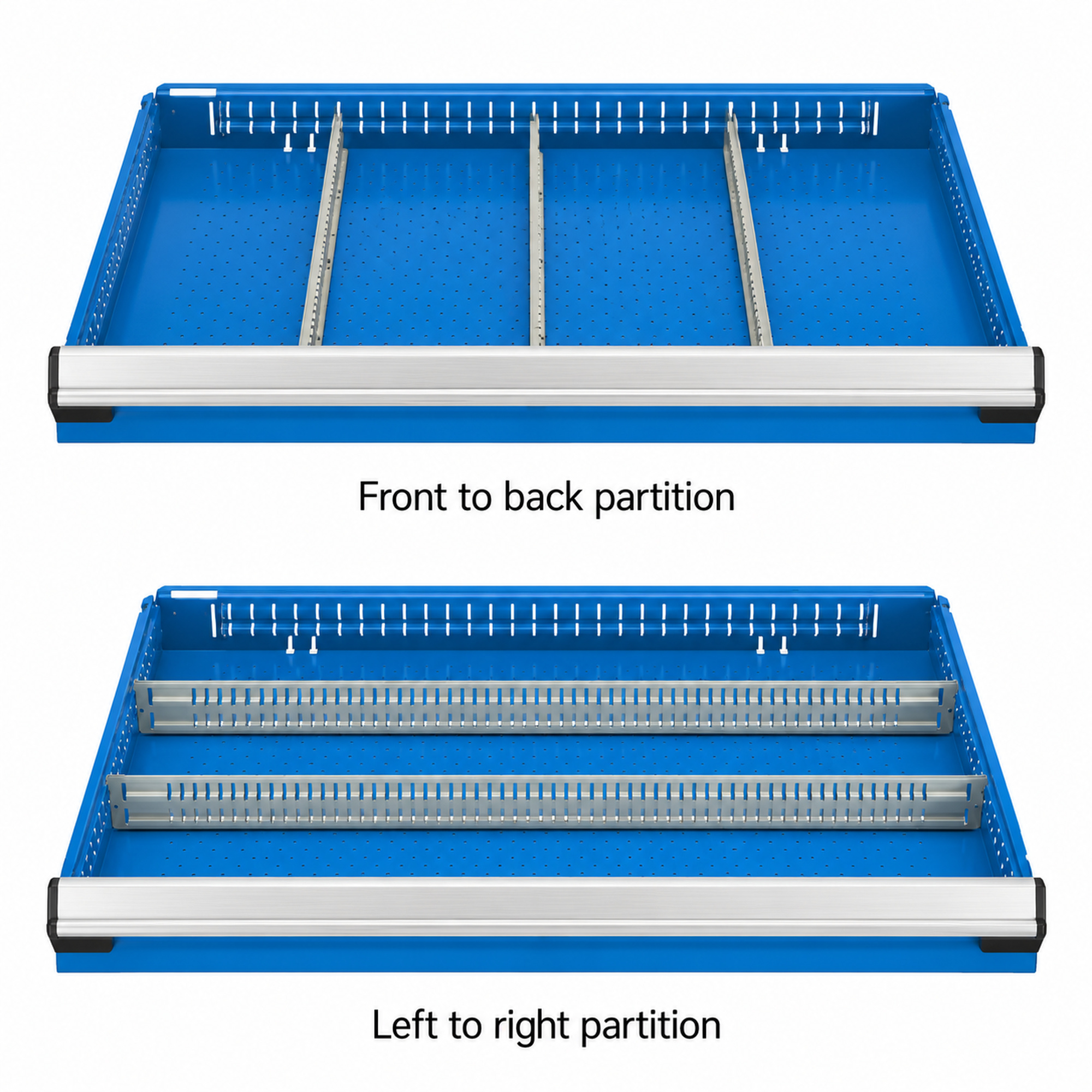

The listed drawer arrangement is: Two 3'' H, Four 5'' H. This configuration includes drawer dividers. Match the drawer heights and organization accessories to the tools and parts you intend to store.
The listed cabinet measures 1' 6'' (18'') wide, 1' 9'' (21'') deep, and 2' 11-1/8'' (35.125'') high. Check the manufacturer’s loading and movement instructions before moving a loaded cabinet. A per-drawer rating does not establish a total rolling-load rating.
This configuration includes drawer dividers. Review the configuration document for the supplied arrangement.
The outside dimensions are 1' 6'' (18'') wide, 1' 9'' (21'') deep, and 2' 11-1/8'' (35.125'') high. Allow additional room for drawer opening and safe access; these outside measurements are not usable drawer dimensions.
No. Check the manufacturer’s overall cabinet limits and loading instructions; do not multiply a per-drawer rating into a total cabinet capacity.
