Calipers

Calipers are dimensional measuring tools used to check parts, materials, and workpieces in commercial shop, inspection, layout, maintenance, machining, and quality-control work. The category includes tools for outside, inside, depth, step, and internal-dimension measurement, with dial, digital, mechanical vernier, and universal configurations for routine checks through large-workpiece inspection.

Product Display:
Helpful Buying Guide

Choose a Caliper for the Measurements You Need to Make

Start with the dimensions and features you need to measure, then compare range, display style, reading format, environmental protection, and data-transfer needs. The available calipers span compact 0–6 in./150 mm tools through models for workpieces up to 60 in./1500 mm, plus specialized inside and universal designs.

Visual Guide

Popular examples in this category

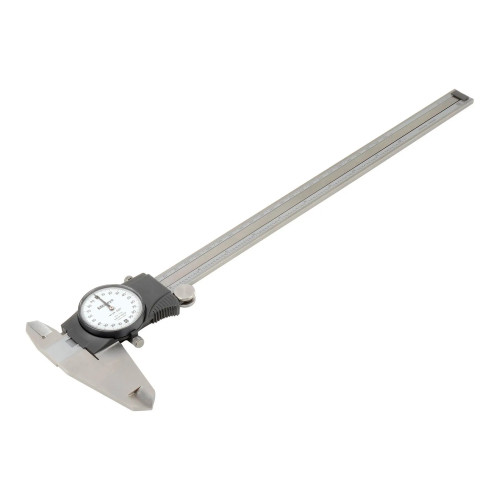

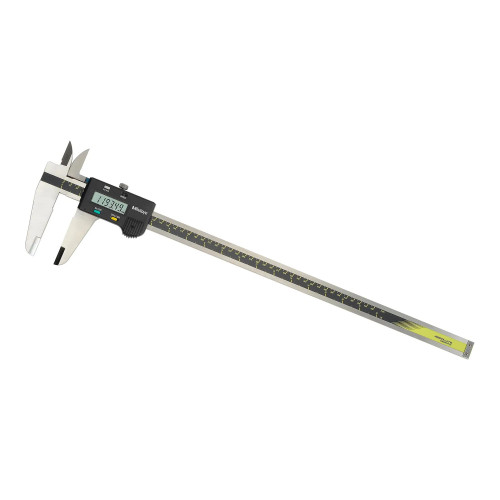

0–12 in. White Dial Caliper0–12 in. White Dial CaliperWBB611415Stainless Steel Digital Caliper with Data Output, 0–18 in./450 mmStainless Steel Digital Caliper with Data Output, 0–18 in./450 mmWBB611443Stainless Steel Digital Caliper with Large Display, 0-6 in./150 mm RangeStainless Steel Digital Caliper with Large Display, 0-6 in./150 mm RangeWBB22840760-Inch IP66 Carbon Fiber Caliper with Data Output60-Inch IP66 Carbon Fiber Caliper with Data OutputWBB611480
Use Cases

Match the tool to the measurement task

Four-way calipers can handle outside, inside, depth, and step measurements. An inside caliper is intended for internal dimensions, while a universal model with interchangeable arms supports features such as diameters, shoulders, collars, tapers, dovetails, and grooves.

How to Choose

Select range, display, and functions

Choose a measuring range that covers the workpieces you inspect. Compare analog dial, digital, and mechanical vernier readouts, then consider inch, metric, or fractional formats, absolute or incremental functions, and the need for a large display.

Applications

Support shop and inspection routines

These calipers are suited to dimensional checks in inspection, machining, shop, layout, maintenance, and quality-control work. Long-range models support larger parts, while compact 6 in./150 mm models fit common part-measurement tasks.

Additional Information

Consider working conditions and documentation

For active or demanding work areas, compare IP54, IP65, and IP66 protection options. When readings need to be documented, selected models provide USB, SPC/USB, wired data output, or integrated wireless transmission.

0–60 in.Available measuring range

The represented range extends from compact 6 in. models to a 60 in. caliper for large workpieces.

4-wayMeasurement capability

Selected calipers measure outside, inside, depth, and step dimensions.

IP54–IP66Protection options

Available protection levels help address moisture, dust, grit, coolants, or wet conditions, depending on the model.

0.0005 in.Fine digital increment

Selected digital models provide readings in 0.0005 in. or 0.01 mm increments.

Comparison Guide

Compare Caliper Types

Use this overview to narrow the type of caliper that best matches your measurement routine.

Caliper typeBest fitAvailable features to compare
Dial or mechanical vernierAnalog or metric-scale measurement workWhite dial readout; 500 mm metric scale; fixed and movable jaws
Digital four-way caliperRoutine outside, inside, depth, and step checksLarge display options; inch, metric, and fractional formats; absolute or incremental functions; selected data output
Specialized or long-range caliperInternal dimensions, large workpieces, or varied part features0–8 in. inside measurement; ranges up to 60 in.; interchangeable arms; IP protection; wired or wireless data transfer
Planning Guide

Plan the right fit before choosing

Plan Your Measurement Needs

Identify the dimensions and range required

The first choice is what must be measured. Standard four-way calipers are available for outside, inside, depth, and step dimensions. For internal work, consider the digital display inside caliper. For varied large-part features, a universal caliper with interchangeable measuring arms provides broader measurement capability.

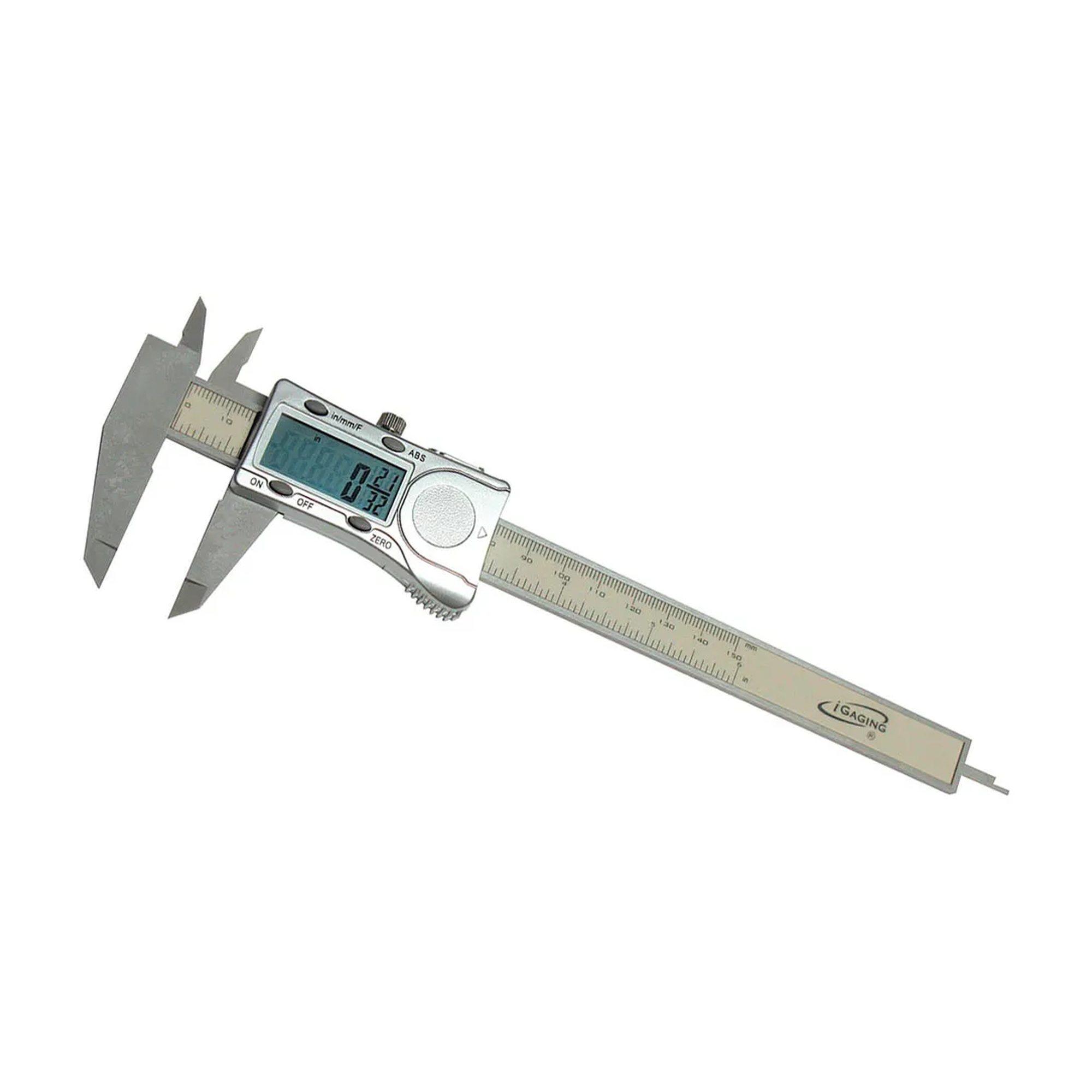

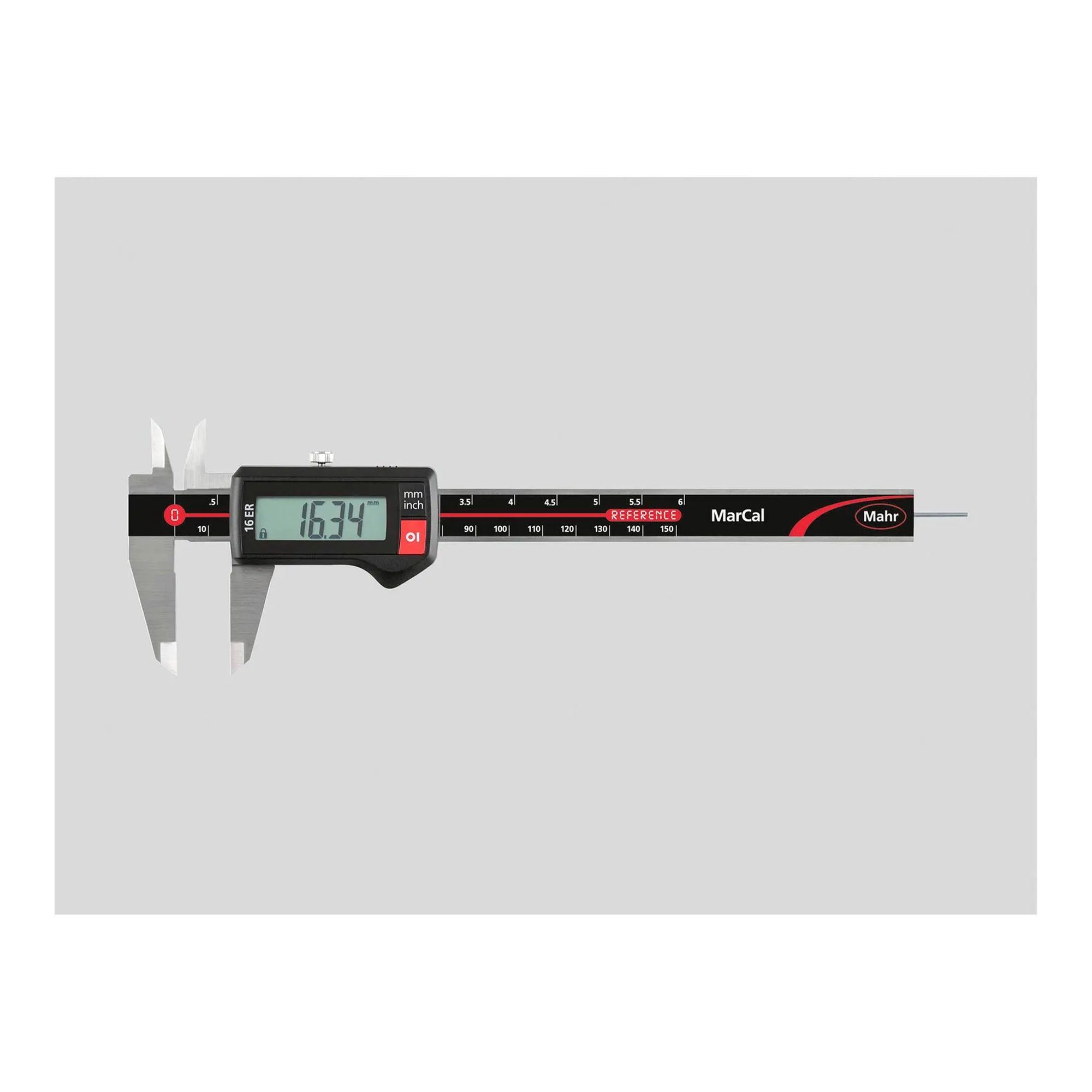

  • Choose 0–6 in./150 mm models for common part measurements.

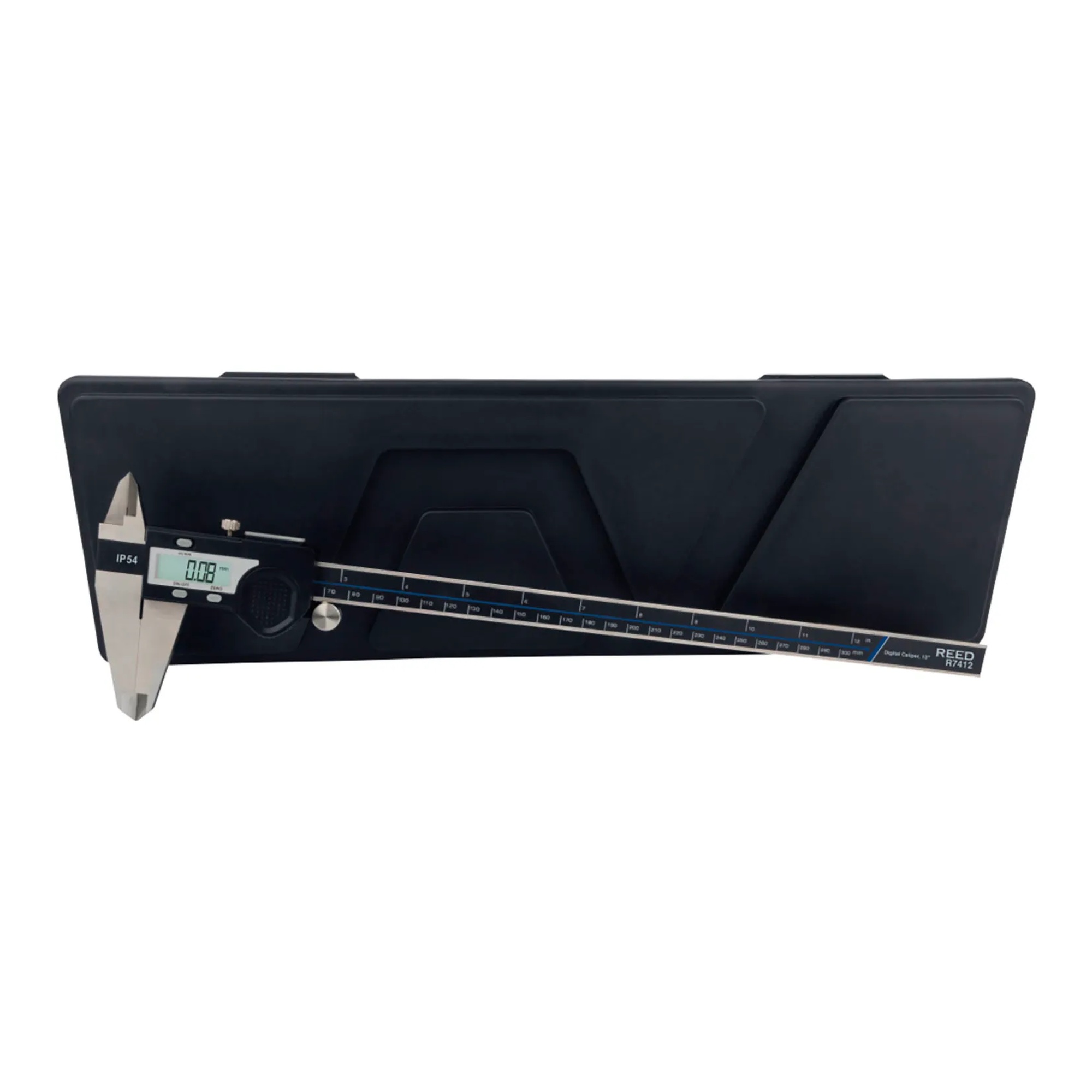

  • Select 0–12 in./300 mm or 0–18 in./450 mm ranges for larger routine work.
  • Consider 0–24 in./600 mm, 0–40 in./1000 mm, or 0–60 in./1500 mm tools for large workpieces.

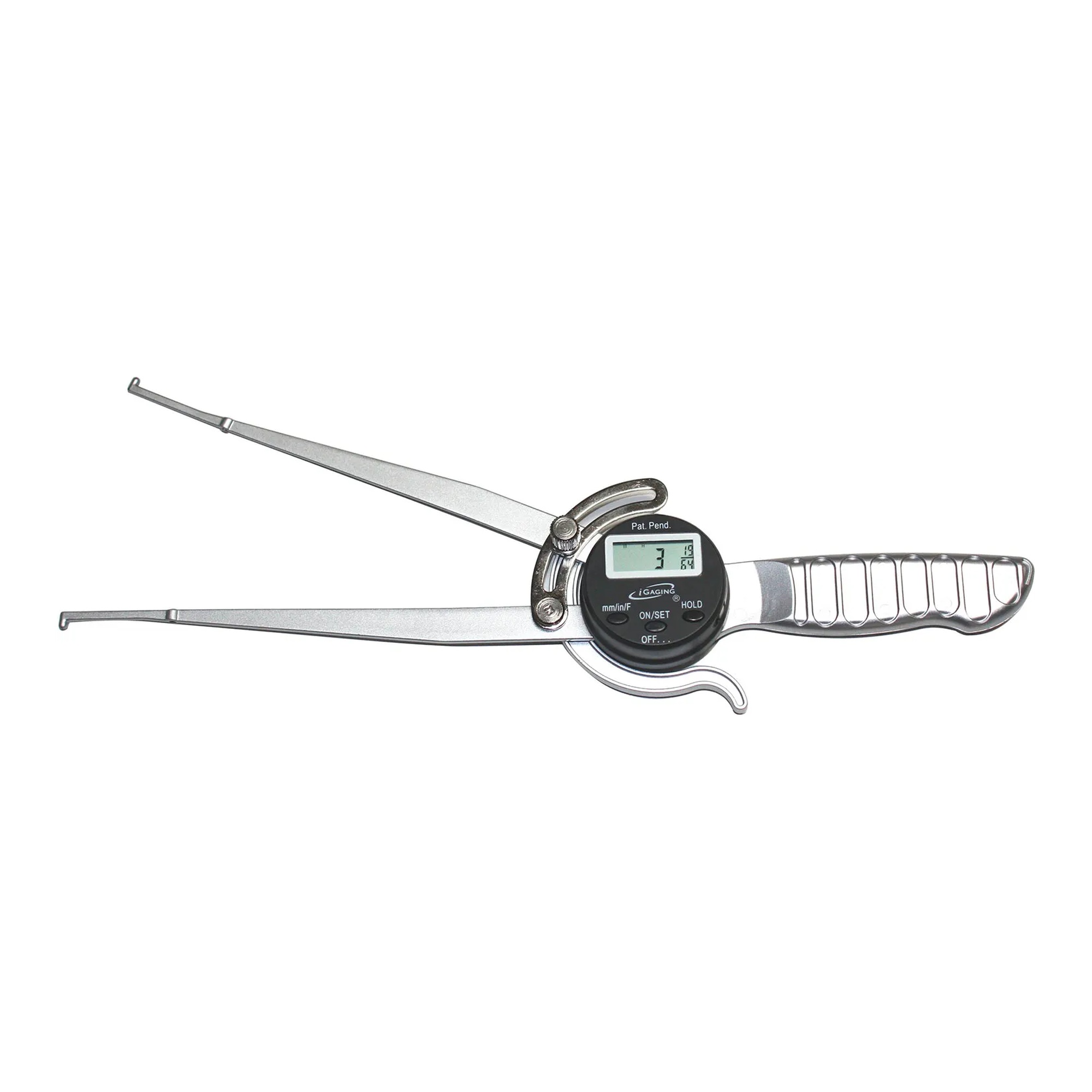

  • Use an inside caliper for internal dimensions within its 0–8 in. range.
Compare Readouts and Data Features

Choose a reading style that fits the job

Dial calipers provide an analog white-dial readout, while mechanical vernier calipers use metric scale markings. Digital models offer clear electronic displays, with selected models providing large or high-contrast screens. Digital options may also offer inch, metric, and fractional reading formats, along with absolute, incremental, zero, or absolute-origin functions.

  • Choose a large display or LCD when easy viewing is a priority.
  • Compare inch/metric operation with models that also offer fractional readings.
  • Select data output when transferring readings is part of the workflow.
  • Consider wireless transmission for supported universal-caliper measurement work.
Review Construction and Work-Area Protection

Match the caliper to its operating environment

Construction choices include hardened stainless steel, stainless steel frames, carbon fiber frames, polycarbonate frames, and an aluminum body with plastic jaws. Certain models include protective ratings to help resist moisture, dust, grit, coolants, or wet working conditions. Storage cases are included with several models.

  • IP54 options help resist moisture and dust in shop environments.
  • IP65 models help protect against coolants, grit, and dust.

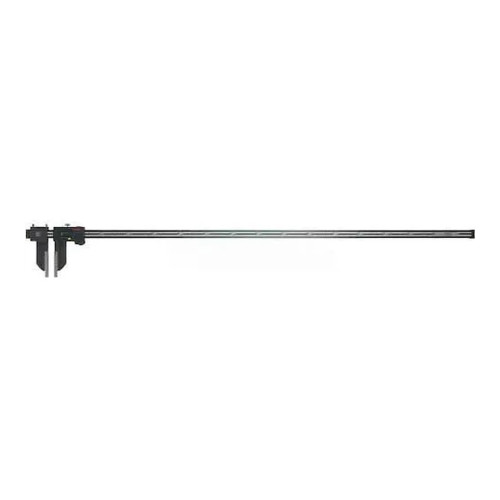

  • An IP66 model helps support use in wet working conditions.

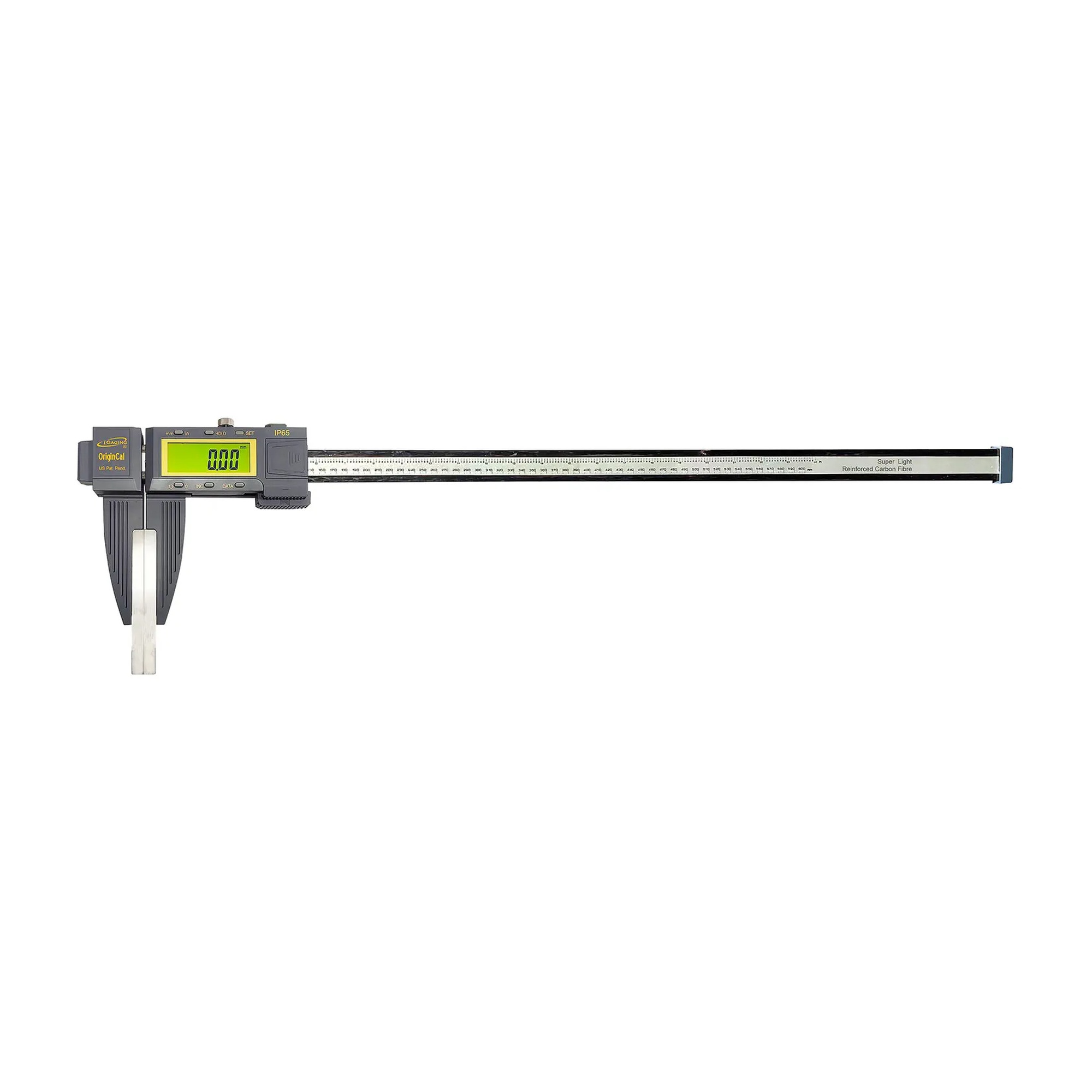

  • Carbon fiber frames provide a lightweight body on selected long-range digital calipers.
FAQ

Common questions before buying

What can a four-way caliper measure?

Selected four-way calipers measure outside, inside, depth, and step dimensions.

Which calipers are available for large workpieces?

Represented long-range options include 0–18 in./450 mm, 0–24 in./600 mm, 0–40 in./1000 mm, and 0–60 in./1500 mm models, as well as a 500 mm mechanical vernier caliper.

Are there calipers that display fractional measurements?

Yes. Selected digital calipers provide inch, metric, and fractional reading formats.

Which options support measurement-data transfer?

Selected models offer data output, USB output, SPC/USB output, or integrated wireless transmission.
