Dial Pressure & Vacuum Gauges

Dial pressure gauges provide an analog reference for monitoring pressure in compatible systems. They are used by maintenance, equipment, shop, and commercial teams for routine operating checks, inspections, equipment setup, and panel-mounted pressure observation. The represented options include 2-1/2 in. dial gauges with dual PSI and bar scales, along with panel-flange and center-back formats for installed equipment.

Product Display:
Helpful Buying Guide

Choose a dial gauge for your pressure-monitoring setup

Compare the displayed pressure range, installation format, and dial-reading needs before selecting a gauge. The products represented here use a 2-1/2 in. dial and commonly pair a dual PSI and bar scale with a glycerin-filled design, stainless steel case, and built-in snubber.

Visual Guide

Popular examples in this category

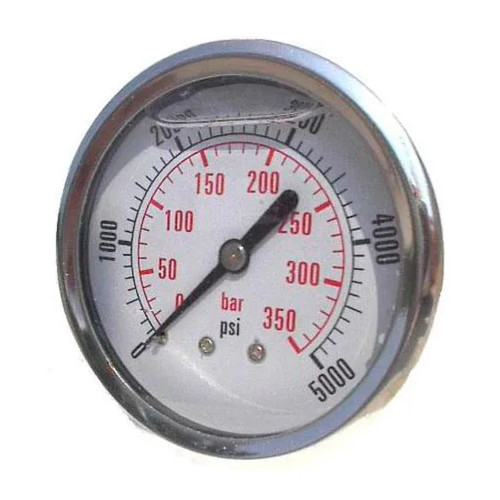

2-1/2 in. Glycerin-Filled Pressure Gauge, 1000 PSI2-1/2 in. Glycerin-Filled Pressure Gauge, 1000 PSIWBB5371782-1/2 in. Glycerin-Filled Panel Flange Pressure Gauge - Model CF1P-210E2-1/2 in. Glycerin-Filled Panel Flange Pressure Gauge - Model CF1P-210EWBB5369882-1/2 in. Glycerin-Filled Panel-Flange Pressure Gauge, 4,000 PSI2-1/2 in. Glycerin-Filled Panel-Flange Pressure Gauge, 4,000 PSIWBB5369912-1/2 in. Glycerin-Filled Center-Back Pressure Gauge, 60 PSI2-1/2 in. Glycerin-Filled Center-Back Pressure Gauge, 60 PSIWBB537038
Use Cases

Routine pressure checks

Use an analog dial gauge to observe pressure during routine equipment checks, system operation, inspection, and setup in compatible systems.

How to Choose

Start with range and mounting

Match the gauge to the required pressure range, then choose a standard, panel-flange, or center-back format based on the intended installation.

Applications

Maintenance and installed equipment

These gauges are represented for maintenance, equipment, shop, commercial, and panel-mounted pressure-monitoring applications.

Additional Info

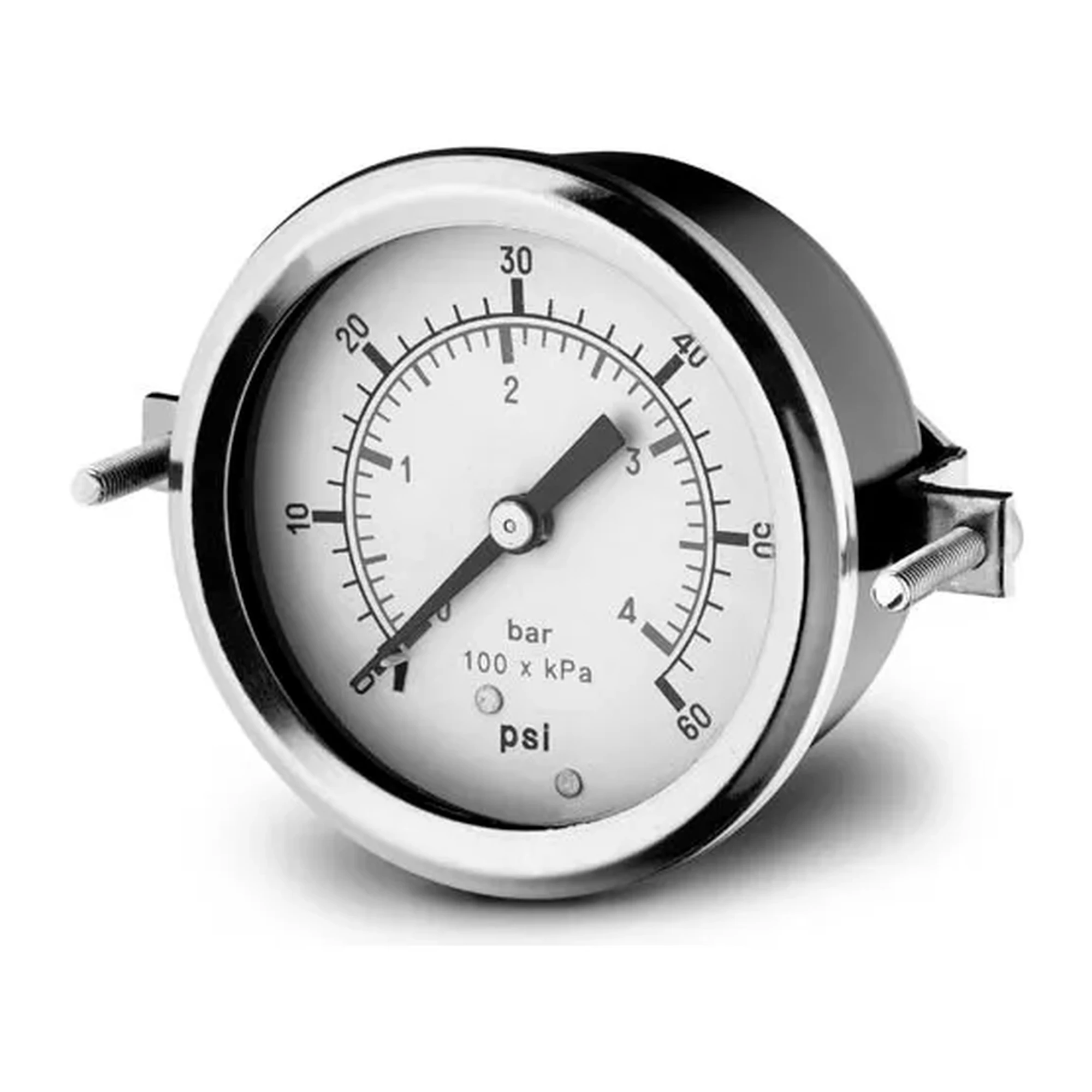

Read in PSI or bar

Dual-scale dials allow pressure to be referenced in PSI or bar. Glycerin-filled construction, stainless steel cases, and built-in snubbers are common across the represented products.

2-1/2 in.Common dial size

The represented gauges use a 2-1/2 in. dial.

60–4,000 PSIStated range options

Represented stated ranges include 60, 100, 1,000, and 4,000 PSI.

2 unitsDial readings

Dual-scale models show pressure in PSI and bar.

3 formatsGauge styles

Standard, panel-flange, and center-back formats are represented.

Comparison Guide

Compare the represented gauge formats

Use installation format and stated pressure range to focus your selection. Confirm the individual product listing for the specific configuration needed.

Gauge typeBest fit based on the summariesRepresented details
Standard dial pressure gaugeRoutine pressure monitoring in compatible systems2-1/2 in. dial; dual PSI and bar scale; glycerin-filled design; stainless steel case; built-in snubber

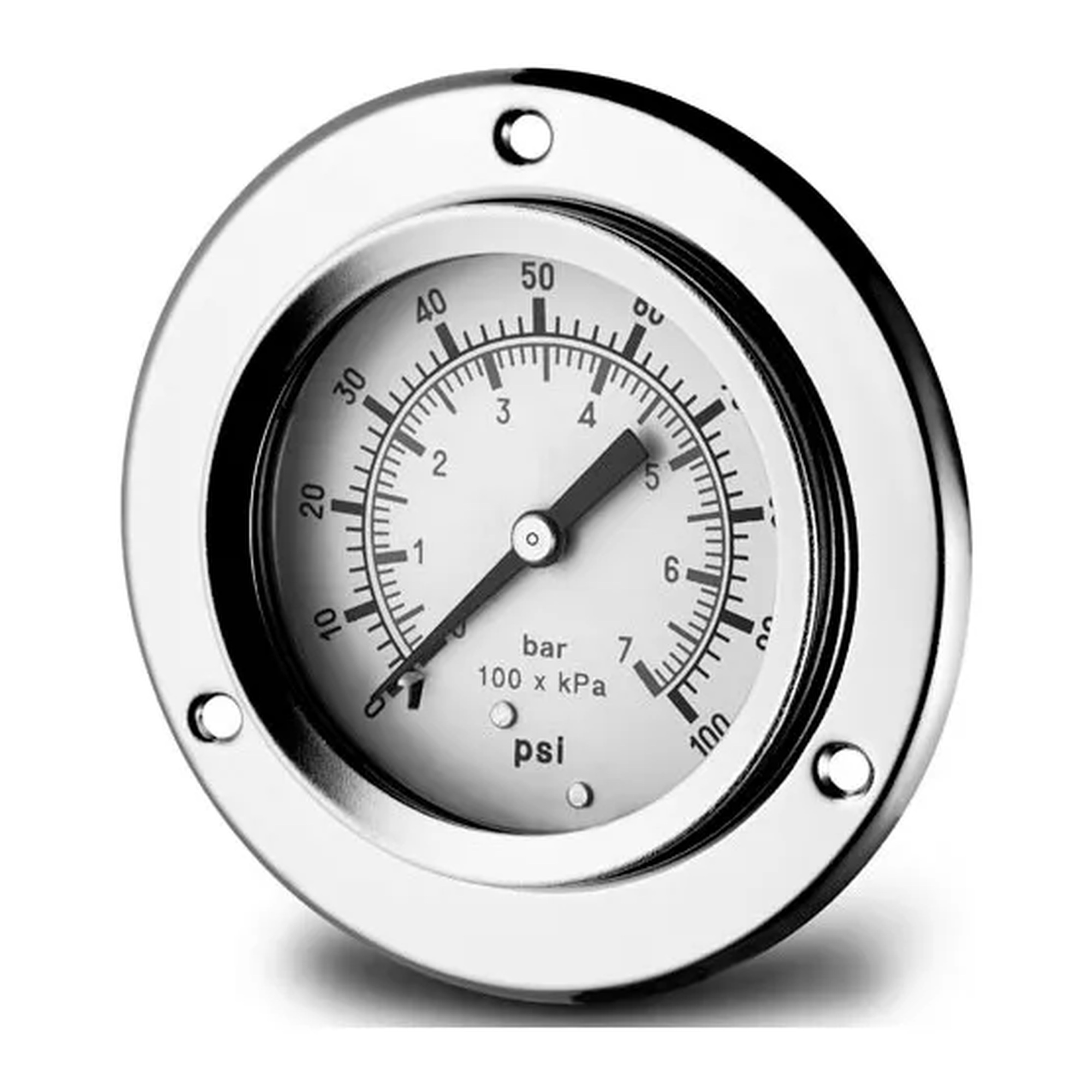

Panel-flange pressure gaugePanel-mounted equipment and installed systemsPanel-flange format; 2-1/2 in. dial; dual PSI and bar scale; glycerin-filled design
Center-back pressure gaugePanel or surface-mounted gauge placementCenter-back connection; represented 60 PSI and 100 PSI options; dual PSI and bar scale; glycerin-filled design
Planning Guide

Plan the right fit before choosing

Plan the measurement range

Select a range that matches the system being monitored

The represented gauges include stated 60 PSI, 100 PSI, 1,000 PSI, and 4,000 PSI options. Review the pressure range required for the compatible system before narrowing the selection.

  • 60 PSI options are represented for lower-range pressure monitoring.
  • 100 PSI is represented in a center-back gauge.
  • 1,000 PSI and 4,000 PSI options are represented for higher-range readings.
Plan the installation format

Choose a gauge style for the mounting arrangement

Gauge formats represented in this category include standard dial gauges, panel-flange gauges, and center-back gauges. Panel-flange products support panel-mounted installation, while center-back products are described for panel or surface-mounted placement.

  • Panel-flange gauges support panel-mounted setups.
  • Center-back gauges support panel or surface-mounted placement.
  • Standard dial gauges provide an analog pressure-display option for compatible systems.
Compare shared gauge features

Consider the dial and construction details

Many represented products have a 2-1/2 in. dial, dual PSI and bar scale, glycerin-filled construction, stainless steel case, and built-in snubber. Select listings also specify a phosphor bronze Bourdon tube as the pressure-sensing element.

  • Dual scales support readings in PSI or bar.
  • Glycerin-filled designs are represented across the range.
  • Stainless steel cases and built-in snubbers are common listed features.
FAQ

Common questions before buying

What pressure ranges are represented?

The supplied summaries include gauges with stated 60 PSI, 100 PSI, 1,000 PSI, and 4,000 PSI ranges.

Can these gauges be read in both PSI and bar?

Yes. The represented products list dual PSI and bar scales.

Which gauges are intended for panel mounting?

Panel-flange gauges support panel-mounted installation. Center-back gauges are also described for panel or surface-mounted placement.

What features are common among the represented gauges?

Common listed features include a 2-1/2 in. dial, glycerin-filled construction, a stainless steel case, and a built-in snubber. Select products also list a phosphor bronze Bourdon tube.

!
