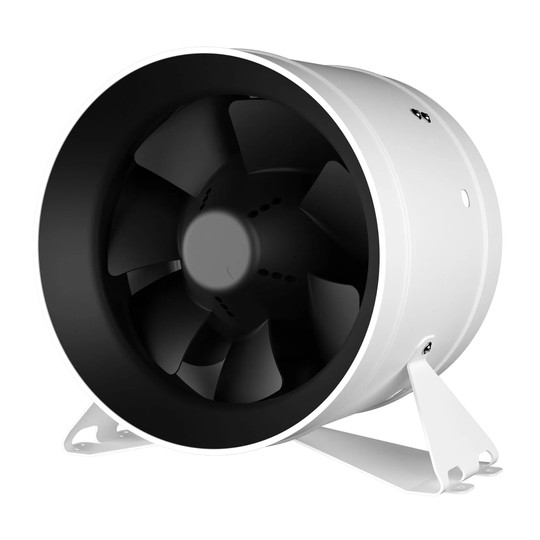

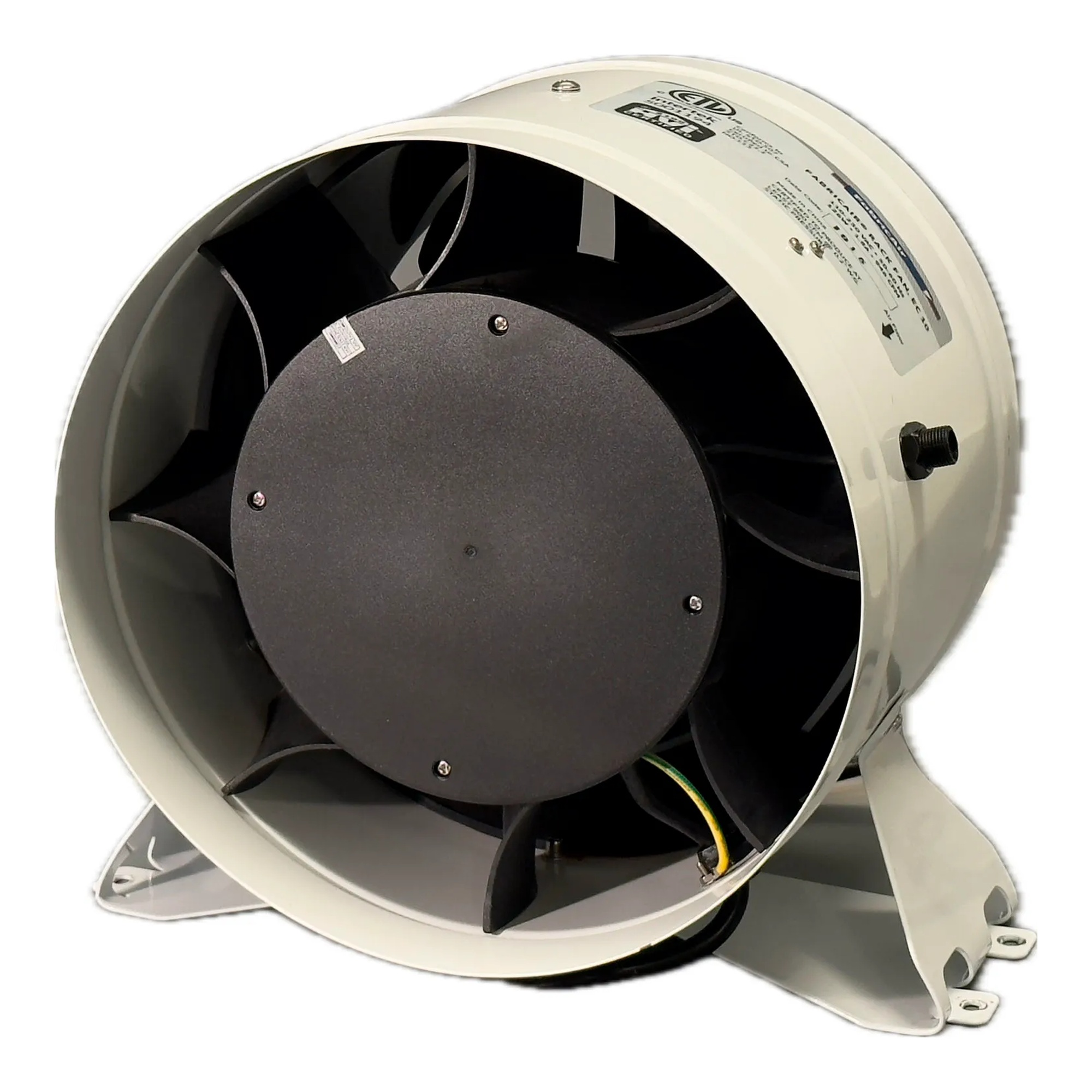

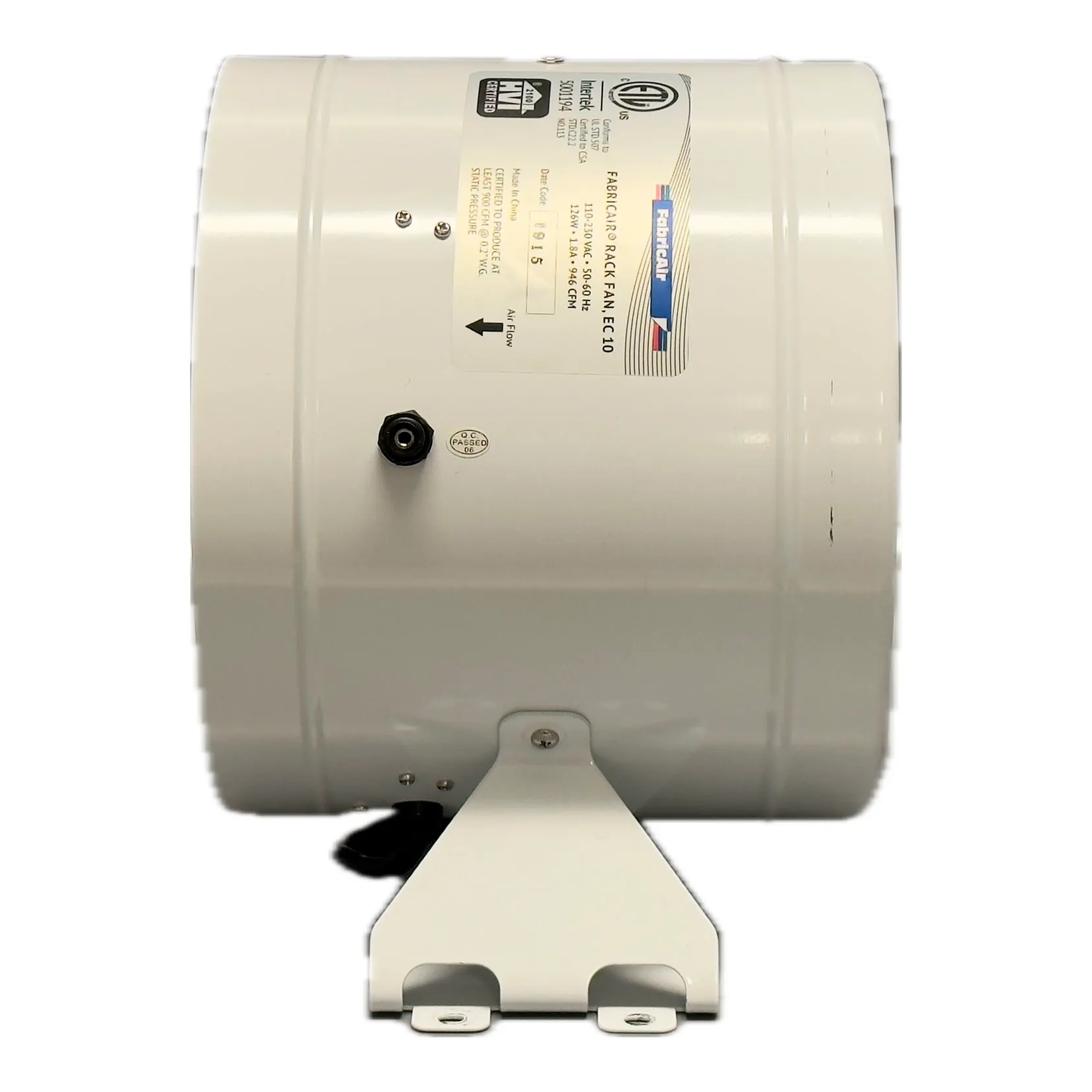

10-Inch Variable-Speed Duct Fan with Digital Controller

This 10-inch duct fan is designed for growers, facility teams, and other users who need adjustable airflow through ventilation ducting. Its variable-speed operation helps users manage air movement in enclosed spaces.

The fan delivers up to 946 CFM and uses a 126-watt brushless EC motor with a dual-jet impeller. An eight-speed digital controller with a numeric display adjusts speed from 0% to 100% and supports 110–240V power through a switchable IEC socket power cord. It is compatible with digital and analog external controllers using PWM or 0–10V signals and includes a 3.5 mm TRRS connection wire. The cold-rolled steel housing measures 7-7/8 in. L x 11-3/8 in. W x 10-7/8 in. H.

Key Features:

• Adjustable digital control: Eight speed settings and a numeric display provide clear, convenient airflow adjustment.
• 946 CFM airflow: Provides substantial air movement for ducted ventilation setups.

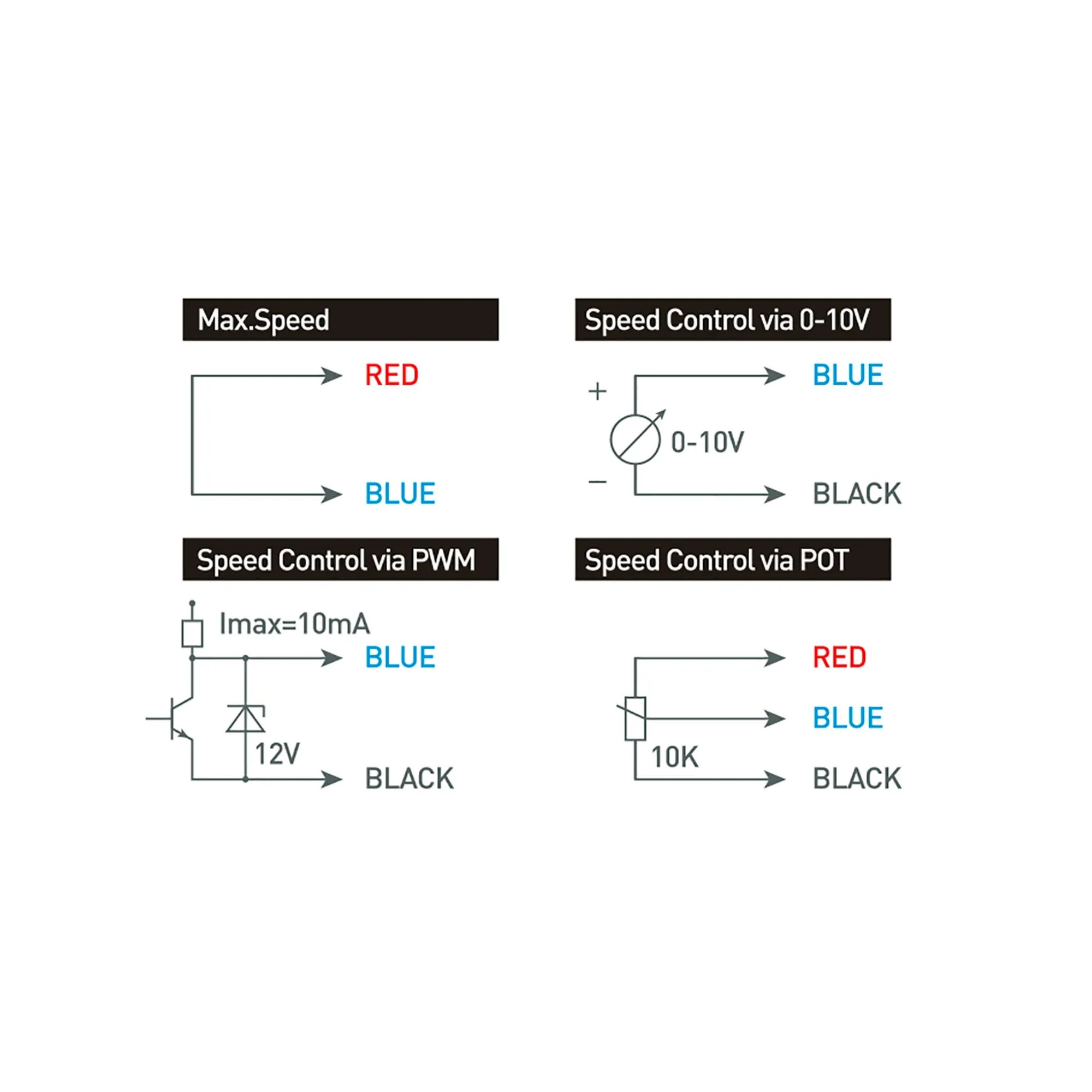

• External-controller compatibility: Works with PWM and 0–10V digital or analog control signals for system integration.
• Cold-rolled steel housing: Helps protect the fan assembly in demanding environments.
• Removable inlet guard: Allows access to the inlet area when needed.
• Installation hardware included: Screws and anchors support installation in compact locations.

A practical choice for ducted ventilation systems requiring adjustable airflow, external-control compatibility, and a compact 10-inch fan format.
