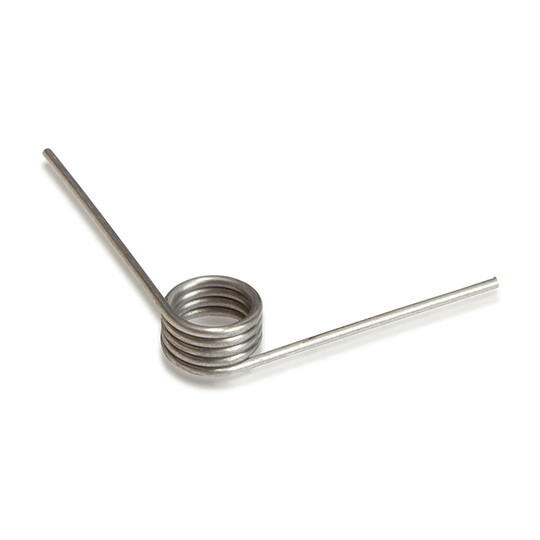

This 90° torsion spring is for maintenance and assembly teams that need resistance to externally applied torque as spring ends are rotated. It can be used over an arbor or mandrel for support.
The spring has a 0.16 in. coil diameter and 0.017 in. wire diameter. It is wound left and made of 302 stainless steel. One torsion spring is included.
Key Features:
Choose this left-wound 90° torsion spring when your application calls for a 0.16 in. coil diameter, 0.017 in. wire diameter, and support over an arbor or mandrel.
| Country of Origin: | Made in USA |
| Material: | 302 Stainless Steel |
| Product Type: | Torsion Springs |
| Quantity Included: | 1 |
| Manufacturer Part Number: | GT1709309-SL |
| Calculated Length @ Torque (Approx.): | 0.072 |
| Coil Outside Diameter: | 0.16" |
| Leg Length: | 0.5 in |
| Max Rod Size: | 0.093" |
| Rate: | 0.0013 lbs |
| Torque @ 1/2 Leg Length: | 0.117 |
| Wire Diameter: | 0.017 in |
| Brand: | Gardner Spring |
| Deflection Angle: | 90° |
| Direction of Wind: | Left |
| Manufacturers Part Number: | GT1709309-SL |
| Number of Coils: | 3.25 |
| Package Quantity: | 1 |
| Width: | 98.00 in |
| Height: | 259.00 in |
| Depth: | 1.76 in |
No additional information available.
