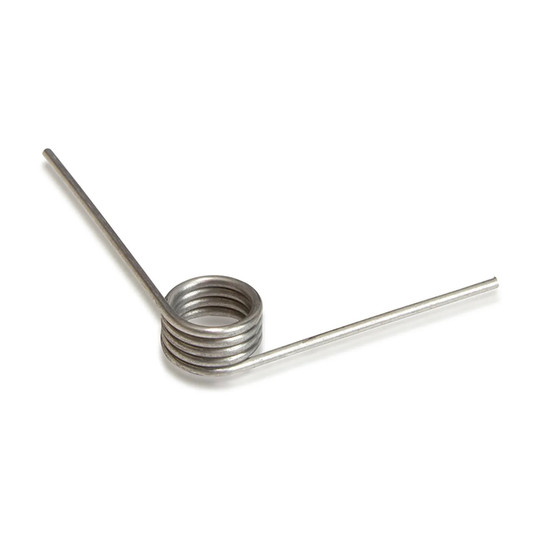

This 90° torsion spring is for maintenance and assembly users who need resistance to externally applied torque. As its ends rotate through angular deflection, it provides spring resistance and can be used over an arbor or mandrel for support.
The spring has a 0.235-inch coil diameter and 0.025-inch wire diameter. It is left-wound and made from 302 stainless steel.
Key Features:
Choose this left-wound 90° torsion spring when your application calls for a 0.235-inch coil diameter, 0.025-inch wire diameter, and support over an arbor or mandrel.
| Country of Origin: | Made in USA |
| Material: | 302 Stainless Steel |
| Product Type: | Torsion Springs |
| Quantity Included: | 1 |
| Manufacturer Part Number: | GT2514009-SL |
| Calculated Length @ Torque (Approx.): | 0.106 |
| Coil Outside Diameter: | 0.235" |
| Leg Length: | 0.75 in |
| Max Rod Size: | 0.14" |
| Rate: | 0.0044 lbs |
| Torque @ 1/2 Leg Length: | 0.392 |
| Wire Diameter: | 0.025 in |
| Brand: | Gardner Spring |
| Deflection Angle: | 90° |
| Direction of Wind: | Left |
| Manufacturers Part Number: | GT2514009-SL |
| Number of Coils: | 3.25 |
| Package Quantity: | 1 |
| Width: | 175.00 in |
| Height: | 224.00 in |
| Depth: | 1.72 in |
