Assemblies

Turnbuckle assemblies are adjustable fastening components used in commercial hardware and maintenance work to make tension, positioning, and connection adjustments in compatible assemblies. This selection includes jaw-to-jaw, jaw-and-eye, and stub-to-stub configurations for matching required connection styles and threaded components.

Product Display:
Helpful Buying Guide

Choose the Right Turnbuckle Assembly

Compare the connection style first, then confirm the listed thread size, length, and construction material against the requirements of the compatible hardware assembly. The available options include matching jaw ends, a jaw-and-eye combination, and stub-end configurations in several listed sizes.

Visual Guide

Popular examples in this category

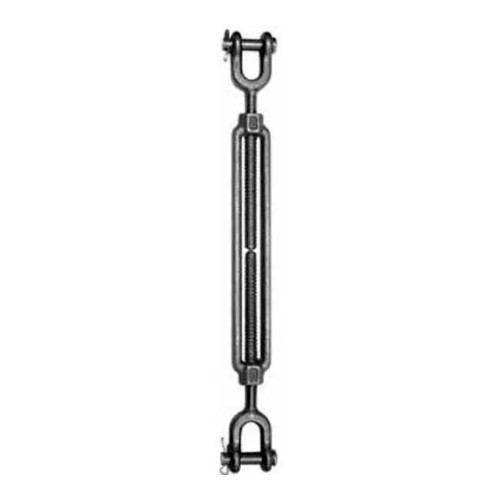

Jaw-to-Jaw Carbon Steel Turnbuckle Assembly, 1/2-13 x 19-3/4 in.Jaw-to-Jaw Carbon Steel Turnbuckle Assembly, 1/2-13 x 19-3/4 in.WBB1979978Carbon Steel Stub-to-Stub Turnbuckle Assembly, 3/4-10 x 16 in.Carbon Steel Stub-to-Stub Turnbuckle Assembly, 3/4-10 x 16 in.WBB1980002Carbon Steel Stub-to-Stub Turnbuckle Assembly, 3/4-10 x 22 in.Carbon Steel Stub-to-Stub Turnbuckle Assembly, 3/4-10 x 22 in.WBB1980004Stub-and-Stub Turnbuckle Assembly, 5/8-11 x 21 in.Stub-and-Stub Turnbuckle Assembly, 5/8-11 x 21 in.WBB1980033
Use Cases

Adjustable connections for hardware assemblies

These turnbuckle assemblies provide an adjustable connection for compatible fastening and threaded hardware setups. They are suited to commercial purchasing, maintenance, tensioning, positioning, and assembly work where the stated end style is required.

How to Choose

Match ends, threads, length, and material

Start with the required end configuration: jaw-to-jaw, jaw and eye, or stub-to-stub. Then verify the listed thread designation and length, such as 3/8-16 x 11-7/8 in. or 1-8 x 30 in., before selecting carbon steel, galvanized carbon steel, or 316 stainless steel construction.

Applications

Compatible threaded and fastening setups

Jaw ends provide jaw-style connection points, while a jaw-and-eye model provides two distinct attachment styles. Stub-to-stub models are intended for compatible threaded assembly connections and are available in several thread sizes and lengths.

Additional Information

Review construction and finish details

Available construction details include drop-forged carbon steel, galvanized carbon steel, 316 stainless steel, self-colored carbon steel, and mild steel or mild carbon steel stub ends on specified models. Some models are listed as single assemblies.

3End-style groups

Jaw-to-jaw, jaw and eye, and stub-end configurations are represented.

5Listed thread sizes

Options include 3/8-16, 1/2-13, 5/8-11, 3/4-10, and 1-8.

11-7/8 to 30 in.Listed length range

The represented assemblies span listed lengths from 11-7/8 in. through 30 in.

3Construction choices

Selections include carbon steel, galvanized carbon steel, and 316 stainless steel.

Comparison Guide

Compare Turnbuckle Assembly Types

Use the end configuration as a starting point, then check the size and construction details on the individual assembly.

Assembly typeConnection configurationExamples represented

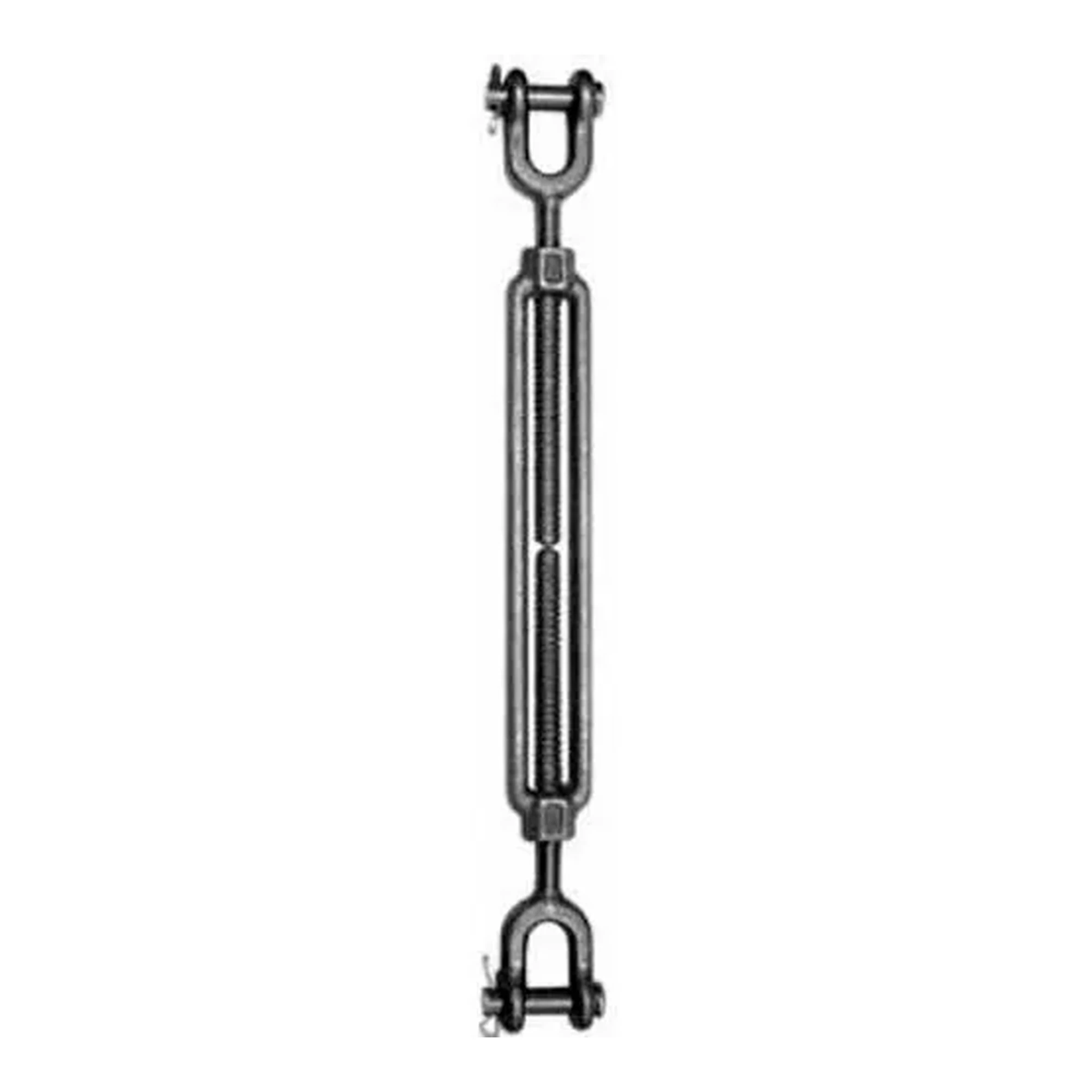

Jaw-to-jawJaw fittings at both ends1/2-13 x 12-3/8 in. and 1/2-13 x 19-3/4 in. options in specified constructions
Jaw and eyeA jaw connection on one end and an eye connection on the other3/8-16 x 11-7/8 in. galvanized, drop-forged carbon steel option

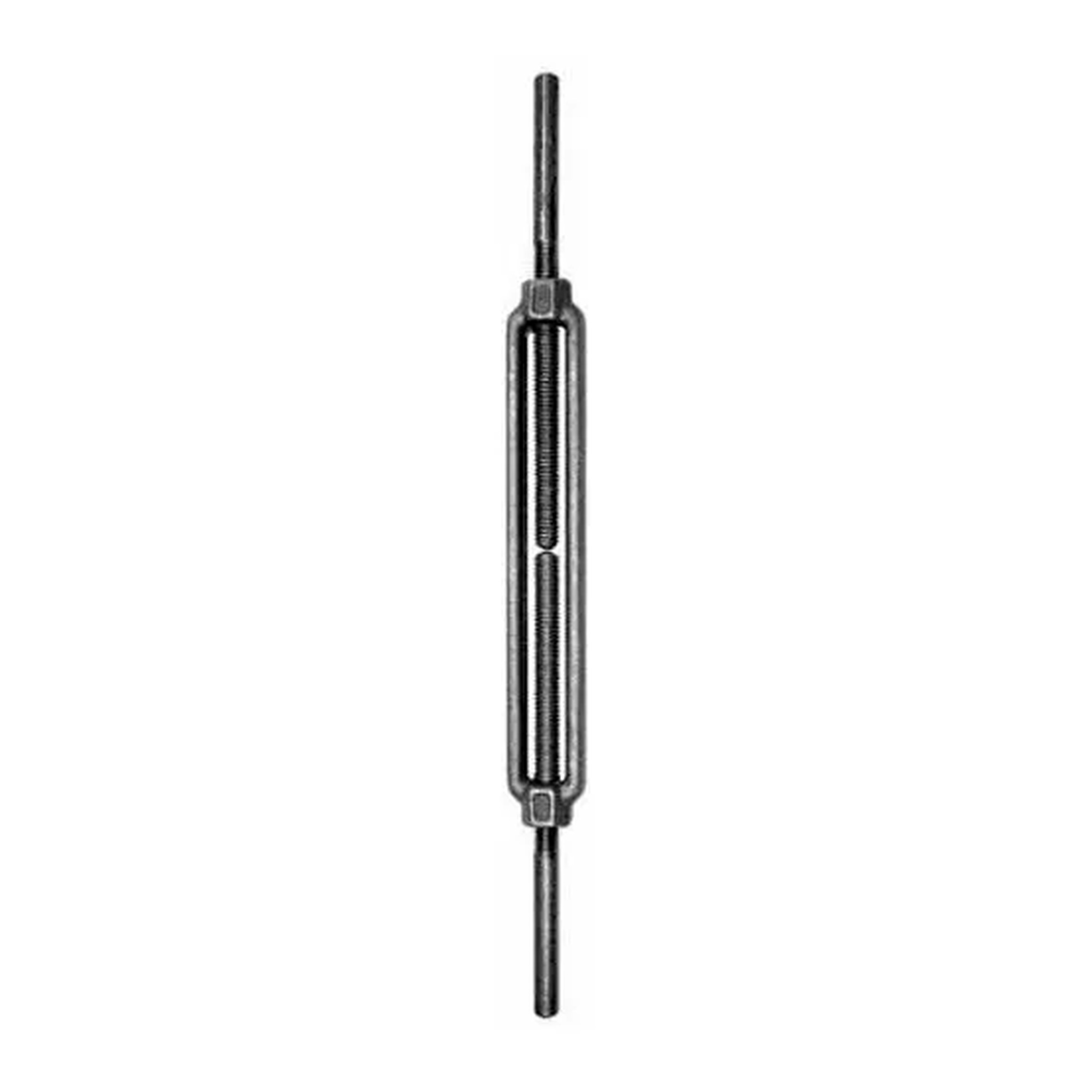

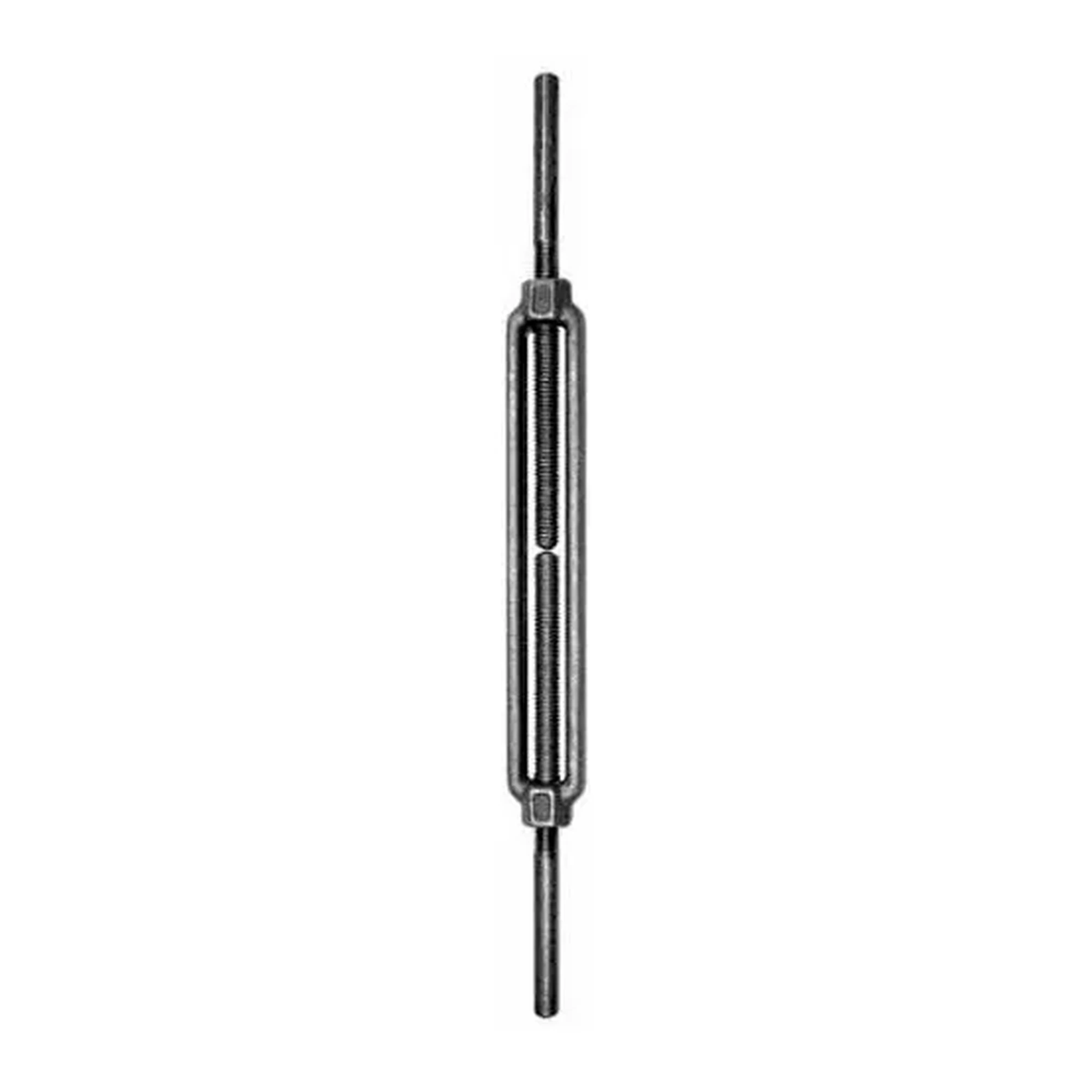

Stub-to-stubStub ends for compatible threaded assembly connectionsSizes include 1/2-13 x 14 in., 5/8-11 x 15 in. and 21 in., 3/4-10 x 16 in. and 22 in., and 1-8 x 30 in.
Planning Guide

Plan the right fit before choosing

Step 1

Select the end configuration your assembly requires

The connection style is the primary distinction across these turnbuckle assemblies.

  • Choose jaw-to-jaw or jaw-and-jaw when jaw fittings are needed at both ends.
  • Choose jaw and eye when the installation requires a jaw connection at one end and an eye connection at the other.
  • Choose stub-to-stub, stub-and-stub, or stub-end configurations for compatible threaded assembly connections.
Step 2

Confirm the listed thread size and length

Match the assembly designation to the threaded components and specified size for the job. Available examples span multiple sizes and lengths.

  • Listed thread sizes include 3/8-16, 1/2-13, 5/8-11, 3/4-10, and 1-8.
  • Listed lengths include 11-7/8 in., 12-3/8 in., 14 in., 15 in., 16 in., 19-3/4 in., 21 in., 22 in., and 30 in.
  • Confirm both parts of the designation, rather than selecting by length or thread size alone.
Step 3

Compare material and finish options

Material and surface details vary by model and should be reviewed alongside the required configuration and size.

  • Carbon steel options include self-colored and drop-forged constructions.
  • Galvanized options include galvanized carbon steel assemblies and galvanized finishes on specified jaw-end models.
  • 316 stainless steel options are available in jaw-to-jaw and stub-to-stub configurations at listed sizes.
FAQ

Common questions before buying

What end configurations are available?

The represented assemblies include jaw-to-jaw, jaw and eye, and stub-to-stub or stub-end configurations.

Which thread sizes are represented?

Listed thread sizes include 3/8-16, 1/2-13, 5/8-11, 3/4-10, and 1-8.

Are galvanized turnbuckle assemblies available?

Yes. The selection includes galvanized carbon steel stub-end assemblies and specified galvanized jaw-to-jaw and jaw-and-eye models.

Is 316 stainless steel available?

Yes. Represented 316 stainless steel options include jaw-to-jaw and stub-to-stub turnbuckle assemblies in listed 1/2-13 sizes.

!
