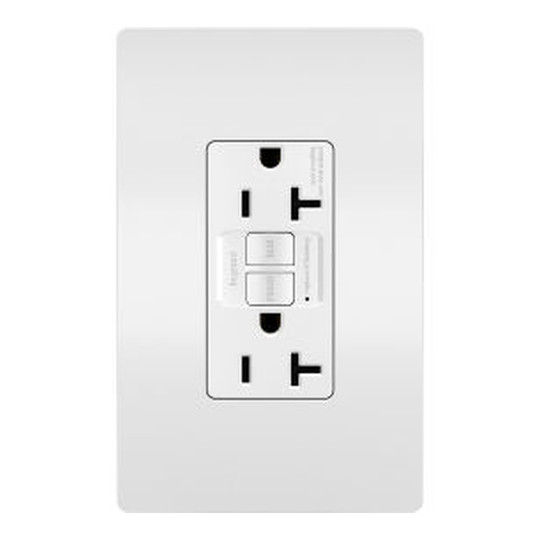

Self-Test 20A 125V White GFCI Receptacle

This 20A, 125V self-test GFCI receptacle is for electrical contractors and commercial facility teams that need ground-fault protection at the outlet. It automatically checks its protection function and provides local indication when the device should be replaced.

The white receptacle performs an automatic self-test every three seconds and uses a red LED trip indicator if it fails the test. It has 20A feed-through capacity to protect downstream receptacles, a 10 kA short-circuit rating, and line-load reversal protection that prevents power at the face and downstream receptacles when wired incorrectly. It accepts #10–#14 AWG solid or stranded copper wire using side wiring or internal screw-pressure-plate back wiring. Overall dimensions are 2.95 in. wide x 1.73 in. deep x 4.69 in. high.

Key Features:

• Automatic self-test: Checks operation every three seconds to help confirm the receptacle is ready to provide ground-fault protection.
• Red trip indicator: Flashes when the device fails its self-test, helping users identify a receptacle that should be replaced.
• Feed-through protection: Allows the receptacle to protect downstream receptacles on the circuit.
• Miswire protection: Prevents power at the receptacle face and downstream outlets when line and load are wired incorrectly.
• Flexible wiring options: Supports side wiring or back wiring with #10–#14 AWG solid or stranded copper conductors.
• Captive mounting screws: Keeps mounting screws with the device and wall plate to simplify installation.

Choose this white 20A GFCI receptacle for commercial installations requiring a 125V self-testing device with feed-through capability and local status indication.
